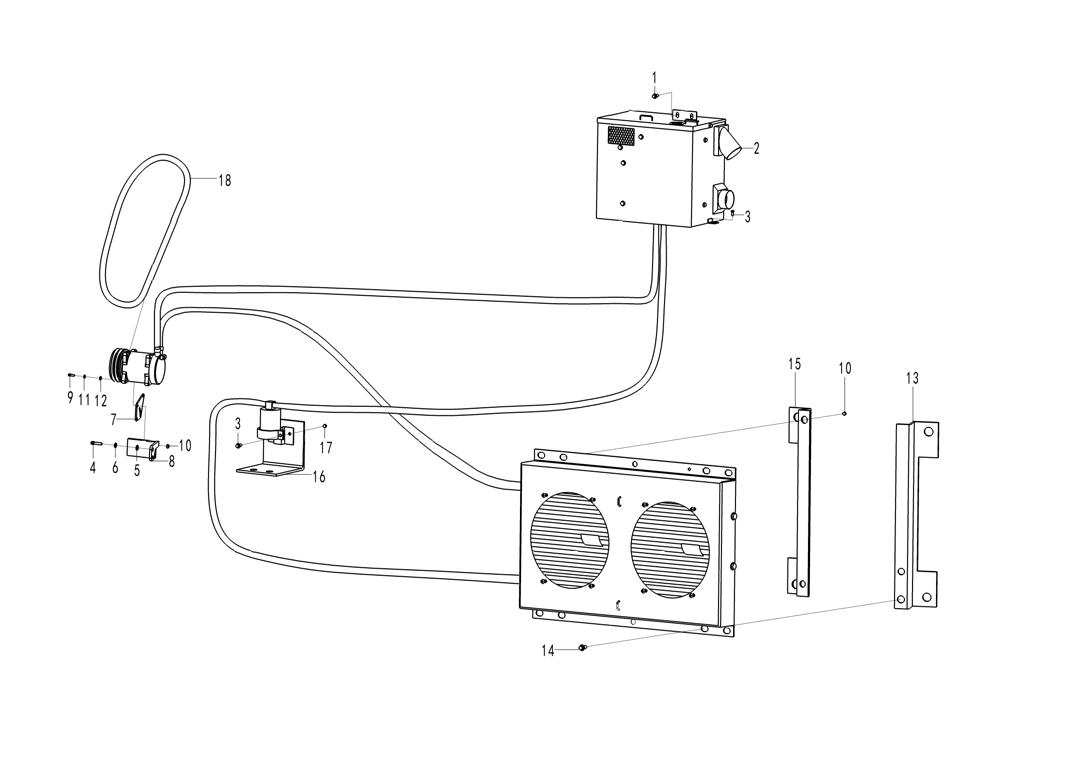

Air conditioner system LG936L

Key Part No. Description

Spare parts Y/N

Qty

Remarks

1

4011000461

螺栓GB16674-M8*16EpZn-8.8

Bolt

Y

4



2

4190001114

空调LG936D3

Air conditioning unit

Y

1



3

4011000154

螺栓GB16674-M6*20EpZn-8.8

Bolt

Y

3



4

4011001114

螺栓GB5782-M18*65EpZn-8.8

Screw

Y

2



5

4015000182

垫圈GB97.1-18EpZn-300HV

Washer

Y

2



6

4015000029

垫圈GB93-18-65Mn

Spring washer

Y

2



7

29350008112

托板

Bracket

Y

2



8

29350008951

压缩机支架

Compressor bracket

Y

1



9

4011000085

螺栓GB5783-M10*35EpZn-8.8

Bolt

Y

8



10

4013000007

螺母GB6170-M10EpZn-8

Nut

Y

12



11

4015000025

垫圈GB93-10-65Mn

Spring washer

Y

8



12

4015000162

垫圈GB97.1-10EpZn-300HV

Washer

Y

8



13

29350007801

前支板

Bracket

Y

1



14

4011000474

螺栓GB16674-M10*25EpZn-8.8

Bolt

Y

9



15

29350007791

后支板

Bracket

Y

1



16

29350007881

储液罐支架

Bracket

Y

1



17

4013000028

螺母GB6170-M6EpZn-8

Nut

Y

2



18

4110000501

皮带A17-480

Belt

Y

1
