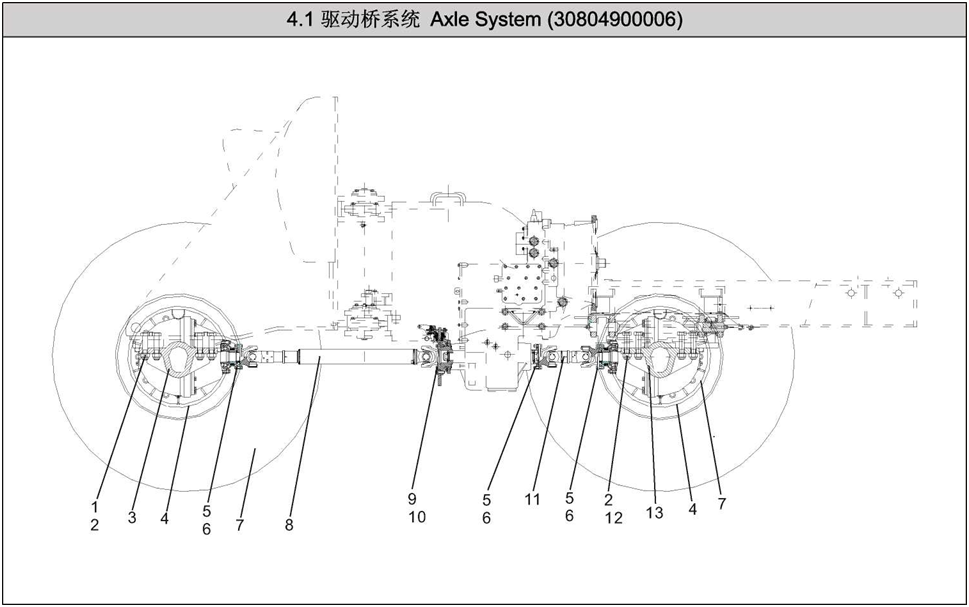

AxleSystem



Item



Coding



Part Description



Specification



Qty



Original NO./Remarks

1

60909010009

前桥螺栓

Front axle bolt

35

8

LG853.04-002/504003C

2

51342001319

螺母

Nut

M3〇x2-8

16

GB/T889.2

3

16480500170

前驱动桥总成

Front axle assembly



1

LGQ856ALII

4

60205000018

轮辋总成

Rim assembly



4

LG853.04.05/504500

5

51342000419

螺母

Nut

M12x1.5-8

24

GB/T889.2

6

51207111418

螺栓

Bolt

M12 x 1.5 x 40-10.9

24

GB/T5786

7

60205000012

轮胎

Tyre

23.5-25E-3/L-3

4

GB/T2980

8

17401000038

前传动轴总成

Front drive shaft assembly



1

CDM853.04.01

9

51401110107

垫圈

Washer

12

8

GB/T93

10

51207111218

螺栓

Bolt

M12 x 1.5 x 30-10.9

8

GB/T5786

11

17404000023

后传动轴总成

Rear drive shaft assembly



1

CDM853.04.02

12

60909010010

后桥螺栓

Rear axle bolt

35

8

LG853.04-003/404003D

13

16480505140

后驱动桥总成

Rear axle assembly



1

LG853.04.04N
