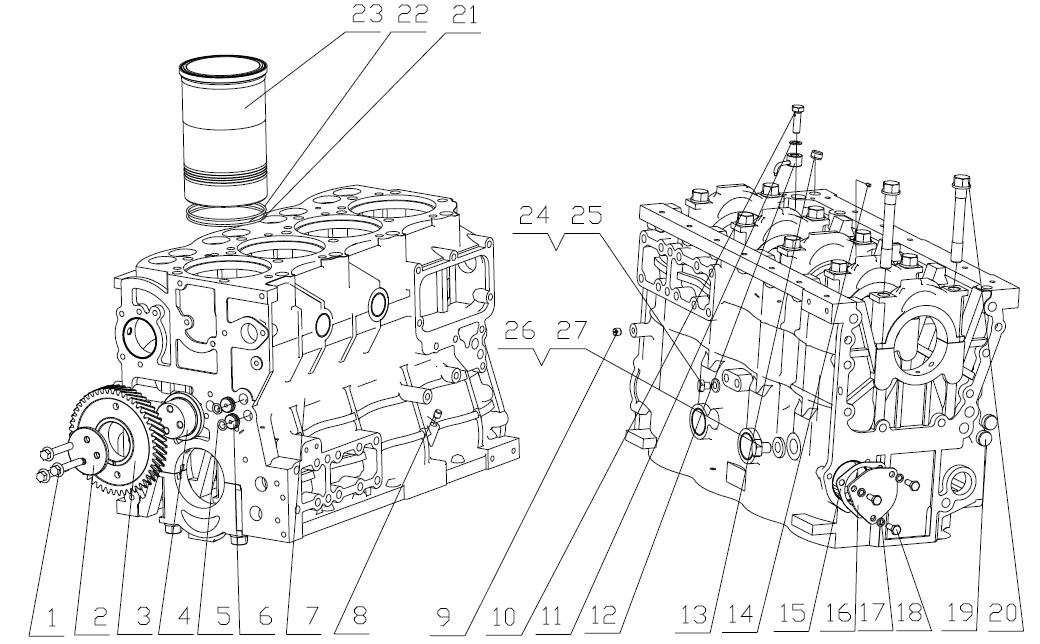

CYLINDER BLOCK ASSEMBLY D7019-1002000/10 LG918

2

4110000560128

正时惰齿轮挡板D30-1002054

TIMING IDLE GEAR PLATE D30-1002054

Y

1

3

4110000560126

正时惰齿轮D30-1002051

TIMING IDLE GEAR D30-1002051

Y

1

4

4110000560127

惰齿轮轴D30-1002052

IDLE GEAR SHAFT D30-1002052

Y

1

5

4110000560337

O 形圈2.65×16 YC208-B01600F

O-RING 2.65X16 YC208-B01600F

N

2

6

4110000560054

主油道密封塞6105Q-1002067

MAIN OIL GALLERY SEAL PLUG 6105Q-1002067

Y

2

7

4110000560119

气缸体部件D2000-1002170

CYLINDER BLOCK PART D2000-1002170

N

1

8

4110000560053

铝堵6105Q-1002022

ALUMINUM BLOCKAGE 6105Q-1002022

Y

1

9

4110000560328

开槽锥形螺塞NPT1/8 Q61101

OPEN GROOVE TAPERED SCREW PLUG NPT1/8

Q61101

N

1

10

4110000560027

过油螺栓430-1002162B

HOLLOW BOLT FOR OIL 430-1002162B

Y

4

11

4110000560028

垫圈430-1002163

WASHER 430-1002163

Y

4

12

4110000560138

喷嘴组件D30-1002740

NOZZLE PARTS D30-1002740

Y

4

13

4110000560132

油道堵塞D30-1002068A

OIL GALLERY BLOCKAGE D30-1002068A

Y

1

14

4110000560344

停用-销4×8 YC24-B0408

PIN 4X8 YC24-B0408

N

2

15

4110000560130

凸轮轴端盖垫片D30-1002062A

CAMSHAFT END COVER GASKET D30-1002062A

Y

1

16

4110000560129

凸轮轴端盖D30-1002061

CAMSHAFT END COVER D30-1002061

Y

1

17

4110000560317

停用-垫圈8 Q40308

LOCK WASHER 8 Q40308

N

3

18

4110000560254

螺栓 M8X20 Q150B0820

BOLT M8X20 Q150B0820

N

3

20

4110000560017

主轴承盖螺栓330-10020212A

MAIN BEARING COVER BOLT 330-10020212A

N

10

21

4110000560099

气缸套封水圈A3000-1002063B

CYLINDER LINER SEAL WATER RING A3000-1002063B

N

4

22

4110000560098

气缸套封水圈A3000-1002063

CYLINDER LINER SEAL WATER RING A3000-1002063

N

4

23

4110000560131

气缸套D30-1002064B

CYLINDER LINER D30-1002064B

Y

4

24

4110000560133

过油螺塞D30-1002071

HOLLOW BOLT FOR OIL D30-1002071

Y

1

25

4110000560300

垫圈12 Q40112T4F

WASHER 12 Q40112T4F

N

1

26

4110000560036

回油螺塞530-1002027

OIL RETURN BOLT 530-1002027

Y

1

27

4110000560230

复合式密封垫圈 22Q/YC149-22

COMPOUND SEAL WASHER22 Q/YC149-22

N

1

28

4110000560134

气缸体组件D30-1002114C*

CYLINDER BLOCK PART D30-1002114C*

Y

1
