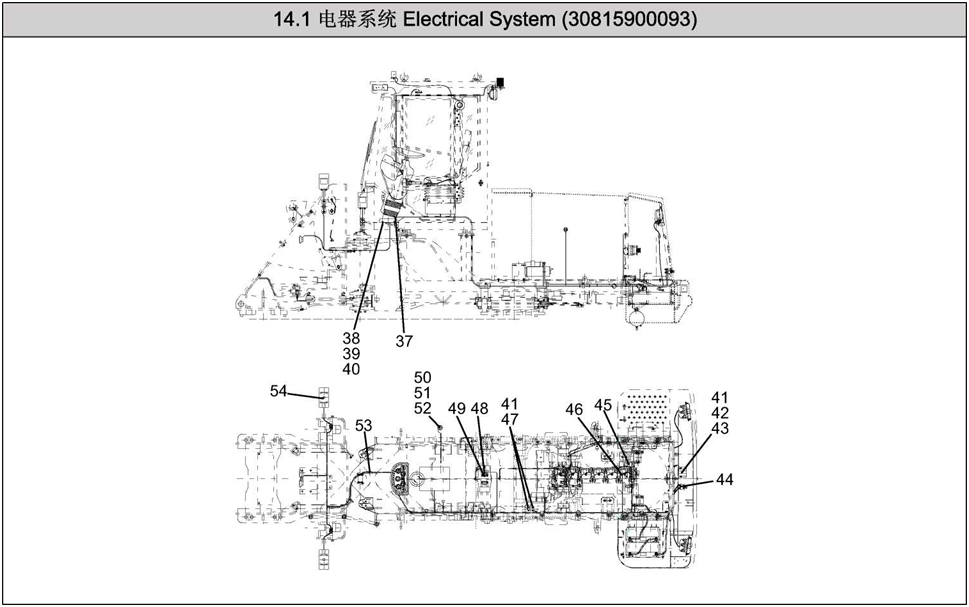

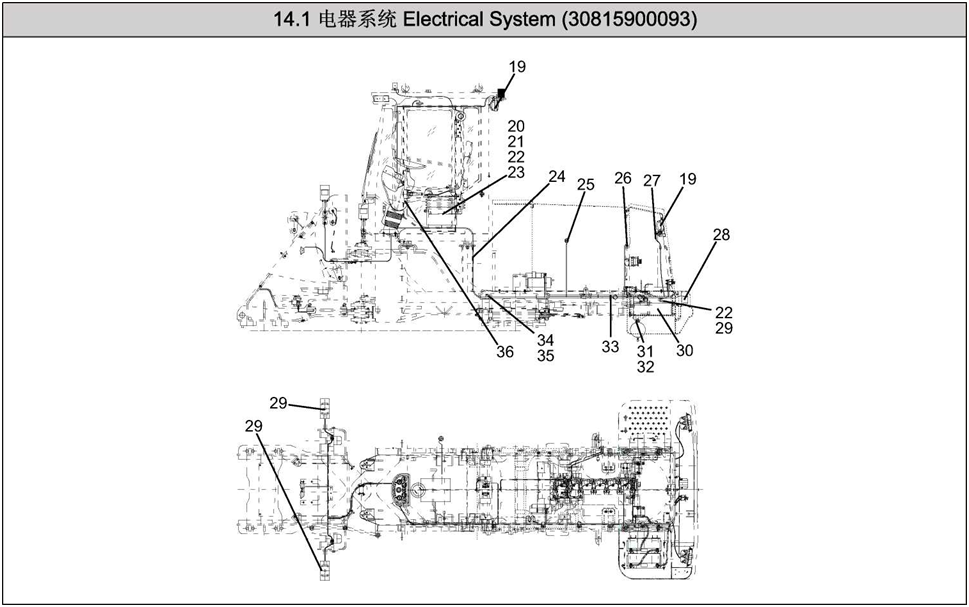

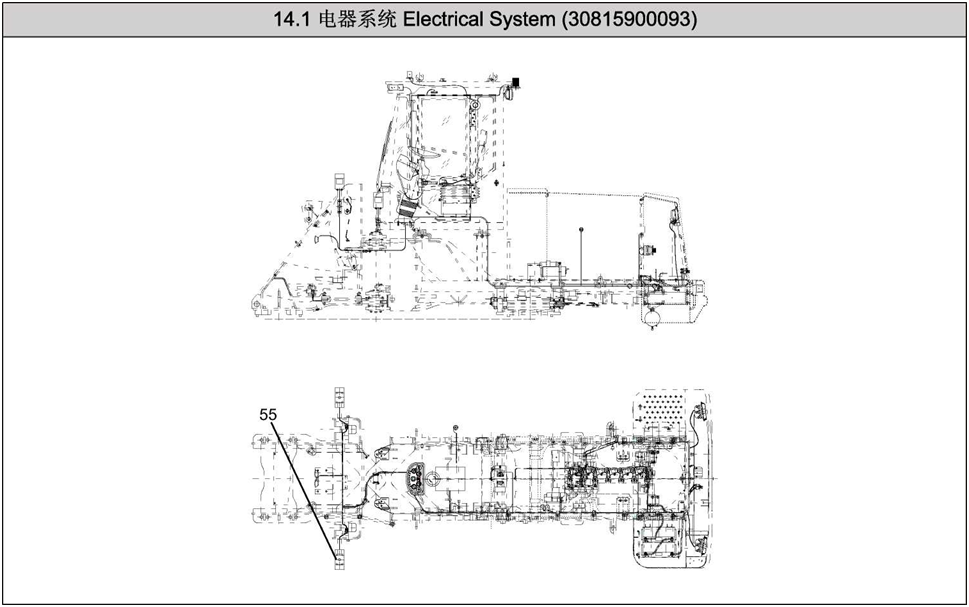

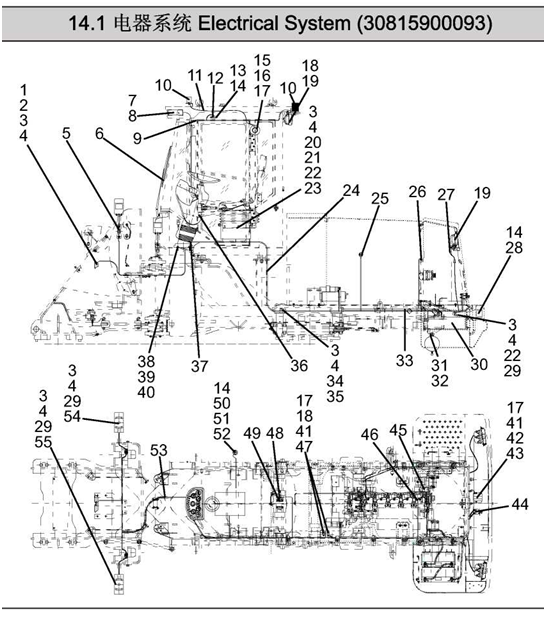

ElectricalSystem
|
Item |
Coding |
ElectricalSystem Part Description |
Specification |
Qty |
Original NO./Remarks |
|
|
1 |
60401050020 |
电喇叭总成 |
Electrical horn assembly |
DL50D-24 |
1 |
LG853.15.09 |
|
2 |
51204090914 |
螺栓 |
Bolt |
M8 x 16-8.8 |
2 |
GB/T5783 |
|
3 |
51401090107 |
垫圈 |
Washer |
8 |
24 |
GB/T93 |
|
4 |
51421090115 |
垫圈 |
Washer |
8 |
28 |
GB/T97.1 |
|
5 |
60404010505 |
前车架线束 |
Front frame harness |
1 |
CDM855E.15.01 |
|
|
6 |
60401050023 |
雨刮器总成 |
Wiper assembly |
2D2531 |
1 |
LG856.15.22/550x700/XD206 |
|
7 |
60402050257 |
前转向灯 |
Front steering lamp |
2 |
LG855Dm.15.21 |
|
|
8 |
60402050258 |
前工作灯 |
Front work lamp |
2 |
LG855Dm.15.22 |
|
|
9 |
60404010487 |
驾驶室线束 |
Cab harness |
1 |
CDM853.15m.02 |
|
|
10 |
60402050039 |
旋转警示灯 |
Warning lamp |
2 |
CDM835E.15IV.48/LTD141 |
|
|
11 |
60404010548 |
警示灯线束 |
Warning lamp harness |
1 |
CDM835EI.15I.09 |
|
|
12 |
60402050137 |
吸顶灯 |
Rectangle ceiling lamp |
ND-2A |
1 |
LG853BII.15.25 |
|
13 |
51166450411 |
自攻螺钉 |
Taperscrew |
ST4.8 x 19 |
10 |
GB/T845 |
|
14 |
51421070115 |
垫圈 |
Washer |
5 |
6 |
GB/T97.1 |
|
15 |
60401050021 |
电风扇 |
Fan |
SGF-03A |
1 |
LG855.15.45 |
|
16 |
51158190704 |
螺钉 |
Screw |
Мб x 25-4.8 |
3 |
GB/T818 |
|
17 |
51421080115 |
垫圈 |
Washer |
6 |
7 |
GB/T97.1 |
|
18 |
51401080107 |
垫圈 |
Washer |
6 |
5 |
GB/T93 |
|
19 |
60404011580 |
拖方大灯 |
Headlight |
WD105X105B |
4 |
LG850N.15I.12 |
|
20 |
60401080183 |
空调系统 |
Air conditioning system |
1 |
CDM853.15m.38 |
|
|
21 |
51204091214 |
螺栓 |
Bolt |
M8 x 30-8.8 |
4 |
GB/T5783 |
|
22 |
51307000919 |
螺母 |
Nut |
M8-8 |
8 |
GB/T6170 |
|
23 |
30815000125 |
暖风机装配总成 |
Heater assembly |
1 |
LG853.15.55 |
|
|
24 |
60404010488 |
后车架线束 |
Rearframeharness |
1 |
CDM853.15m.03 |
|
|
25 |
60402020021 |
机油压力传感器 |
Engine oil press sensor |
1 |
LG856.15.29 |
|
|
26 |
60404010513 |
发动机水温传感器 |
Engine water temperature sensor |
1 |
CDM853.15m.26 |
|
|
27 |
60404010343 |
机罩灯线束 |
Engine hood lamp harness |
1 |
LG853B.15N.04 |
|
|
28 |
60402050048 |
三色灯 |
Tri-colour lamp |
216A |
2 |
LG831G.15.17 |
|
29 |
51204091114 |
螺栓 |
Bolt |
M8 x 25-8.8 |
12 |
GB/T5783 |
|
30 |
60401030001 |
蓄电池 |
Battery |
N120(12V120AH) |
2 |
LG853.15.26 |
|
31 |
60405020055 |
低压报警开关 |
Low pressure warning switch |
SH361 |
1 |
LG853.15.27 |
|
32 |
56901001201 |
垫圈 |
Washer |
12 |
1 |
JB/T966 |
|
33 |
60404010491 |
电瓶线 |
Battery line |
1 |
CDM853.15m.05 |
|
|
34 |
51204091014 |
螺栓 |
Bolt |
M8 x 20-8.8 |
4 |
GB/T5783 |
|
35 |
30815100003 |
线夹 |
Wire clip |
4 |
LG853.01-005 |
|
|
36 |
60404010514 |
仪表台总成 |
Instrument harness |
1 |
CDM853.15III.60 |
|
|
37 |
60404010489 |
仪表线束 |
Instrument harness |
1 |
CDM853.15m.07 |
|
|
38 |
51204111414 |
螺栓 |
Bolt |
M12x 40-8.8 |
4 |
GB/T5783 |
|
39 |
51420110121 |
垫圈 |
Washer |
12 |
4 |
GB/T96.1 |
|
40 |
51401110107 |
垫圈 |
Washer |
12 |
4 |
GB/T93 |
|
41 |
51204081014 |
螺栓 |
Bolt |
M6 x 20-8.8 |
4 |
GB/T5783 |
|
42 |
51420080121 |
垫圈 |
Washer |
6 |
2 |
GB/T96.1 |
|
43 |
60980000164 |
倒车蜂鸣器 |
Back-up buzzer |
JWL-FM212/24V |
1 |
CDM855E.15N.20 |
|
44 |
60405020184 |
电源总开关 |
Main power switch |
1 |
LG853B.15.40 |
|
|
45 |
30815000104 |
空调压缩机支架 |
Compressor bracket |
1 |
LG855BII.15I.46 |
|
|
46 |
60404010490 |
发电机线束 |
Alternator harness |
1 |
CDM853.15m.08 |
|
|
47 |
60405030036 |
继电器 |
Relay |
HD4195B/024-1H9M1/F |
2 |
LG853B.15.17 |
|
48 |
60402020092 |
变速油压报警开关 |
Transmission oil press alarm switch |
NPT1/8 |
1 |
LG856.15.31 |
|
49 |
60402020022 |
变速油温传感器 |
Oil temperature sensor |
NPT3/8 |
1 |
LG856.15.30 |
|
50 |
60402020039 |
燃油油位传感器 |
Fuel oil level sensor |
1 |
LG856.15.32 |
|
|
51 |
51118170604 |
螺钉 |
Screw |
M5 x 16-5.8 |
4 |
GB/T67 |
|
52 |
51401070107 |
垫圈 |
Washer |
5 |
4 |
GB/T93 |
|
53 |
60980000190 |
尼龙扎带 |
Nylon strip |
ZD25〇x5 |
70 |
LG853.15-001 |
|
54 |
60402050191 |
前组合灯 |
Front combination lamp (right) |
HDF-02E |
1 |
LG833B.15I.10-01 |
|
55 |
60402050192 |
前组合灯 |
Front combined lamp (left) |
HDF-02E |
1 |
LG833B.15I.10-02 |
