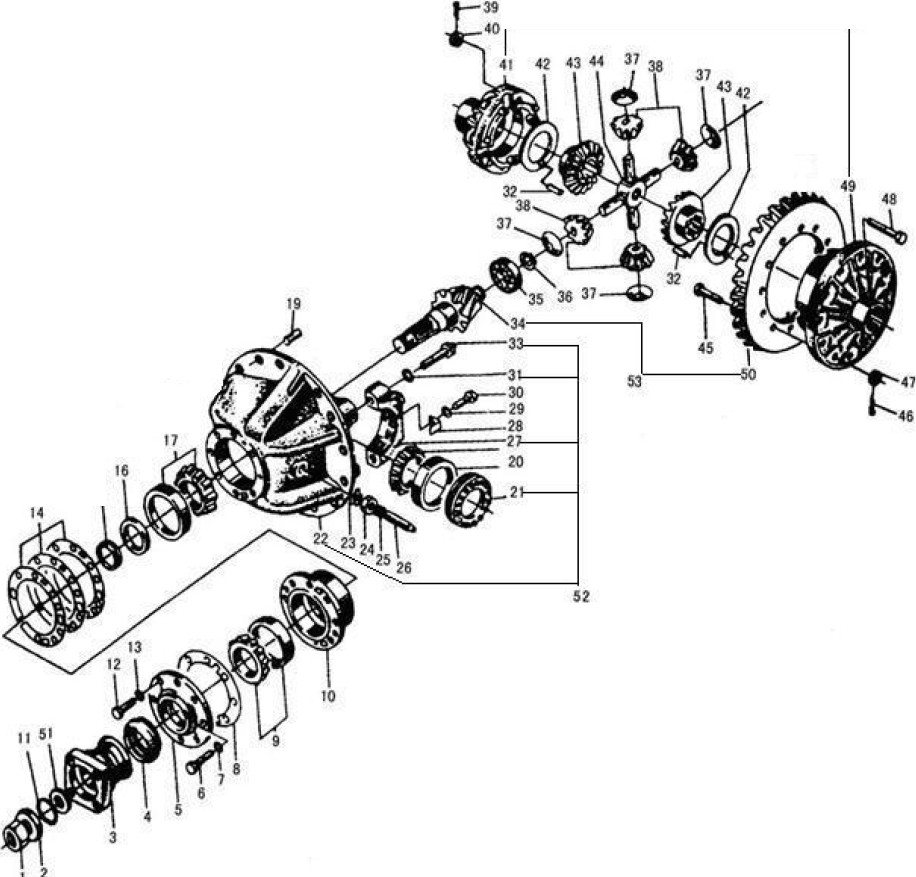

FRONT AXLE MAIN DRIVE ASSEMBLY LG933

2

3050900007

垫圈

WASHER

Y

1

3

2050900011

输入法兰

INPUT FLANGE

Y

1

4

4030000048

骨架油封HG4-692-SG70*95*12

FRAME OIL SEAL HG4-692-SG70*95*12

Y

1

5

3050900009

密封盖

SEALED COVER

Y

1

6

4011000067

螺栓GB5782-M14*55EpZn-8.8

BOLT GB5782-M14*55EpZn-8.8

N

7

7

4015000027

垫圈GB93-14-65Mn

WASHER GB93-14-65Mn

N

7

8

3050900172

垫片

SHIM

Y

1

9

4021000028

滚动轴承GB297-31310

BEARING GB297-31310

Y

1

10

3050900013

轴承套

BEARING HOLDER

Y

1

11

3050900008

0型密封圈

O-RING

Y

1

12

4011000186

螺栓GB5782-M12*55EpZn-8.8

BOLT GB5782-M12*55EpZn-8.8

N

1

13

4015000026

垫圈GB93-12-65Mn

WASHER GB93-12-65Mn

N

15

14

3050900011

调整垫片

ADJUST SHIM

Y

1

15

3050900030

垫片

SHIM

Y

1

16

3050900012

轴套

BOSS

Y

1

17

4021000029

滚动轴承GB297-31311

ROLLING BEARING GB297-31311

Y

1

18

kongbai

kongbai

N

0

19

4016000124

销GB119.2-10u8*30

PIN GB119.2-10u8*30

N

2

20

4021000035

滚动轴承GB297-32215

ROLLING BEARING GB297-32215

Y

2

21

3050900019

调整螺母

ADJUST BOLT

Y

2

22

3050900016

托架

CARRIER

N

1

23

29070000311

锁紧片

LOCKING LEAF

Y

1

24

4013000052

螺母GB6173-M27*2-05

NUT GB6173-M27*2-05

N

1

26

29070000301

止推螺栓

BOLT

Y

1

27

3050900023

轴承座

BEARING BLOCK

N

2

28

3050900024

锁紧片

STAY

Y

2

29

4015000025

垫圈GB93-10-65Mn

WASHER GB93-10-65Mn

N

2

30

4011000597

螺栓GB5786-M10*1*20EpZn-8.8

BOLT GB5786-M10*1*20EpZn-8.8

N

2

31

29070001301

垫圈

WASHER

Y

4

32

29070000461

固定销

PIN

Y

2

33

29090007971

螺栓

BOLT

Y

4

34

3050900055

主动螺旋伞齿轮

ACTIVE SPIRAL BEVEL GEAR

N

1

35

4021000026

滚动轴承GB283-NUP2306

ROLLING BEARING GB283-NUP2306

Y

1

36

4015000019

挡圈GB894.1-30-65Mn

CHECK RING GB894.1-30-65Mn

N

1

37

3050900017

锥齿轮垫片

ANGLE GEAR SHIM

Y

4

38

3050900018

锥齿轮

ANGLE GEAR

Y

4

39

29090007961

垫圈

WASHER

Y

8

40

4013000197

螺母GB6176-M14*1.5-10

NUT GB6176-M14*1.5-10

N

8

41

3050900020

差速器左壳

LEFT SHELL OF DIFFERENTIAL MECHANISM

N

1

42

3050900022

半轴齿轮垫片

SHIM OF HALF AXLE GEAR

Y

2

43

3050900021

半轴齿轮

HALF AXLE GEAR

Y

2

44

3050900026

十字轴

CROSS AXLE

Y

1

45

29070010851

螺栓

BOLT

Y

12

46

29070009511

垫圈

WASHER

N

12

47

4013000198

螺母GB6176-M16*1.5-10

NUT GB6176-M16*1.5-10

N

12

48

29090007951

螺栓

BOLT

Y

8

50

3050900056

大螺旋伞齿轮

BIG SPIRAL BEVEL GEAR

N

1

51

3050900032

挡圈

CHECK RING

Y

1

52

7300000287

托架总成

CARRIER ASSEMBLY

Y

1

53

3050900201

前螺旋伞齿轮

FRONT SPIRAL BEVEL GEAR

Y

1

54

3050900199

差速器左右壳

LEFT RINGHT SHELL OF DIFFERENTIAL MECHANISM

Y

1
