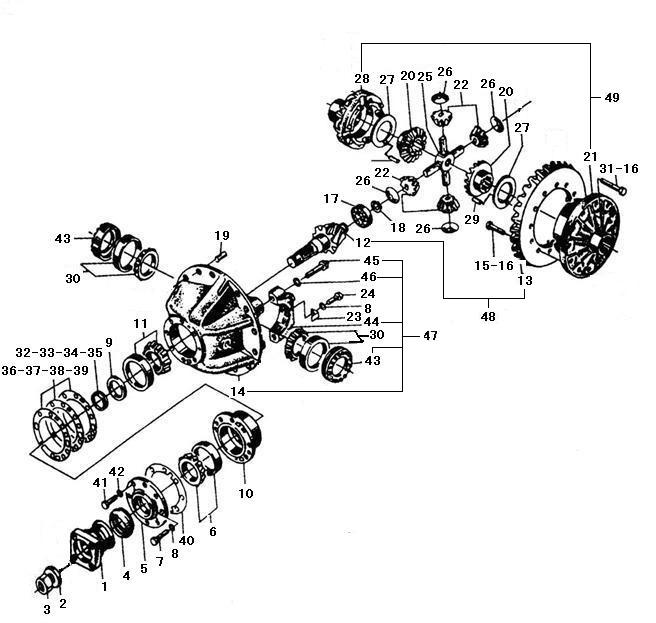

FRONT MAIN DRIVE ASSEMBLY LG918

Key Part No.   Description Spare parts Y/N Oty
1 29070010041   INPUT PLANGE Y 1

2

29070010521

垫圈

WASER

Y

1

3

4013000042

螺母GB6171-M24*2EpZn-8

NUT GB6171-M24*2EpZn-8

N

1

4

4030000537

旋转轴唇形密封圈GB9877.1-FB60*85*8D

LIP-TYPE PACKING GB9877.1-FB60*85*8D

Y

1

5

29070010071

密封盖

SEALING COVER

Y

1

6

4021000132

滚动轴承GB297-31309

BEARING GB297-31309

Y

1

7

4011000048

螺栓GB5782-M10*50EpZn-8.8

BOLT GB5782-M10*50EpZn-8.8

N

1

8

4015000025

垫圈GB93-10-65Mn

WASHER GB93-10-65Mn

N

3

9

29070010081

轴套

SHAFT SLEEVE

Y

1

10

29070010091

轴承套

BEARING SEAT

Y

1

11

4021000028

滚动轴承GB297-31310

BEARING GB297-31310

Y

1

12

29070010101

主动螺旋伞齿轮（左）

SPIRAL BEVEL GEAR PINION (LEFT)

N

1

13

29070010111

从动螺旋伞齿轮（右）

SPIRAL BEVEL GEAR SLAVE (RIGHT)

N

1

14

29070010311

托架

BEARER

N

1

15

4011000599

螺栓GB5786-M12*1.25*30EpZn-10.9

BOLT GB5786-M12*1.25*30EpZn-10.9

N

12

16

29070010131

垫圈

WASHER

N

20

17

4021000133

滚动轴承GB283-NUP2305

BEARING GB283-NUP2305

Y

1

18

4015000130

挡圈GB894.1-25-65Mn

RING SNAP GB894.1-25-65Mn

N

1
19 4016000124 GB119.2-10u8*30 PIN GB119.2-10u8*30 N 2

20

29070010141

半轴齿轮

AXLE SHAFT GEAR

Y

2

21

29070010151

差速器左壳

LEFT CASE DIFF

N

1

22

29070010161

锥齿轮

ANGEL GEAR

Y

4

23

3050900024

锁紧片

STAY

Y

2

24

4011000597

螺栓GB5786-M10*1*20EpZn-8.8

BOLT GB5786-M10*1*20EpZn-8.8

N

2

25

29070010171

十字轴

CROSS AXLE

Y

1

26

29070010181

锥齿轮垫片

ANGEL GEAR WASHER

Y

4

27

29070010191

半轴齿轮垫片

HALF AXLE GEAR WASHER

Y

2

28

29070010201

差速器右壳

RIGHT CASE DIFF

N

1

29

29070010211

固定销

FIXED PIN

Y

4

30

4021000134

滚动轴承GB297-32212

BEARING GB297-32212

Y

2

31

4011000699

螺栓GB5785-M12*1.25*50EpZn-10.9

BOLT GB5785-M12*1.25*50EpZn-10.9

N

8

32

29070010221

调整垫片

ADJUSTING SHIM

Y

2

33

29070010231

调整垫片

ADJUSTING SHIM

Y

2

34

29070010241

调整垫片

ADJUSTING SHIM

Y

3

35

29070010251

调整垫片

ADJUSTING SHIM

Y

3

36

29070010261

调整垫片

ADJUSTING SHIM

Y

1
37 29070010271   ADJUSTING SHIM Y 3

38

29070010281

调整垫片

ADJUSTING SHIM

Y

4

39

29070010291

调整垫片

ADJUSTING SHIM

Y

5

40

29070010301

密封垫片

SEAL WASHER

Y

1

41

4011000064

螺栓GB5782-M12*50EpZn-8.8

BOLT GB5782-M12*50EpZn-8.8

N

7

42

4015000026

垫圈GB93-12-65Mn

WASHER GB93-12-65Mn

N

7

43

29070010321

调整螺母

ADJUSTING NUT

Y

2

44

29070010331

轴承座

BEARING BLOCK

N

2

45

4011000231

螺栓GB5782-M16*70EpZn-8.8

BOLT GB5782-M16*70EpZn-8.8

N

4

46

29070009511

垫圈

WASHER

N

4

47

29070010121

托架总成

BEARER ASSEMBLY

Y

1

48

2190900117

前主从动螺旋伞齿轮

FRONT SPIRAL BEVEL GEAR PINION

Y

1

49

2190900118

差速器壳

CASE DIFF

Y

1
