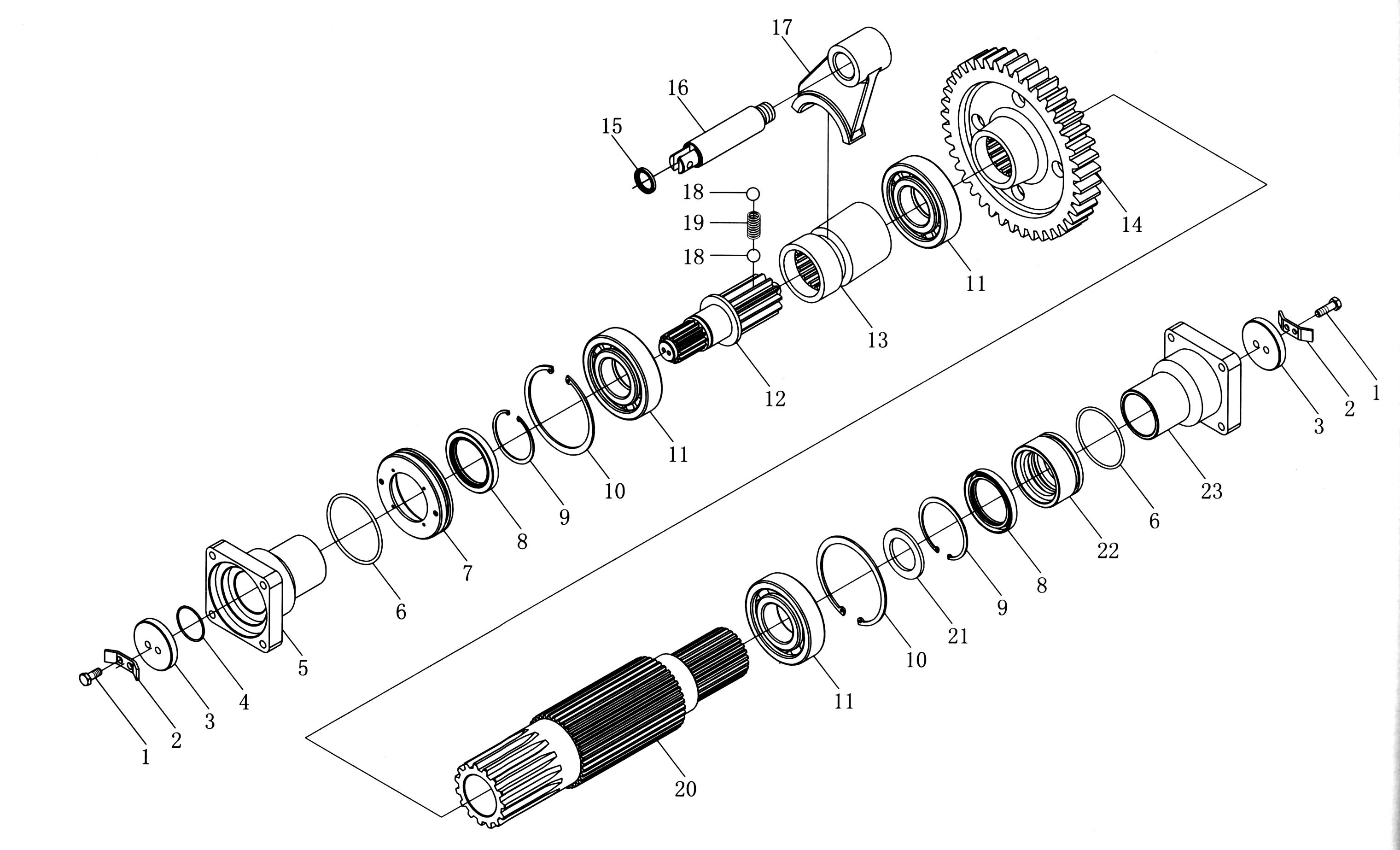

Gearbox (Ⅳ) 4th Shaft Assy YTO–ZL50D-II

No.

Parts Name

Drawing No.

Qty.

Assembly No.

1

Bolt M10×30

Lock piece

Pressuring board

O ring 52×5.7

Flange

O ring 103×5.7

Oil sealing seat

Framework oil sealing SG70×95×12

Retaining ring 95

Retaining ring 130

Ball bearing 312 (60×130×31)

Rear outlet shaft

Cover

Outlet shaft gear

Framework oil sealing SD25×40×10

Front & rear axle connecting pull rod

Front & rear axle connecting fork

Steel ball 10

Spring

Front outlet shaft assembly

Spacer

Oil sealing seat

Flange

GB 5783-89

4

ZL50TY.04.02

2

403302

2

ZL50TY.04.02

3

403303A

2

ZL50TY.04.02

4

403315

2

ZL50TY.04.02

5

403301B/X2/X3

3

ZL50TY.04.02

6

CB1235-76

1

ZL50TY.04.02

7

403304A

2

ZL50TY.04.02

8

JB2600-80

1

ZL50TY.04.02

9

GB 893.1-86

2

ZL50TY.04.02

10

GB 893.1-86

2

ZL50TY.04.02

11

GB 276-89

3

ZL50TY.04.02

12

403309B

1

ZL50TY.04.02

13

403310

1

ZL50TY.04.02

14

403311

1

ZL50TY.04.02

15

JB2600-80

1

ZL50TY.04.02

16

403306A

1

ZL50TY.04.02

17

403307

1

ZL50TY.04.02

18

GB 308-89

2

ZL50TY.04.02

19

403308

1

ZL50TY.04.02

20

403312B-313

1

ZL50TY.04.02

21

403305A

1

ZL50TY.04.02

22

403304A

1

ZL50TY.04.02

23

409109

1

ZL50TY.04.02
