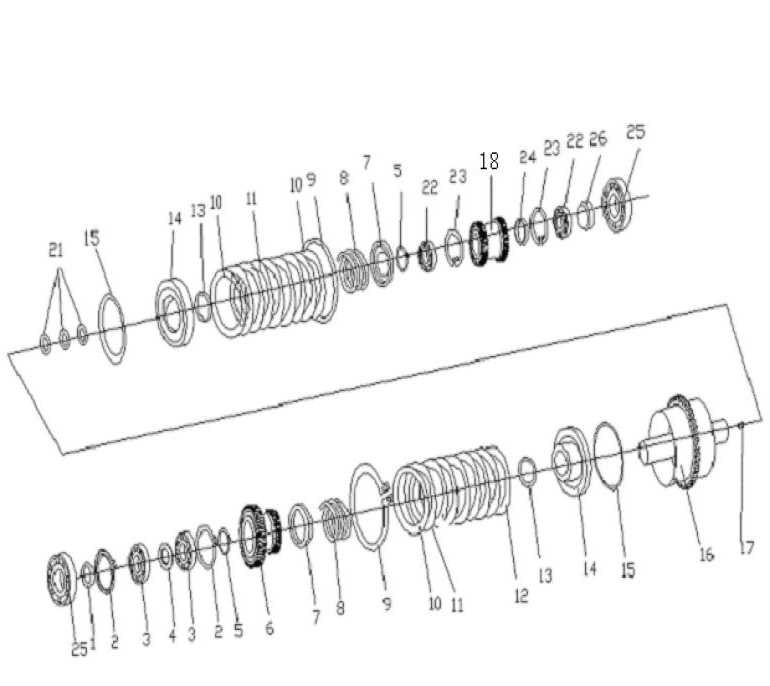

GO FORWARD LOW-END CLUTCH(370804) LG918

Key Part No.   Description Spare parts Y/N Oty
1 4110000218029 BD05-01012 SNAP RING BD05-01012 Y 1

2

4021000190

止动环GB305-80/86.6

SNAP RING GB305-80/86.6

N

2

3

4021000170

P轴承GB276-6208N

BEARING GB276-6208N

Y

2

4

4110000218028

挡圈BD05-01001

SNAP RING BD05-01001

Y

1

5

4015000046

挡圈GB894.1-50-65Mn

SNAP RING GB894.1-50-65Mn

N

2

6

4110000218016

齿轮BD05-01002

GEAR BD05-01002

Y

2

7

4110000218023

弹簧支承座BD05-01010

SPRING SEAT BD05-01010

Y

2

8

4110000218077

离合器弹簧BD05-01005

CLUTCH SPRING BD05-01005

Y

2

9

4015000300

挡圈GB893.1-150-65Mn

SNAP RING GB893.1-150-65Mn

N

2

10

4110000218078

离合器活塞压板BD05-01003

CLUTCH PISTONG PLATE BD05-01003

Y

2

11

4110000218036

垫板BD05-01004

FILLER BD05-01004

Y

8

12

4110000218095

磨擦片BD05-01300

WEARING PLATE BD05-01300

Y

8

13

4030000035

O形圈GB3452.1-53.0*5.30G

O-RING GB3452.1-53.0*5.30G

Y

2

14

4110000218068

活塞BD05-01101

PISTONG BD05-01101

Y

2

15

4110000218094

密封环BD05-01103

SEAL RING BD05-01103

Y

2

16

4110000218096

前进低档离合器壳体BD05-01200

GO FORWARD LOW-END CLUTCH SHELL BD05-01200

Y

1

17

4110000218085

停用-螺塞07043-00108

PLUG SCREW 07043-00108

Y

2

18

4110000218017

齿轮BD05-01006

GEAR BD05-01006

Y

1
19   kongbai kongbai N 0

20



kongbai

kongbai

N

0

21

4110000218093

密封环BD05-01008

SNAP RING BD05-01008

Y

3

22

4021000009

滚动轴承GB276-6008

BEARING GB276-6008

Y

2

23

4015000199

挡圈GB893.1-68-65Mn

SNAP RING GB893.1-68-65Mn

N

2

24

4110000218024

挡环BD05-01007

BAFFLE RING BD05-01007

Y

1

25

4021000021

滚动轴承GB276-6308

ROLLING BEARING GB276-6308

Y

2

26

4110000218025

挡环BD05-01009

BAFFLE RING BD05-01009

Y

1
