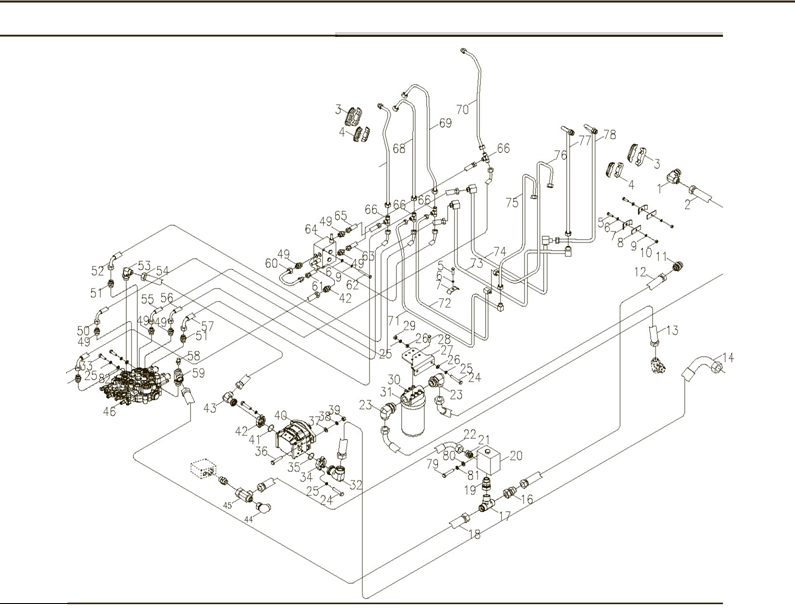

Implement Hydraulic System
|
Implement Hydraulic System |
|||||||
|
Parts number |
Part Description |
Specification |
Qty |
Remarks |
|||
|
I |
tem |
||||||
|
1 |
L1CH9-30-33OG |
Oil cooler outlet connector |
2 |
||||
|
2 |
20411-30T/20491-30T |
|
T-connector to oil cooler hose |
1 |
|||
|
*1T12*1500+RC |
|||||||
|
3 |
LG308.07-003 |
|
Rubber clamp |
4 |
|||
|
4 |
LG308.07-002 |
|
Rubber clamp |
4 |
|||
|
5 |
GB/T5783 |
Bolt |
M8×30 |
8 |
|||
|
6 |
GB/T97.1 |
Washer |
8 |
8 |
|||
|
7 |
LG308.07-004 |
Pipe clamp Ⅲ |
10 |
||||
|
8 |
LG308.07-006 |
|
Pipe clamp plate |
4 |
|||
|
9 |
GB/T93 |
Washer |
8 |
8 |
|||
|
10 |
GB/T6170 |
Nut |
M8 |
4 |
|||
|
11 |
L1CH-30-33 |
Connector |
1 |
||||
|
12 |
20411-30T*1T12*1050 |
Filter oil outlet hose |
1 |
||||
|
13 |
20411-30T*1T12*800+RC |
Oil cooler oil return hose |
1 |
LG307 |
|||
|
20411-30T/20441-30T*1T |
LG308/LG312 |
||||||
|
12*800+RC |
|||||||
|
14 |
20491-45T*1T20*1420/90° |
|
Gear pump oil inlet pipe |
1 |
|||
|
15 |
L1CH-45-42 |
|
Straight connector |
1 |
|||
|
16 |
L2C-30-36 |
Transition connector |
1 |
||||
|
17 |
20411-36T*1T16*1200 |
|
Filter oil inlet hose |
1 |
|||
|
18 |
L2C9-36 |
Transition connector |
1 |
||||
|
19 |
L2GC-16-36WD |
Transition connector |
1 |
||||
|
20 |
504.110605AF |
Spilling valve |
1 |
||||
|
21 |
L1CG-30-16WD |
Transition connector |
1 |
||||
|
22 |
20411-30T/20491-30T*1T12*800 |
|
Hose assembly |
1 |
|||
|
23 |
L1CO9-30-20OG |
Filter connector |
2 |
||||
|
24 |
GB/T5782-2000 |
Bolt |
M10×35 |
10 |
|||
|
25 |
GB/T97.1-2002 |
Washer |
10 |
14 |
|||
|
26 |
GB/T93-1987 |
Washer |
10 |
16 |
|||
|
27 |
LG308.07-005 |
Oil filter bracket |
1 |
||||
|
28 |
5/16-18UNC*5/8 |
Hexagon bolt |
6 |
||||
|
29 |
GB/T6170-2000 |
Nut |
M10 |
2 |
|||
|
30 |
926923 |
Sender |
1 |
||||
|
31 |
50AS-1 |
Oil filter |
1 |
||||
|
32 |
L1CFL9-45-20 |
|
90°bend flange connector |
1 |
|||
|
33 |
GB/T5782-2000 |
Bolt |
M10×25 |
2 |
|||
|
34 |
FL-20 |
Pump oil inlet flange |
1 |
||||
|
35 |
SAE J518 |
|
O-ring |
37.69×3.53 |
1 |
||
|
36 |
GB/T5782-2000 |
Bolt |
M12×60 |
2 |
|||
|
37 |
GB/T93-1987 |
Washer |
12 |
2 |
|||
|
38 |
GB/T97.1-2002 |
Washer |
12 |
2 |
|||
|
39 |
GB/T6170-2000 |
Nut |
M12 |
2 |
|||
|
40 |
P136-28 |
|
Implement pump |
1 |
LG307 |
||
|
P136-35 |
1 |
LG308/LG312 |
|||||
|
41 |
SAE J518 |
|
O-ring |
24.99×3.53-N90 |
1 |
||
|
42 |
FL-12 |
Pump oil outlet flange |
1 |
||||
|
43 |
L1CFL9-26-12L55 |
|
90°bend flange connector |
1 |
|||
|
44 |
L2C9-30 |
Transition connector |
2 |
||||
|
45 |
LCC-30W |
T-connector |
1 |
||||
|
46 |
AX31028-1 |
distribution valve |
1 |
||||
|
47 |
L1CO-22-10 |
|
Connector AⅠ |
2 |
|||
|
48 |
20411-22T/20491-22 |
Leveling valve oil channel A |
1 |
||||
|
T*2T08*330 |
|||||||
|
49 |
L1CO-18-10 |
|
Connector AⅡ |
6 |
|||
|
50 |
20491-18T*2T06*840/180° |
|
Hose AⅡ |
1 |
LG307 |
||
|
20491-18T*2T06*810/180° |
1 |
LG308/LG312 |
|||||
|
51 |
L1CO-22-12 |
Connector A Ⅲ |
2 |
||||
|
52 |
20411-22T/20491-22T |
|
Leveling valve A Ⅲ oil pipe |
1 |
|||
|
H62*2T08*700 |
|||||||
|
53 |
L1C09-26-12OG |
Distribution valve valve oil inlet connector |
1 |
||||
|
54 |
20411-26T*2T10*510+RC |
|
Distribution valve valve oil inlet hose |
1 |
|||
|
55 |
20491-18T*2T06*650/180° |
|
Leveling valve BⅠ oil pipe |
1 |
LG307 |
||
|
20491-18T*2T06*780/180° |
LG308/LG312 |
||||||
|
56 |
20491-18T*2T06*760/220° |
|
Hose BⅡ |
1 |
LG307 |
||
|
20491-18T*2T06*825/220° |
LG308/LG312 |
||||||
|
57 |
20411-18T/20491-18T |
|
Leveling valve outlet BⅢ oil channel |
1 |
|||
|
*2T06*480 |
|||||||
|
58 |
SMK20-9/16UNF-PE |
|
Manometry connector |
1 |
|||
|
59 |
LLOCO-12-36-06OG |
Transition connector group |
1 |
||||
|
60 |
LG308.07.52 |
Bend |
1 |
||||
|
61 |
20411-18T/20491-18T |
|
Lifting arm small chamber leveling oil |
1 |
LG307 |
||
|
*2T06*480 |
pipe |
||||||
|
20411-18T/20491-18T |
1 |
LG308/LG312 |
|||||
|
*2T06*550 |
|||||||
|
62 |
GB/T5782-2000 |
Bolt |
M8×80 |
2 |
|||
|
63 |
20411-18T/20491-18T |
|
Bucket big chamber leveling oil |
1 |
|||
|
*2T06*470 |
pipe |
||||||
|
64 |
T-2883-307 |
|
Leveling valve |
1 |
LG307 |
||
|
T-2883 |
LG308 |
||||||
|
T-2883-312 |
LG312 |
||||||
|
65 |
20411-18T*2T06*350 |
|
Bucket small chamber leveling oil |
1 |
LG307 |
||
|
20411-18T*2T06*330 |
pipe |
LG308/LG312 |
|||||
|
66 |
LAC-18 |
Bucket disfluence duplex fitting |
4 |
||||
|
67 |
LG307.07.43 |
|
Bucket small chamber hose Ⅰ |
1 |
LG307 |
||
|
LG308.07.43 |
LG308/LG312 |
||||||
|
68 |
LG308.07.40 |
|
Lift big chamber hose Ⅰ |
1 |
|||
|
69 |
LG308.07.44 |
|
Lift small chamber hoseⅠ |
1 |
|||
|
70 |
LG308.07.47 |
|
Bucket big chamber hose Ⅰ |
1 |
|||
|
71 |
LG308.07.41 |
|
Lift big chamber hose Ⅱ |
1 |
|||
|
72 |
LG308.07.45 |
|
Lift small chamber hose Ⅱ |
1 |
|||
|
73 |
LG308.07.48 |
|
Attachment A hoseⅠ |
1 |
|||
|
74 |
LG308.07.50 |
|
Attachment B hoseⅠ |
1 |
|||
|
75 |
LG308.07.42 |
|
Lift big chamber hose Ⅲ |
1 |
|||
|
76 |
LG308.07.46 |
|
Lift small chamber hose Ⅲ |
1 |
|||
|
77 |
LG308.07.49 |
|
Attachment A hose Ⅱ |
1 |
|||
|
78 |
LG308.07.51 |
|
Attachment B hose Ⅱ |
1 |
|||
|
79 |
GB/T5782-2000 |
M6X65 |
Bolt |
2 |
|||
|
80 |
GB/T97.1 |
6 |
Washer |
2 |
|||
|
81 |
GB/T93 |
6 |
Washer |
2 |
|||
|
82 |
GB/T96.1 |
10 |
Washer |
2 |
|||
