ImplementControl Assembly



Item



Coding

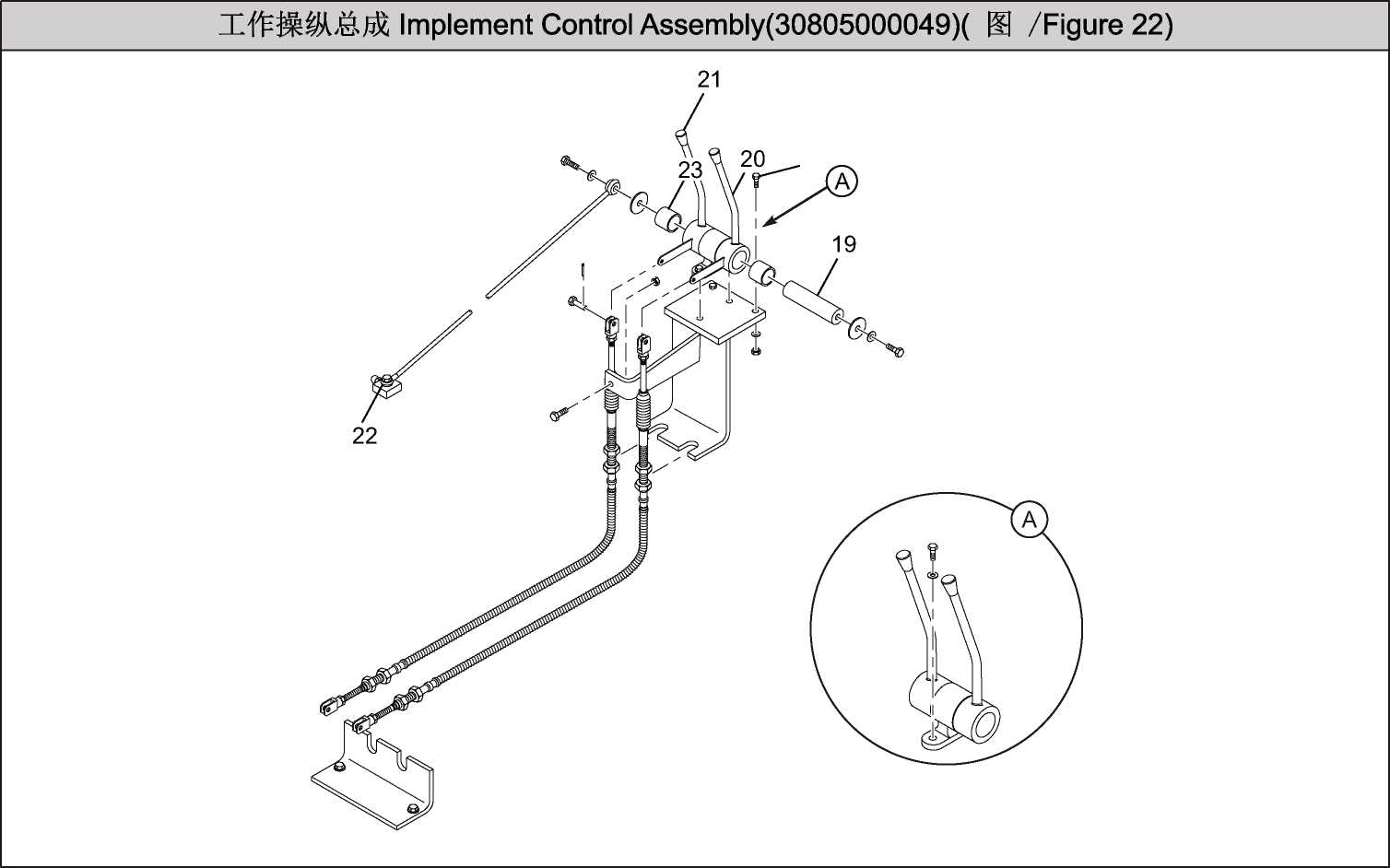

ImplementControl Assembly

Part Description



Specification



Qty



 Original NO./Remarks

1

30805100167

叉形接头

Yoke connector



2

LG853.05.02-001

2

30805100166

固定支板

Securing support board



1

LG853.05.02-002

3

30805000036

操纵软轴总成

Control tube assembly



2

LG853.05.02.01

4

51204101014

螺栓

Bolt

M1〇x 20-8.8

3

GB/T5783

5

56203000301

油杯

Oil cup

90oM10x1

1

JB/T7940.2

6

51204101214

螺母

Nut

M1〇x 30-8.8

3

GB/T5783

7

51307001019

垫圈

Washer

M10

3

GB/T6170

8

51421100119

固定架

Securing bracket

10

8

GB/T97.1

9

30805000016

通油螺栓

Bolt



1

LG853.05.02.02

10

60909010015

垫圈

Washer



1

LG853.05.02-012

11

60980000179

操纵杆注油管

Control lever oil filling hose

10

5

LG853.10.06-005

12

30893000550

螺栓

Bolt



1

LG30F.05 I.02.05

13

51204101314

垫圈

Washer

M1〇x 35-8.8

2

GB/T5783

14

51420100119

轴座

Shaft seat

10

4

GB/T96.1

15

30805101212

挡圈

Circlip



1

LG853.05.02-007

16

30805100223

垫圈

Washer



2

LG853.05.02-008

17

51401100107

螺栓

Bolt

10

8

GB/T93

18

30805101213

衬套

Bush



2

LG853.05.02-009

19

30805100225

Shaft



1

LG853.05.02-010

20

30805000018

操纵杆总成

Control level assembly



2

LG853.05.02.03

21

60980000178

方胶木球

Knob

M12x32

2

LG853.05.02-011

22

30893100787

通油螺栓

Bolt



1

LG853.10.06-001

23

30893100039

钢管焊合

Pipe weldment



1

LG853.05 11.02.01
