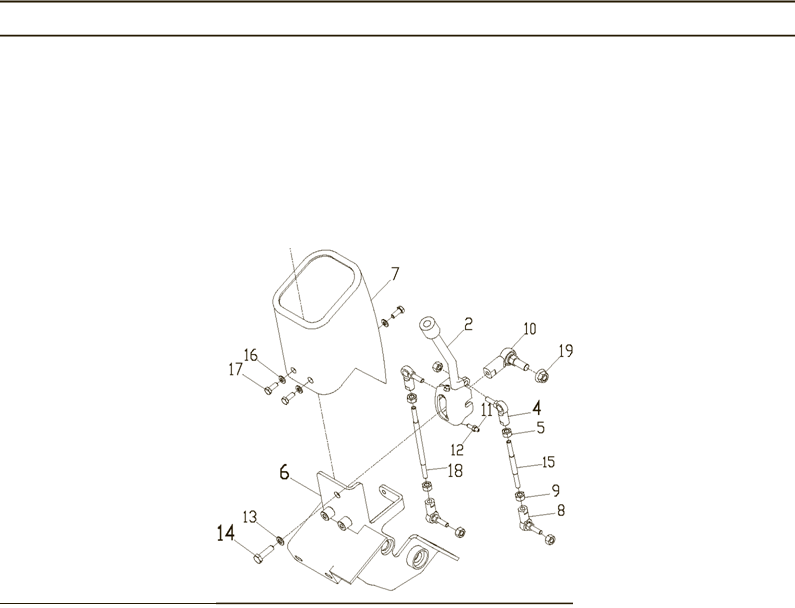

Left Operation Assembly

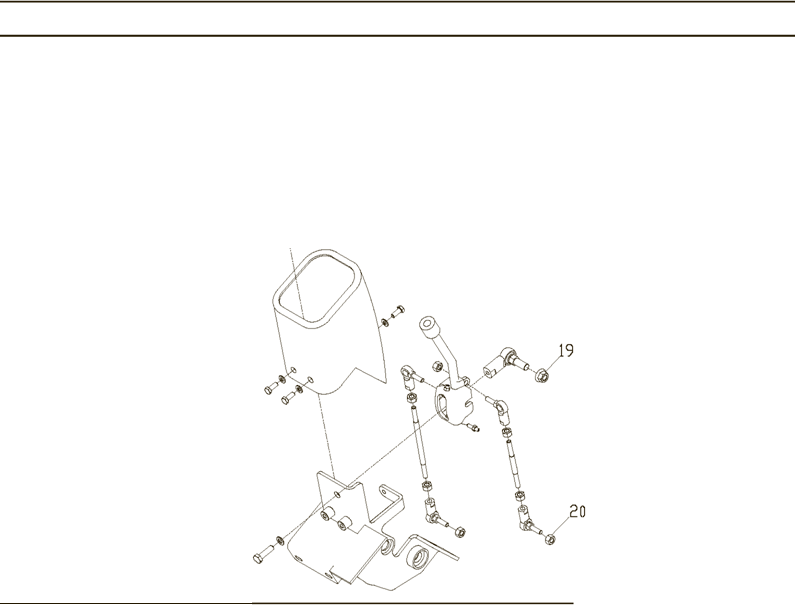

Left Operation Assembly



Parts number

Part Description

Specification

Qty

Remarks

I

tem

1

LG308.05.01.03



Handle assembly



1



2

LG308.05.01.01



Left operation staff



1



3

LG308.05.01-003



Left bellow sheath



1



4

LG308.05.06



Joint bearing

SQ8-RS

2



5

GB/T6170



Nut

M8

2



6

LG308.05.01.02



Left operation bracket



1



7

LG308.05.01.05



Left operation hood



1



8

LG308.05.07



Joint bearing levorotation

SQL8-RS

2



9

GB/T6170



Nut

M8-LH

2



10

LG308.05.01.04



Joint bearing

SQ14-RS

1



11

GB/T6170



Nut

M6

2



12

GB/T80-85



Screw

M6X25

2



13

GB/T97.1



Washer

14

2



14

GB/T5783



Bolt

M14X30

1



15

LG308.05.01-001



pull rod Ⅰ



1



16

GB/T97.1



Washer

8

7



17

GB/T5783



Bolt

M8X20

3



18

LG308.05.01-002



pull rod Ⅱ



1



19

GB/T6177.1



Nut

M14

1



20

GB/T889.1



Nut

M8

4
