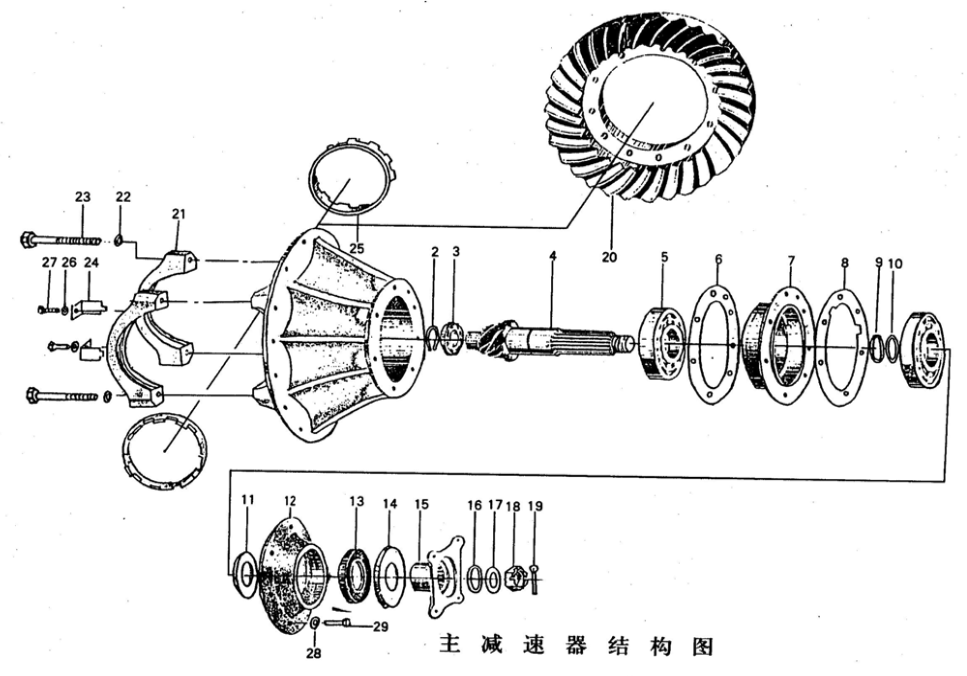

MAIN REDUCER ASSEMBLY CDM816D

Item

Parts number

Parts description

Specification

Qty

Remarks

1

ZL15F.2.5-8

主减速器壳(轴承盖、 调整螺母)

Final drive housing

(bearing cover, adjusting nut)



1



2

GB894.1-86

挡圈

Sprag

25

1



3

GB283-87

轴承

Bearing

102205

1



4

ZL15F.2.5.1-1

主动锥齿轮

Drive bevel gear



1



5

GB297-84

滚动轴承

Rolling bearing

7609

2



6

ZL15F.2.5-1

调整垫片

Adjusting gasket



1

单位:组/Unit:group

7

ZL15F.2.5.1-2

轴承套

Bearing sleeve



1



8

ZL15F.2.5.1-5

密封垫片

Seal gasket



1



9

ZL15F.2.5.1-3

轴承隔套

Bearing sleeve



1



10

ZL15F.2.5.1-4

轴承调整垫片

Adjusting gasket of bearing



1



11

ZL15F.2.1-6

轴承止推垫圈

Thrust wshet of bearing



1



12

ZL15F.2.5.1-7

轴承盖

Bearing cover



1



13

ZL15F-2402052

油封总成

Oil seal assembly



1



14

ZL15F-2402034

防尘罩

Dust cap



1



15

ZL15F.2.5.1-8

主动齿轮凸缘

Drive gear flange



1



16

GB1235-76

O形密封圈

O-ring

36×3.5

1



17

ZL15F.2.5.1-12

垫圈

Washer



1



18

GB9459-88

螺母

Nut

M20×1.5

1



19

GB91-76

开口销

Cotter pin

4×40

1



20

ZL15F.2.5-7

从动锥齿轮

Driven bevel gear



1



21

ZL15F.2.5-2

差速器轴承盖

Differential bearing cover



2



22

ZL15F.2.5-2-1

防松垫片

Locking gasket



4



23

GB5785-86

螺栓

Bolt

M14×1.5×70-8.8

4



24

ZL15F-2403090

调整螺母锁片

Locking split of adjusting nut



2



25

ZL15F.2.5-9

调整螺母

Adjusting nut



2



26

GB93-87

垫圈

Washer

8

2



27

GB5782-86

螺栓

Bolt

M8×16

2



28

GB93-87

垫圈

Washer

12

6



29

GB5782-86

螺栓

Bolt

M12×1.25×45

6
