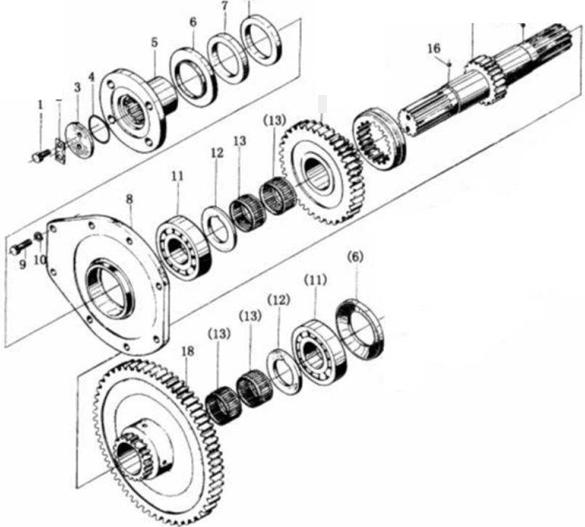

OUTPUT AXIS (=) (330101) LG933

Key  Part No.   Description  Spare parts Y/N QTY

2

4110000038246

止动垫 ZL20-030077

STOP WASHER

Y

2

3

4110000038245

压板 ZL20-030078

CLAMPING PLATE

Y

2

4

4110000038328

O形圈(52*5.7)Q26-01

O-RING(52*5.7)Q26-01

Y

2

5

4110000038243

输出轴法兰 ZL20-030013

OUTLET SHAFT FLANGE

Y

2

6

4110000038241

防尘罩 ZL20-030030

GUARD

Y

2

7

4110000038331

油封 HG4-335-1806 65*90*12

OIL SEAL HG4-335-1806 65*90*12

Y

4

8

4110000038332

输出轴后端盖 ZL20－030071

BACK END CAP ZL20－030071

Y

1

9

4011000084

螺栓GB5783-M10*30EpZn-8.8

BOLT GB5783-M10*30EpZn-8.8

N

8

10

4015000025

垫圈GB93-10-65Mn

WASHER GB93-10-65Mn

N

8

11

4021000166

P轴承GB276-310

P BEARING GB276-310

Y

2

12

4110000038232

止推环 ZL20-030010A

STOP WASHER

Y

2

13

4110000038233

滑动轴承 SF-15530

NEEDLEBEARING 55*60*30

Y

4

14

4110000038235

齿轮 ZL20-03009X1 ( Z=36)

GEAR

Y

1

15

4110000038336

高低速滑动齿套ZL20－030019

HIGH-LOW SPEED SLIP BUSHING ZL20－030019

Y

1

16

4090000063

钢球GB308-4.5-GCr15

STEEL BALL

N

2

17

4110000038337

输出轴 ZL20－030072A

OUTPUT SHAFT ZL20－030072A

Y

1

18

4110000038338

齿轮 ZL20－030021X1

GEAR ZL20－030021X1

Y

1
