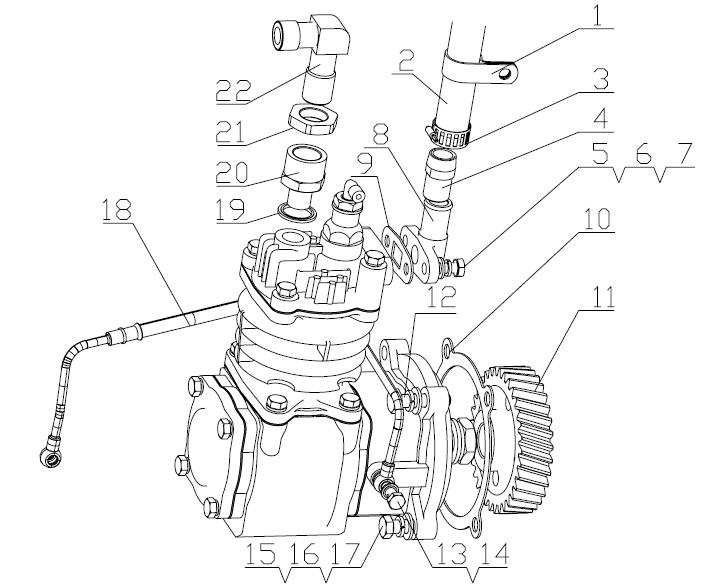

PNEUMATIC AIR COMPRESSOR ASSEMBLY D7019-3509000/10 LG918

2

4110000560105

空压机进气管D0103-3509012

AIR INTAKE PIPE,AIR COMPRESSOR D0103-3509012

N

1

3

4110000560333

环箍 27 Q67627

HOOP 27 Q67627

N

2

4

4110000560052

空压机进气管接头530-3509011

AIR INTAKE PIPE JOINT,AIR COMPRESSOR

530-3509011

Y

1

5

4110000560254

螺栓 M8X20 Q150B0820

BOLT M8X20 Q150B0820

N

2

6

4110000560316

停用-垫圈 8 Q40308

WASHER 8 Q40308

N

1

7

4110000560297

垫圈 8 Q40108

WASHER 8 Q40108

N

1

8

4110000560107

空压机进气接头D0111-3509010

AIR INTAKE JOINT,AIR COMPRESSOR D0111-3509010

Y

1

9

4110000560219

密封垫片F3100-3509014

SEAK GASKET F3100-3509014

Y

1

10

4110000560190

空气压缩机垫片D30-3509001A

AIR COMPRESSOR GASKET D30-3509001A

Y

1

11

4110000560192

空压机齿轮D30-3509011

AIR COMPRESSOR GEAR D30-3509011

Y

1

12

4110000560274

螺栓 M10X40 Q150B1040

BOLT M10X40 Q150B1040

N

3

13

4110000560064

接头螺栓6105Q-1007073

JOINT BOLT 6105Q-1007073

Y

2

14

4110000560232

复合式密封垫圈8 Q/YC149-8

COMPOUND SEAL RING 8 Q/YC149-8

N

4

15

4110000560281

螺栓 M10X1X30 Q151B1030

BOLT M10X30 Q151B1030

N

1

16

4110000560319

垫圈 10 Q40310

WASHER 10 Q40310

N

4

17

4110000560298

垫圈 10 Q40110

WASHER 10 Q40110

N

4

18

4110000560191

空压机进油管D30-3509004A

FUEL INLET PIPE,AIR COMPRESSOR D30-3509004A

Y

1
