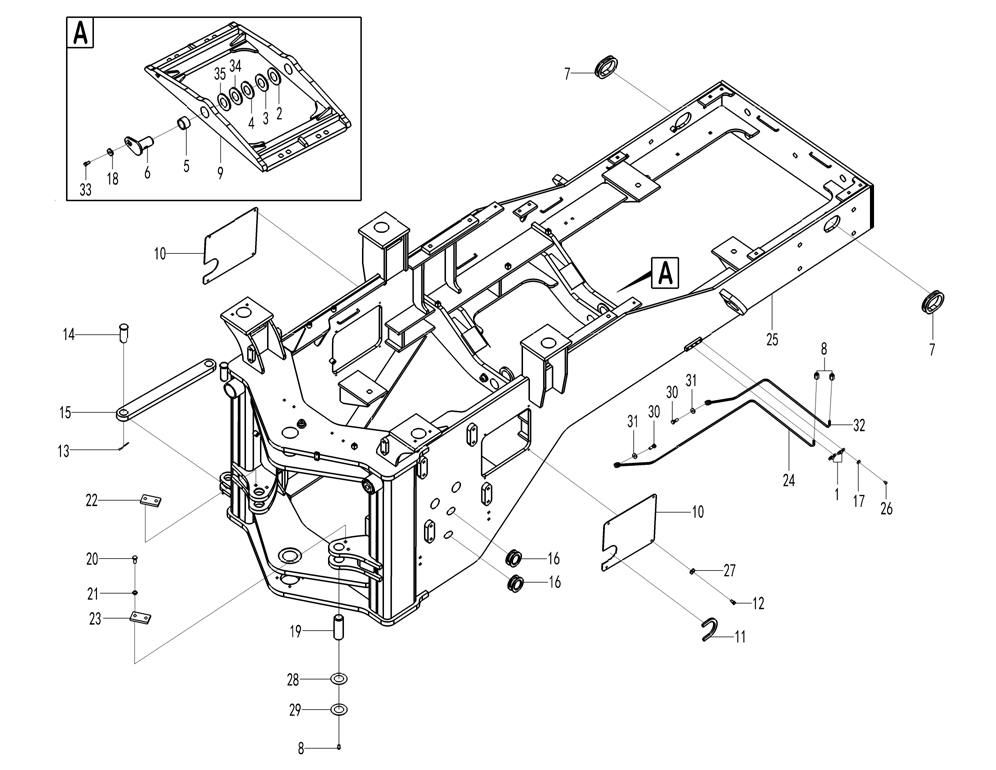

Rear frame assembly LG936L

Key Part No.   Descrption Spare parts Y/N QTY

2

29270001051

调整垫片

Shim

Y

2

3

29270001061

调整垫片

Shim

Y

2

4

29270001071

调整垫片

Shim

Y

2

5

29270007831

Bushing

Y

2

6

29270008591

焊接销轴

Pin

Y

2

7

29270009101

走线胶套

Rubber sleeve

Y

2

8

4030000065

油杯JB7940.1-M10*1

Lubricating nipple

Y

4

9

29270007841

副车架

Rear axle bridge

Y

1

10

29270008551

盖板

Cover plate

Y

2

11

29270007792

橡胶套

Rubber sleeve

Y

2

12

4011000102

螺栓GB5783-M8*16EpZn-8.8

Bolt

Y

8

13

4016000040

开口销GB91-6.3*50EpZn-Q235A

Split pin

Y

2

14

4016000222

销轴GB882-B30*80EpZn-35

Clevis pin

Y

2

15

29270008891

锁定杆

Transport lock

Y

1

16

29270007551

走线胶套

Rubber sleeve

Y

2

17

4015000035

垫圈GB93-6-65Mn

Spring washer

Y

4

18

4040000001

垫圈LGB001-12

Washer

Y

2

19

29270007971

后转向销

Pin

Y

2

20

4011000197

螺栓GB5783-M12*25EpZn-8.8

Bolt

Y

4

21

4015000026

垫圈GB93-12-65Mn

Spring washer

Y

4

22

29250001111

卡板

Plate

Y

2

24

29270007771

前输油管

Lubricating pipe

Y

1

25

29260009713

后车架

Rear frame

Y

1

26

4014000024

螺钉GB818-M6*10EpZn-4.8

Screw

Y

4

27

4015000256

垫圈GB96.1-8EpZn-300HV

Washer

Y

8

28

4043000064

垫片LGB303-40*70*1

Shim

Y

4

29

4043000325

垫片LGB303-40*70*2

Shim

Y

4

30

29250000291

通油螺栓

Bolt

Y

2

31

29250000301

垫片

Shim

Y

4

32

29270007751

后输油管

Lubricating pipe

Y

1

33

4011000087

螺栓GB5783-M12*20EpZn-8.8

Screw

Y

2

34

29270009311

调整垫片

Shim

Y

2

35

29270009321

调整垫片

Shim

Y

2
