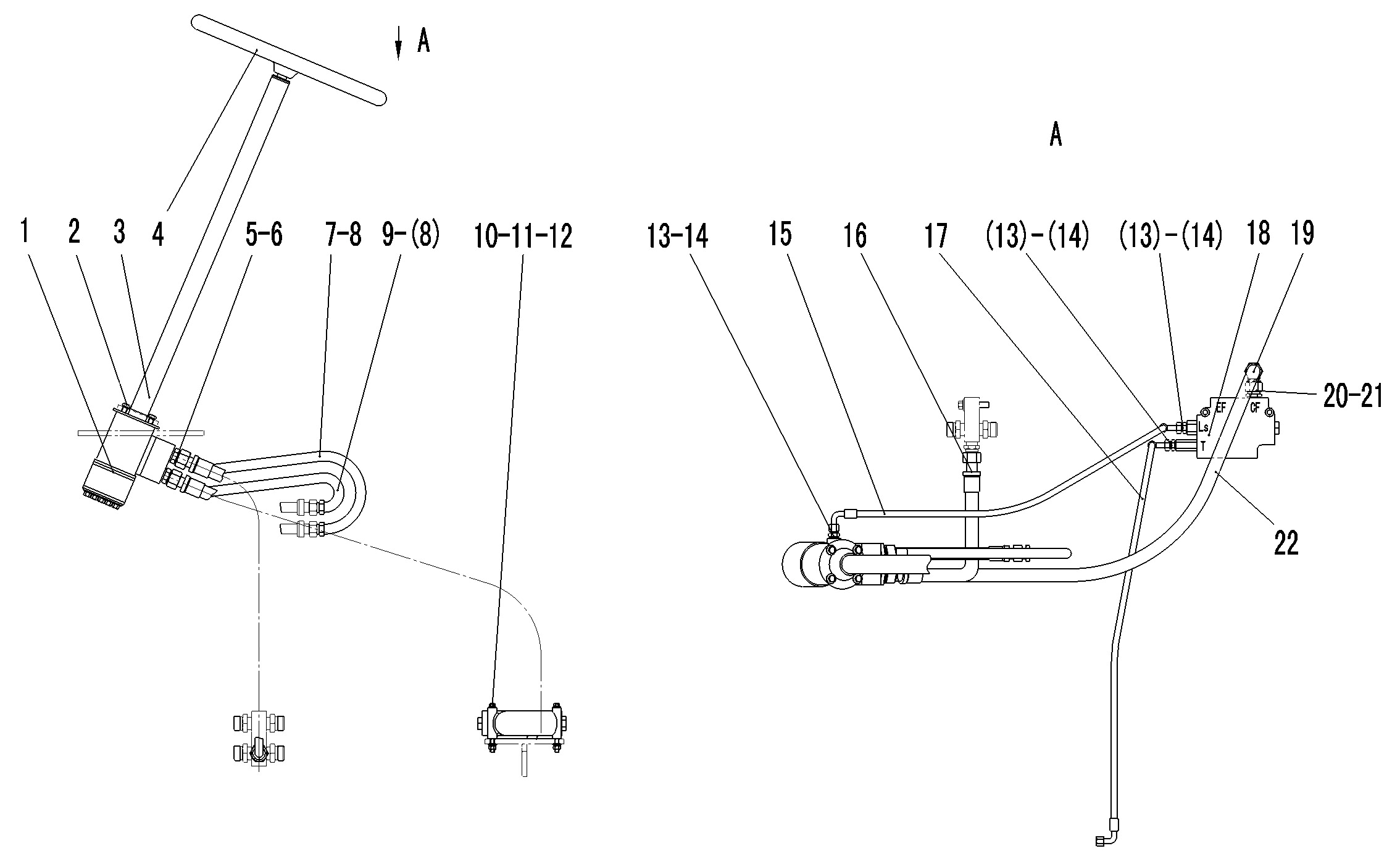

STEERINGUNITASSEMBLY LG918

2

4011000474

螺栓GB16674-M10*25EpZn-8.8

BOLTGB16674-M10*25EpZn-8.8

N

4

3

4120001546

转向柱LG20-ZXZ-04

STEERINGPOLELG20-ZXZ-04

Y

1

4

4120001548

方向盘LG20-FXP-01

STEERING WHEEL LG20-FXP-01

Y

1

5

4041000564

直接头LGB120-02620

JOINTLGB120-02620

Y

4

6

4041000783

O形圈LGB168-11724

O-RING LGB168-11724

Y

4

7

29200004021

转向器出油钢管A

OILOUTLET TUBE OFSTEERING GEAR(A)

Y

1

8

4030000501

O形圈GB3452.1-15.0*1.80G

O-RINGGB3452.1-15.0*1.80G

Y

2

9

29200004031

转向器出油钢管B

OUTLETTUBEFROMSTEERING DEVICE(B)

Y

1

10

4011000493

螺栓GB16674-M8*90EpZn-8.8

BOLTGB16674-M8*90EpZn-8.8

N

2

11

4013000033

螺母GB6170-M8EpZn-8

NUTGB6170-M8EpZn-8

N

2

12

4015000072

垫圈GB97.1-8EpZn-300HV

WASHERGB97.1-8EpZn-300HV

N

2

13

4041000131

直接头LGB120-01412

JOINTLGB120-01412

Y

3

14

4041000784

O形圈LGB168-10924

O-RING LGB168-10924

Y

3

15

29200007841

优先阀反馈油管

FEED BACKOILPIPE OFPRIORITY VALVE

Y

1

16

4041000677

软管LGB164-010085

PIPELGB164-010085

Y

1

17

29200006531

优先阀回油胶管

OILRETURN PIPE OFPRIORITYVALVE

Y

1

18

4120000709

优先阀VLE-150

PRIORITY VALVE VLE-150

Y

1

20

4041000187

直接头LGB120-02622

JOINTLGB120-02622

Y

1

21

4041000771

O形圈LGB168-11924

O-RING LGB168-11924

Y

1

22

4041000590

软管LGB127-010110

TUBELGB127-010110

Y

1
