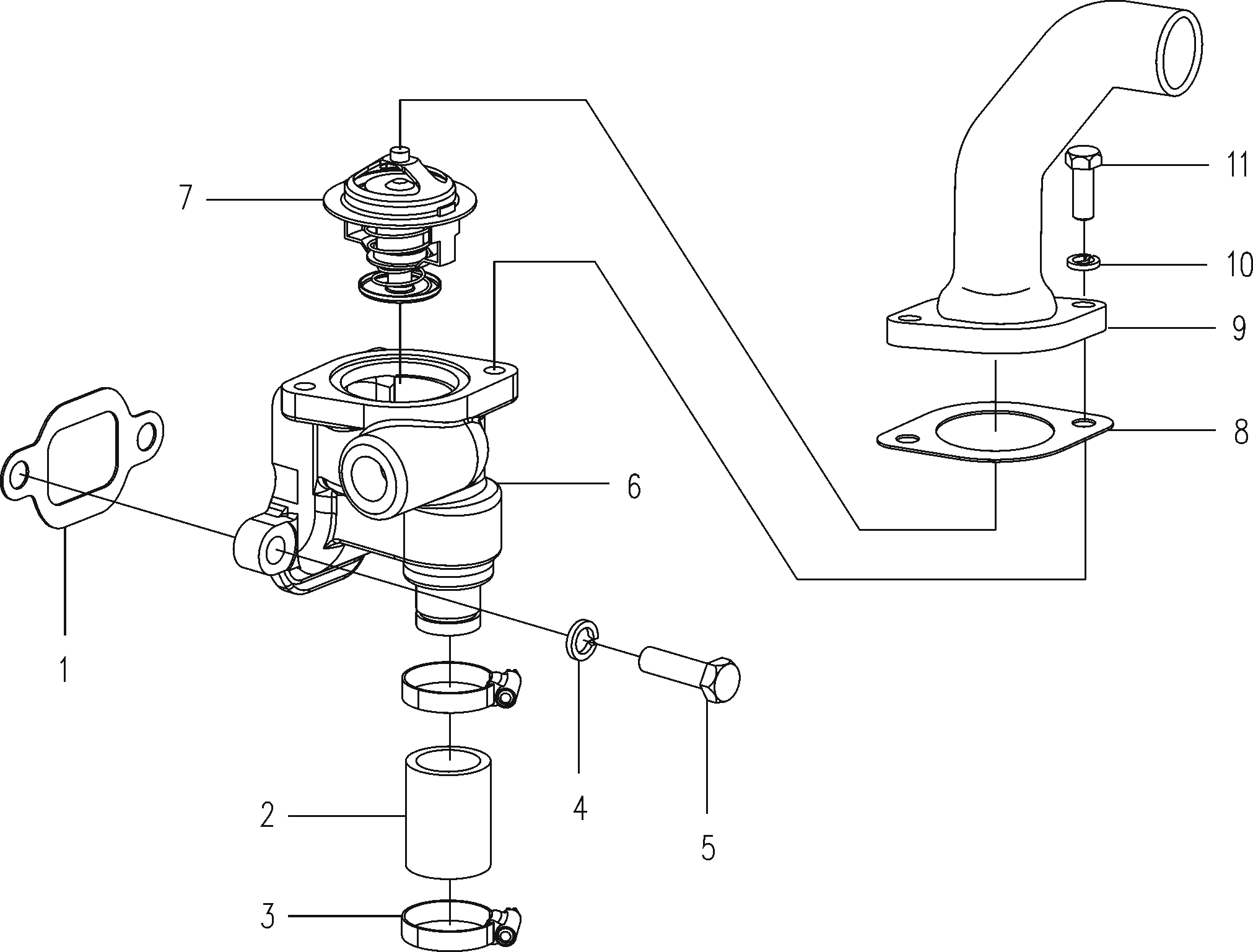

Thermostat Assy LR4105/LR4108/LR4110/LR4B3

No. Part Name  Drawing No.  Qty.
  Thermostat assy 4RTF.530000 1
1 Gasket, thermostat housing 4R.530004-1 1
2 Rubber hose 4R530003 1
3 Hoop JK-1 2
4 Spring washer 8 GB93-76 2
5 Bolt M8×25 GB21-76-ZnD 2
6-1 Housing assy, thermostat 4RTF.530101-1 1
  Thermostat body 4RTF.530101 1
  Bypass connector R510102 1
6-2 Housing assy, thermostat 4RT3.530101-1 1
  Thermostat body 4RT3.530101 1
  Bypass connector R510102 1
7 Thermostat 1039-76-X 1
8 Gasket, thermostat cap 4R530002 1
9 Cap, thermostat 4RTF.530001 1
  Cap, thermostat 4RG12.530001 1
  Cap, thermostat 4RG3.530001 1
  Cap, thermostat 4RG8.530001 1
10 Spring washer 10 GB93-76 2
11 Bolt M10×35 GB21-76-ZnD 2
