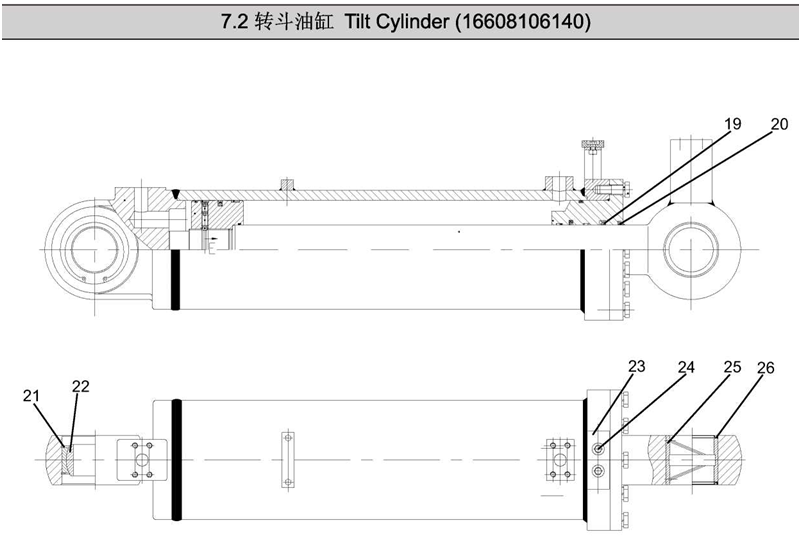

TiltCylinder

TiltCylinder

Item

Coding

Part Description

Specification

Qty

Original NO./Remarks

1

36608010350

缸体

Cylinder body

1

LG853.711000A-Z

2

36608020220

活塞

Piston

45

1

LG853.710002C

3

56200001101

纳污环

Dirt accumulating ring

180 x 172 x 6.2

1

4

56199001501

支承环

Support ring

175 x 180 x 15

1

5

51106232907

螺钉

screw

M12 x 18

1

GB/T77

6

51106233007

螺钉

screw

M12 x28

1

GB/T77

7

56189002601

活塞密封圈

Piston seal ring

180 x 159 x 8

1

8

56199001503

支承环

Support ring

175 x 180 x 15

1

9

52900000402

钢球

Steel ball

8

1

GB/T308

10

56900005003

0形圈

O-ring

88.49 x 3.53

1

AS568

11

36608040620

活塞杆组件

Piston rod groupware

1

LG853.710003B

12

36608030210

导向套

Guide sleeve

1

LG853.710001

13

56199003201

支承环

Support ring

90 x 9 x x15

2

14

56188001202

缓冲圈

Bumper ring

90 x 105.5 x 6.3

1

15

56900006103

0形圈

O-ring

170.82 x 5.33

1

AS568

16

56908001804

0形圈

O-ring

179.4 x 3.1

1

JISB2401

17

51401150107

垫圈

Washer

20

12

GB/T93

18

51210151714

螺栓

Bolt

M20 x 1.5 x 55-8.8

12

GB/T5785

19

56187002301

轴用密封圈

Sealing ring

90 x 105 x 12.5

1

B3 9005 P5008

20

56185000901

防尘圈

Dust ring

90 x 100 x 7

1

AY090AP5008

21

51451690107

挡圈

Circlip

120

2

GB/T893.1

22

52555000601

关节轴承

Joint bearing

GE80ES-C3

1

JB/T8879

23

36608260010

导板

Guide board

1

ZL50F-710005

24

51204090914

螺栓

Bolt

M8 x 16-8.8

2

GB/T5783

25

36608090230

轴套

Shaft sleeve

1

ZL50F-710004B

26

56186000501

防尘圈

Dust ring

80 x 95 x 5

2
