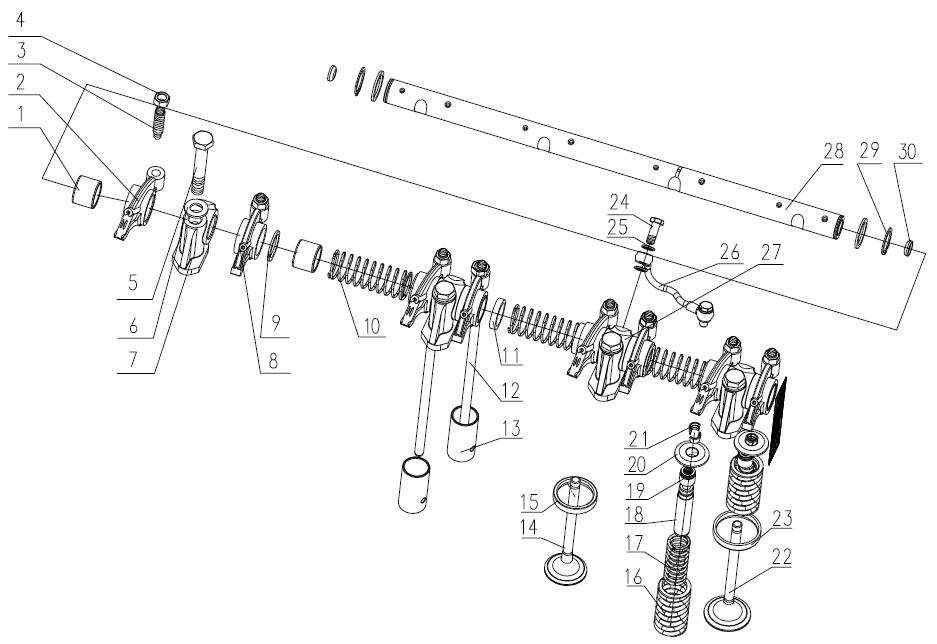

VALVE TAPPET ASSEMBLY D30-1007000A /06 LG918

2

4110000560225

进气门摇臂J3100-1007143

INTAKE VALVE ROCKER ARM J3100-1007143

N

4

3

4110000560083

气门调整螺钉6105QA-1007053

VALVE ADJUSTING BOLT 6105QA-1007053

Y

8

4

4110000560063

锁紧螺母6105Q-1007054

LOCK NUT 6105Q-1007054

Y

4

5

4110000560158

六角头螺栓D30-1007036

HEXAGONAL BOLT D30-1007036

Y

4

6

4110000560101

垫圈A30-1007092

WASHER A30-1007092

Y

3

7

4110000560156

摇臂轴座（二）D30-1007033

ROCKER ARM SHAFT SEAT（二） D30-1007033

N

8

8

4110000560227

排气门摇臂J3100-1007153

EXHAUST VALVE ROCKER ARM J3100-1007153

N

4

9

4110000560080

摇臂轴垫圈6105QA-1007031

ROCKER SHAFT WASHER 6105QA-1007031

Y

6

10

4110000560081

气门摇臂轴弹簧6105QA-1007032

ROCKER SHAFT SPRING 6105QA-1007032

Y

3

11

4110000560155

摇臂轴垫圈D30-1007031

ROCKER SHAFT WASHER D30-1007031

Y

2

12

4110000560161

推杆D30-1007002

PUSH ROD D30-1007002

Y

8

13

4110000560065

挺杆D30-1007001

TAPPET D30-1007001

Y

8

14

4110000560145

进气门D30-1003111B

INTAKE VALVE D30-1003111B

Y

4

15

4110000560032

进气门座430-1007019

INTAKE VALVE SEAT 430-1007019

Y

4

16

4110000560061

气门外弹簧6105Q-1007022

VALVE OUTER SPRING 6105Q-1007022

Y

8

17

4110000560062

气门内弹簧6105Q-1007023

VALVE INNER SPRING 6105Q-1007023

Y

8

18

4110000560031

气门导管430-1007018

VALVE GUIDE PIPE 430-1007018

Y

8

20

4110000560146

气门弹簧上座D30-1003116

VALVE SPRING UPPER SEAT D30-1003116

Y

8

21

4110000560012

气门锁夹150-1007021E

VALVE LOCK CLAMP 150-1007021E

Y

16

22

4110000560144

排气门D30-1003103B

EXHAUST VALVE D30-1003103B

Y

4

23

4110000560033

排气门座430-1007021

EXHAUST VALVE SEAT 430-1007021

Y

4

24

4110000560064

接头螺栓6105Q-1007073

JOINT BOLT 6105Q-1007073

Y

2

25

4110000560232

复合式密封垫圈8 Q/YC149-8

COMPOUND SEAL RING 8 Q/YC149-8

N

4

26

4110000560159

油管焊接件D30-1007075A

OIL PIPE WELDMENT D30-1007075A

Y

1

27

4110000560157

摇臂轴座（一）D30-1007034

ROCKER ARM SHAFT SEAT(Ⅰ) D30-1007034

N

1

28

4110000560162

摇臂轴D30-1007101

ROCKER ARM SHAFT D30-1007101

N

1

29

4110000560324

挡圈 25 Q43125

RETAINING RING 25 Q43125

N

2

30

4110000560082

碗形塞片6105QA-1007042

BOWL- STYLE PLUG 6105QA-1007042

Y

2
