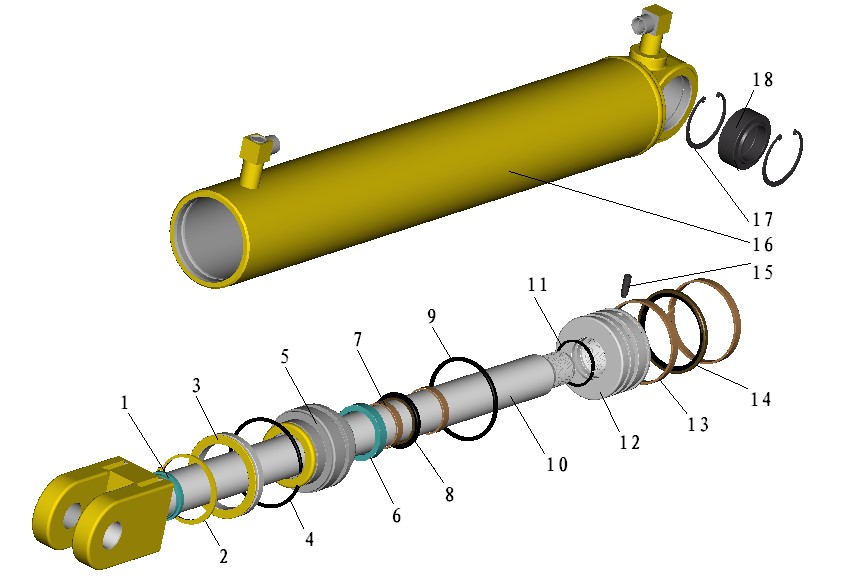

ARM OIL CYLINDER CDM816D

Item

Parts number

Parts description

Specification

Qty

Remarks

1

56185000401

防尘圈

Dust proof ring

45×53×6

1



2

GB/T894.1

挡圈

Spring sprag

70

1



3

ZL40-630002B

Ring



1



4

ZL40-630003A

弹簧挡圈

Spring sprag



1



5

ZL40-630004D

导向套

Guide sleeve



1



6

56187000801

轴用密封圈

Seal ring

45×60×12.5

1



7

56199002201

支撑环

Supporting ring

45×50×9.7

2



8

56188000302

缓冲圈

Ring

45×60.5×6.3

1



9

AS568

O 型圈

O-ring

78.74×5.33

1



10

LG815.07.02D.01

活塞杆

Piston rod



1



11

AS568

O 型圈

O-ring

44.04×3.53

1



12

ZL40-630005C

活塞

Piston



1



13

56199003101

支撑环

Supporting ring

85×90×9.7

2



14

56189002501

活塞密封圈

Loose stall for bores

90×74.5×6.3

1



15

GB/T77

螺钉

Cylinder end screw

M8×10

1



16

LG815.07.02B.01

缸体

Cylinder body



1



17

GB/T893.1

挡圈

Spring sprag

62

4



18

GB/T9163

关节轴承 GE40ES-C3

Joint bearing ge40es-c3



2
