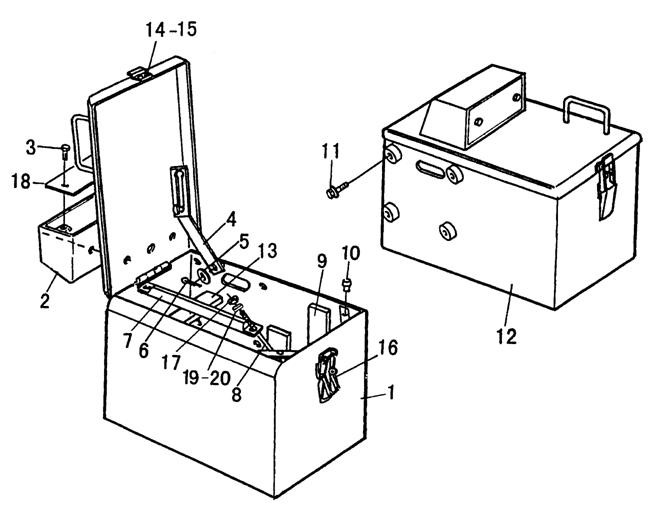

Battery case assembly LG936L

Key Part No.   Descrption Spare parts Y/N QTY

2

29340002431

灯架

Lantern bracket

Y

2

3

4011000461

螺栓GB16674-M8*16EpZn-8.8

Bolt

Y

4

4

29340009091

拉杆

Pull rod

Y

2

5

4015000168

垫圈GB97.1-12EpZn-300HV

Washer

Y

4

6

4016000035

开口销GB91-4*20EpZn-Q235A

Split pin

Y

2

7

29340009111

锁紧角钢

Corner steel

Y

2

8

29340009121

锁紧螺杆

Bolt

Y

4

9

29340009081

侧胶板

Rubber mat

Y

4

10

29340009101

橡胶塞

Rubber plug

Y

4

11

4011000449

螺栓GB16674-M16*35EpZn-8.8

Bolt

Y

8

12

29340021472

左电瓶箱

Battery box

Y

1

13

29340000131

下胶板

Rubber mat

Y

4

14

4014000023

螺钉GB818-M5*10EpZn-4.8

Screw

Y

10

15

4015000110

垫圈GB97.1-5EpZn-300HV

Washer

Y

10

16

4190000025

扣锁NBxs1013

Lock

Y

2

17

4013000033

螺母GB6170-M8EpZn-8

Nut

Y

4

18

29340002442

后板

Bracket

Y

2

19

4015000036

垫圈GB93-8-65Mn

Spring washer

Y

4

20

4015000072

垫圈GB97.1-8EpZn-300HV

Washer

Y

4
