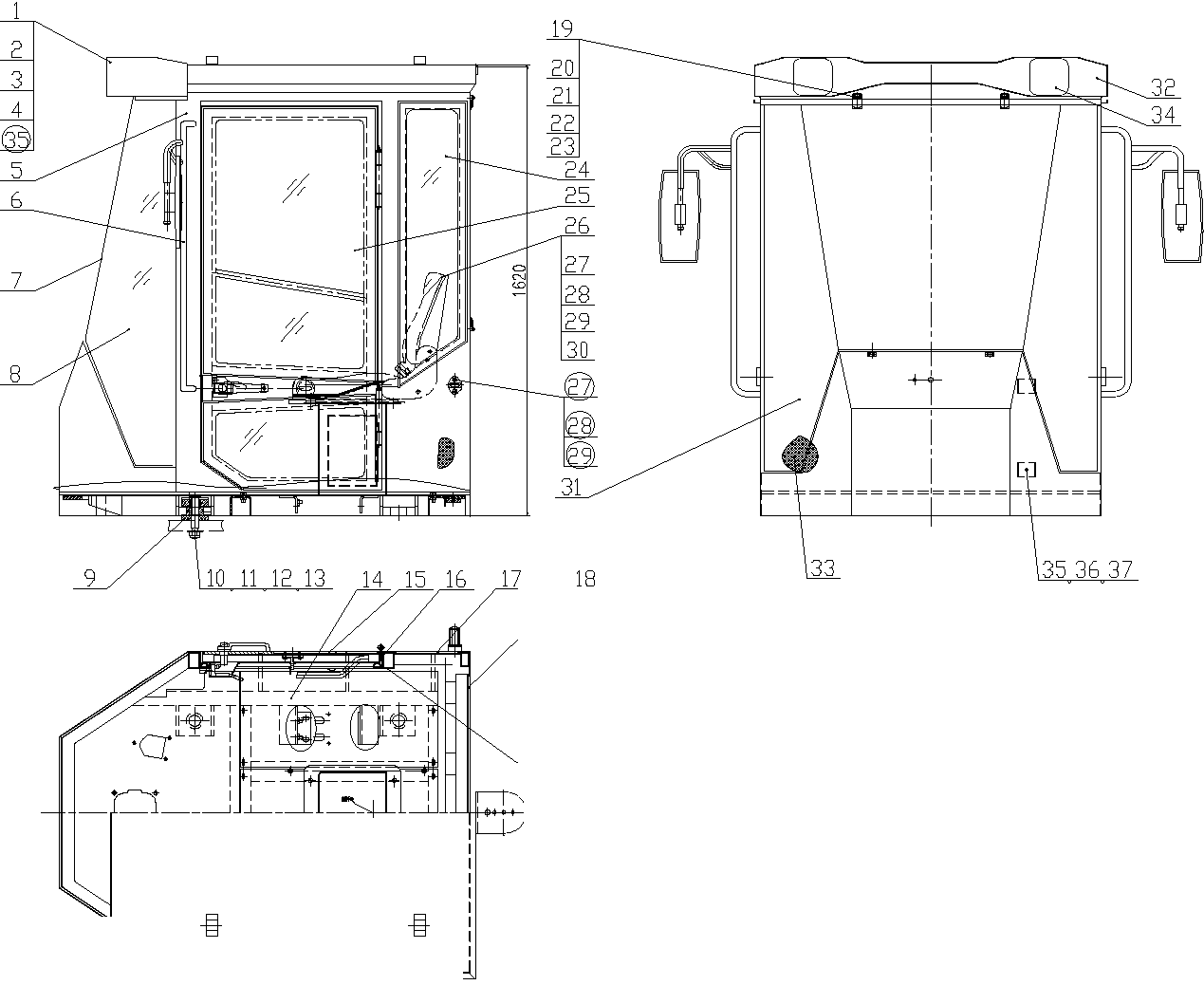

CAB SYSTEM CDM816D

Item

Parts number

Parts description

Specification

Qty

Remarks

1

GB/T5783

螺栓

Bolt

M6×25-8.8

4



2

GB/T93

垫圈

Washer

6

7



3

GB/T96.1

垫圈

Washer

6

6



4

GB/T6170

螺母

Nut

M6-8

2



5

CDM823D.12.01

驾驶室焊合

Cab weldment



1



6

ZQP-142

倒车镜

Back up mirror



2



7

LG823D.12-001

前玻璃

Front window glass



1



8

LG823D.12-002

左前侧玻璃

Left and front side glass



1



9

LG853.12.05

橡胶垫

Rubber pad



4



10

LG853.12-011

Pin



4



11

GB/T889.2

尼龙自锁螺母

Nylon locknut

M18×1.5-8

4



12

LG853.12-010

垫圈

Washer



4



13

LG853.12-012

垫板

Tie plate



16



14

LG823D.12.02

底座总成

Seat assembly



1



15

LG823D.12.03

右门总成

Left door assembly



1



16

LG856.12.09

门框胶条

Door belt



2×4.2m

33

LG823D.12.06

驾驶室内饰总成

Cab interior trim assembly



1



34

LG30F.12-017

线束护线套

Wiring harness sheath



3



35

GB/T846-85

自攻螺钉

Plug screw

ST4.2×15

6



36

GB/T846-85

自攻螺钉

Plug screw

ST4.2×30

22



37

GB/T846-85

自攻螺钉

Plug screw

ST4.2×30

4



38

GB/T818

螺钉

Plug screw

M6×30-8.8

3



39

GB/T97.1

垫圈

Washer

6

3
