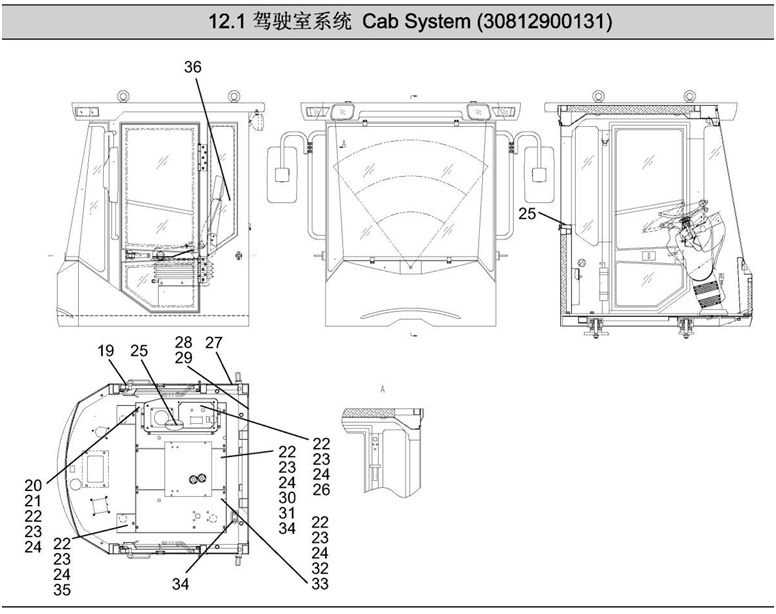

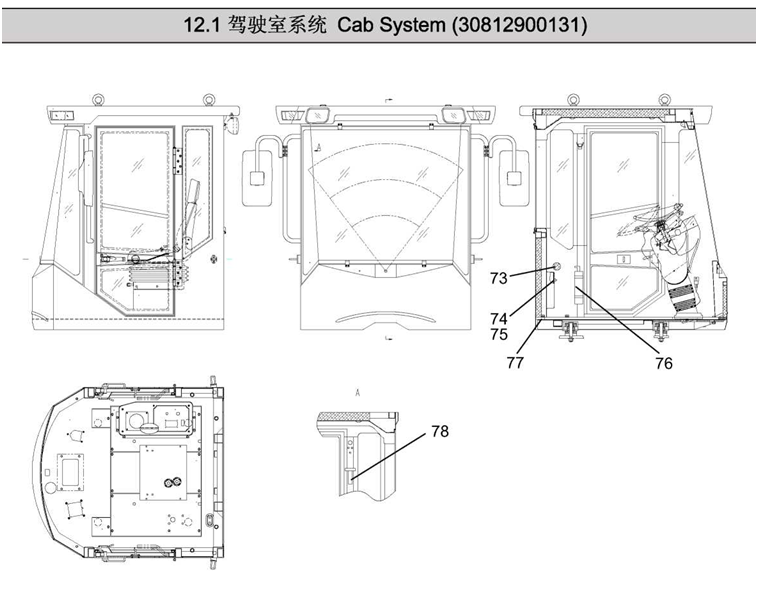

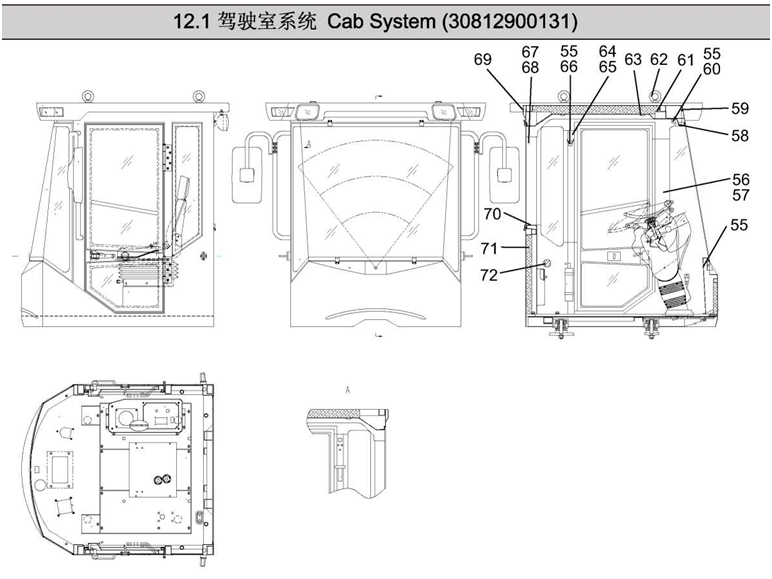

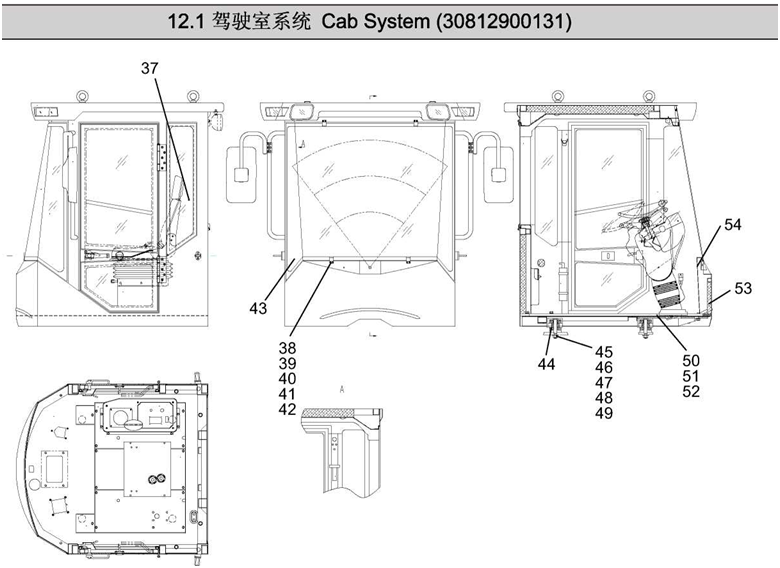

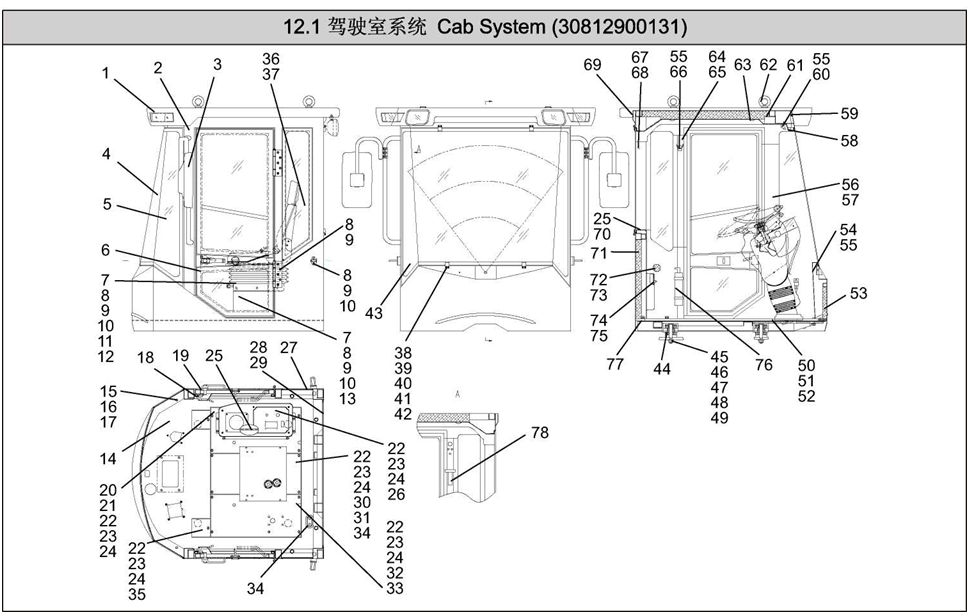

CabSystem
|
CabSystem |
||||||
|
Item |
Coding |
Part Description |
Specification |
Qty |
Original NO./Remarks |
|
|
1 |
60980004555 |
全覆盖外顶 |
Outside top |
1 |
CDM853.12II.03 |
|
|
2 |
30881000283 |
驾驶室焊合 |
Cab weldment |
1 |
CDM853.12II.01 |
|
|
3 |
60917010022 |
倒车镜 |
Reverse mirror |
2 |
LG50C.12IV.08 |
|
|
4 |
60903000018 |
前玻璃 |
Front windscreen |
1 |
LG833B.12-002 |
|
|
5 |
60908000003 |
左前侧玻璃 |
Lelt side window glass |
1 |
LG833B.12-003 |
|
|
6 |
30881000285 |
左门 |
Left door |
1 |
CDM853.12II.04 |
|
|
7 |
51307000919 |
螺母 |
Nut |
M8-8 |
8 |
GB/T6170 |
|
8 |
51401090107 |
垫圈 |
Washer |
8 |
32 |
GB/T93 |
|
9 |
51421090115 |
垫圈 |
Washer |
8 |
32 |
GB/T97.1 |
|
10 |
51204091014 |
螺栓 |
Bolt |
M8 x 20-8.8 |
12 |
GB/T5783 |
|
11 |
60920010006 |
航空座椅 |
Aeroseat |
KAB835 |
1 |
CDM835E.12IV.10\选配 |
|
12 |
60920010011 |
航空座椅 |
Aeroseat |
1 |
CDM853.12.03\标配 |
|
|
13 |
30812000026 |
暖风机罩 |
Heater hood |
1 |
LG853.12.07 |
|
|
14 |
30881000284 |
底座焊合 |
Pedestal weldment |
1 |
CDM853.12II.02 |
|
|
15 |
51204133314 |
螺栓 |
Bolt |
M16x 50-8.8 |
8 |
GB/T5783 |
|
16 |
51401130107 |
垫圈 |
Washer |
16 |
8 |
GB/T93 |
|
17 |
51421130115 |
垫圈 |
Washer |
16 |
8 |
GB/T97.1 |
|
18 |
30812000131 |
门框胶条 |
Doorframe rubber strip |
4.2m |
2 |
LG856.12.09 |
|
19 |
30881000286 |
右门 |
Right door |
1 |
CDM853.12II.05 |
|
|
20 |
30881000399 |
右活动面板焊合 |
Right moving surface board weldment |
1 |
CDM853.12III.02 |
|
|
21 |
30881000400 |
右活动面板焊合 |
Right moving surface board weldment |
1 |
CDM853.12III.03\ 配装空调用 |
|
|
22 |
51204081014 |
螺栓 |
Bolt |
M6 x 20-8.8 |
34 |
GB/T5783 |
|
23 |
51401080107 |
垫圈 |
Washer |
6 |
34 |
GB/T93 |
|
24 |
51420080121 |
垫圈 |
Washer |
6 |
49 |
GB/T96.1 |
|
25 |
60919010042 |
и型胶条 |
U-rubber strip |
5 |
LG856.13I.06.01-018 |
|
|
26 |
30812000016 |
先导操纵箱总成 |
Pilot control box assembly |
1 |
CDM856E.12I.15 |
|
|
27 |
30891101006 |
右后侧玻璃 |
Right rear glass |
1 |
CDM835E.12-003 |
|
|
28 |
60903000017 |
后玻璃 |
Rearwindowglass |
1 |
LG833B.12-001\ 标配 |
|
|
29 |
60980004554 |
电加热后玻璃 |
Rear glass |
1 |
CDM853.12ll-022\选配 |
|
|
30 |
30882000102 |
中面板 |
Middle faceplate |
1 |
LG833B.12.01.01.01.05 |
|
|
31 |
30812100007 |
中面板 |
Middle faceplate |
1 |
LG833B.12.01.01.01-001\ 装空调专用 |
|
|
32 |
30881000287 |
中左面板焊合 |
Middle left surface board weldment |
1 |
CDM853.12II.07\配空调专用 |
|
|
33 |
30881000288 |
中左面板焊合 |
Middle left surface board weldment |
1 |
CDM853.12II.08 |
|
|
34 |
30882100670 |
仪表管线束密封套 |
Instrument wiring harness sheath |
1 |
LG853.12.01.02.01-012 |
|
|
35 |
30882100380 |
活动盖板 |
Moving cover board |
2 |
LG853.12.01.02.01-002 |
|
|
36 |
30891101007 |
左后侧玻璃 |
Leftrearglass |
1 |
CDM835E.12-004 |
|
|
37 |
51204091114 |
螺栓 |
Bolt |
M8 x 25-8.8 |
20 |
GB/T5783 |
|
38 |
30812101015 |
玻璃压板 |
Glass Plate |
8 |
LG853.12-002 |
|
|
39 |
30812101620 |
玻璃固定橡胶垫 |
Glass fixed rubber pad |
8 |
LG856.12-028 |
|
|
40 |
51158170304 |
螺钉 |
Bolt |
M5 x 10-4.8 |
16 |
GB/T818 |
|
41 |
51401070107 |
垫圈 |
Washer |
5 |
16 |
GB/T93 |
|
42 |
51421070115 |
垫圈 |
Washer |
5 |
16 |
GB/T97.1 |
|
43 |
60908000004 |
右前侧玻璃 |
Front right glass |
1 |
LG833B.12-004 |
|
|
44 |
30812000118 |
橡胶垫 |
Rubber pad |
4 |
LG853.12.05 |
|
|
45 |
30890100223 |
销 |
Pin |
4 |
LG853.12-011 |
|
|
46 |
51342000819 |
螺母 |
Nut |
M18x 1.5-8 |
4 |
GB/T889.2 |
|
47 |
30812101012 |
垫圈 |
Washer |
4 |
LG853.12-010 |
|
|
48 |
30812101013 |
垫板 |
Ground pad |
4 |
LG853.12-012 |
|
|
49 |
30812101413 |
垫圈 |
Washer |
4 |
LG855.12-009 |
|
|
50 |
30881101168 |
地垫 |
Ground pad |
1 |
CDM853.12III-001\配装暖风机用 |
|
|
51 |
30881101169 |
地垫 |
Ground pad |
1 |
CDM853.12lll-002\配装空调专用 |
|
|
52 |
30881101170 |
纸垫 |
Paper gasket |
1 |
CDM853.12III-003 |
|
|
53 |
60918010298 |
前吸音材料 |
Front board sound absorption material |
4 |
CDM853.12II-008 |
|
|
54 |
60918010299 |
前装饰板 |
Front decoration board |
1 |
CDM853.12II.09 |
|
|
55 |
51166450411 |
自攻螺钉 |
Taperscrew |
ST4.8 x 19 |
8 |
GB/T845 |
|
56 |
60918010300 |
左前立柱装饰板 |
Leftfrontsupportdecorationboard |
1 |
CDM853.12II-009 |
|
|
57 |
60918010301 |
右前立柱装饰板 |
Right front support decoration board |
1 |
CDM853.12II-010 |
|
|
58 |
60918010302 |
内顶衬 |
Roof lining |
1 |
CDM853.12II-011 |
|
|
59 |
30812101051 |
线束密封套 |
Wiring harness gland cover |
2 |
CDM858A.12I-001 |
|
|
60 |
30881000365 |
遮阳帘 |
Shade |
1 |
CDM856DI.12.11 |
|
|
61 |
60918010303 |
顶棚吸音材料 |
Ceiling sound absorption material |
6 |
CDM853.12II-012 |
|
|
62 |
51142345408 |
螺钉 |
Screw |
M24-20 |
4 |
GB/T825A |
|
63 |
60980000118 |
塑料铆钉 |
Plastic rivet |
深灰18,浅灰29 |
47 |
LG856.12-026 |
|
64 |
60918010304 |
左中立柱装饰板 |
Leftmiddlesupportdecorationboard |
1 |
CDM853.12II-013 |
|
|
65 |
60918010305 |
右中立柱装饰板 |
Right middle support decoration board |
1 |
CDM853.12II-014 |
|
|
66 |
60980000117 |
衣帽勾 |
Hat-and-coat hook |
1 |
LG856.12-019 |
|
|
67 |
60918010306 |
左后立柱装饰板 |
Left rear support decoration board |
1 |
CDM853.12II-015 |
|
|
68 |
60918010307 |
右后立柱装饰板 |
Right rear support decoration board |
1 |
CDM853.12II-016 |
|
|
69 |
60404010037 |
线束护线套 |
Wiring harness sheath |
2 |
LG30F.12-017 |
|
|
70 |
60918010308 |
后装饰板 |
Rear decoration board |
1 |
CDM853.12II.10 |
|
|
71 |
60918010309 |
后吸首材料 |
Rearsound absorption material |
2 |
CDM853.12II-017 |
|
|
72 |
60918010310 |
左后侧吸首材料 |
Lelt rearside sound absorption material |
1 |
CDM853.12II-018 |
|
|
73 |
60918010311 |
右后侧吸音材料 |
Right rearside sound absorption material |
1 |
CDM853.12II-019 |
|
|
74 |
60918010312 |
检修门 |
Door |
1 |
CDM853.12ll-020\后装饰板配带 |
|
|
75 |
60701010143 |
旋锁 |
Revolve lock |
1 |
LG833B.12.07\LG833B.12-014 检修门配带 |
|
|
76 |
60980000167 |
灭火器 |
Fire extinguisher |
1 |
CDM858A.12I.05 |
|
|
77 |
30812100717 |
密封垫 |
Seal gasket |
1 |
CDM853.12II-021 |
|
|
78 |
60980000168 |
安全锤 |
Hammer |
1 |
CDM858A.12I.06 |
|
