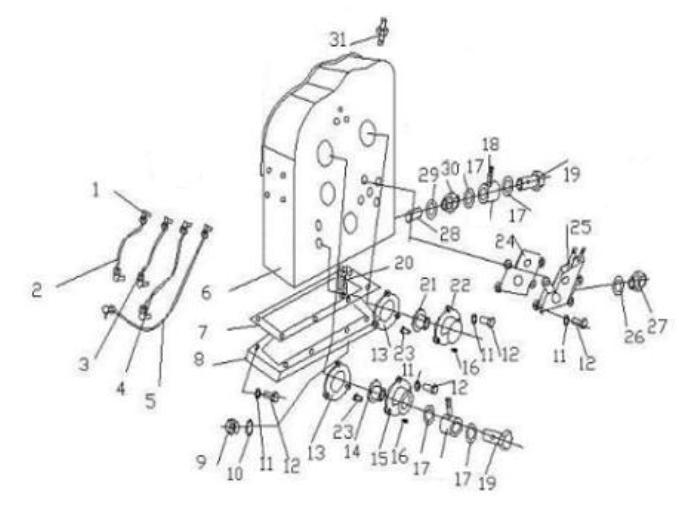

CASE AND PIPELINE ACCESSORIES(370804) LG918

Key Part No.   Description Spare parts Y/N Oty
1 4110000218103 BD05-00024 BEND PIECE BD05-00024 Y 8

2

4110000218059

管BD05-08000

PIPE BD05-08000

Y

1

3

4110000218060

管BD05-09000

PIPE BD05-09000

Y

1

4

4110000218061

管BD05-10000

PIPE BD05-10000

Y

1

5

4110000218062

管BD05-11000

PIPE BD05-11000

Y

1

6

4110000218076

壳体BD05-00001

SHELL BD05-00001

Y

1

7

4110000218033

垫BD05-00013

PAD BD05-00013

Y

1

8

4110000218031

底板BD05-00012

PLATE BD05-00012

Y

1

9

4110000218083

螺塞07044-12412

PLUG SCREW 07044-12412

Y

1

10

4110000218006

O 形圈07002-02434

O-RING 07002-02434

Y

1

11

4110000011097

垫圈10 01602-11030

WASHER 10 01602-11030

Y

22

12

4110000218086

螺栓01010-31025 M10*25

BOLT 01010-31025 M10*25

Y

22

13

4110000218037

垫片BD05-03004

GASKET BD05-03004

Y

2

14

4110000218011

衬套BD05-03001

BUSH BD05-03001

Y

1

15

4110000218052

盖BD05-03002

COVER BD05-03002

Y

1

16

4110000218082

螺塞07043-00108

PLUG SCREW 07043-00108

Y

5

17

4015000091

垫圈JB982-27

SEALING WASHER JB982-27

N

2

18

4110000218070

接头BD05N1-03000

JOINT BD05N1-03000

Y

1
19 4110000218089 ZL15B-00001 BOLT ZL15B-00001 Y 2

20

4110000218051

检油塞1305C-010

PLUG FOR CHECK UP 1305C-010

Y

2

21

4110000218012

衬套BD05-04002

BUSH BD05-04002

Y

1

22

4110000218053

盖BD05-04001

COVER BD05-04001

Y

1

23

4110000218079

螺钉BD05-03003

SCREW BD05-03003

Y

6

24

4110000218034

垫BD05-00025

PAD BD05-00025

Y

1

25

4110000218010

变速箱操纵阀ZL15G

TRANSMISSION CONTRL VALVE ZL15G

Y

1

26

4015000298

垫圈JB982-18

SEALING WASHER JB982-18

N

2

27

4110000218074

接头 转向器 1 号 GB-4

JOINT STEERING DEVICE GB-4

Y

1

28

4110000218001

滤油器 BD05-13000

OIL-FILTER BD05-13000

Y

1

29

4015000299

垫圈JB982-48

SEALING WASHER JB982-48

N

1

30

4110000218084

螺塞BD05-00027

PLUG SCREW BD05-00027

Y

1

31

4110000223018

呼吸器1BD05N1-05000

INSPIRATOR 1BD05N1-05000

Y

1
