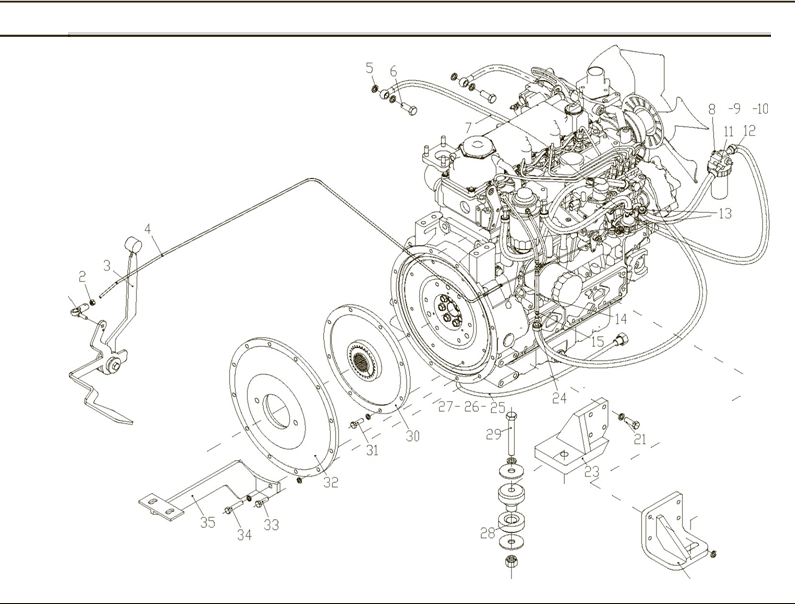

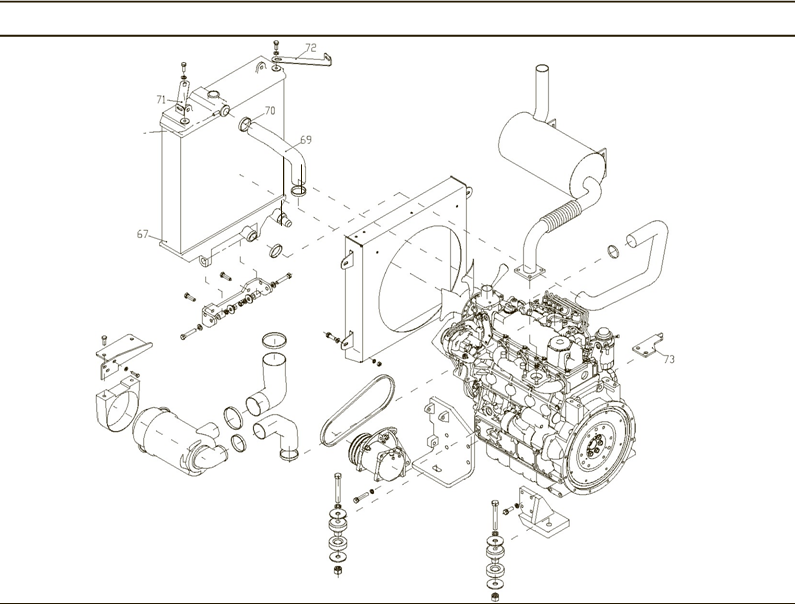

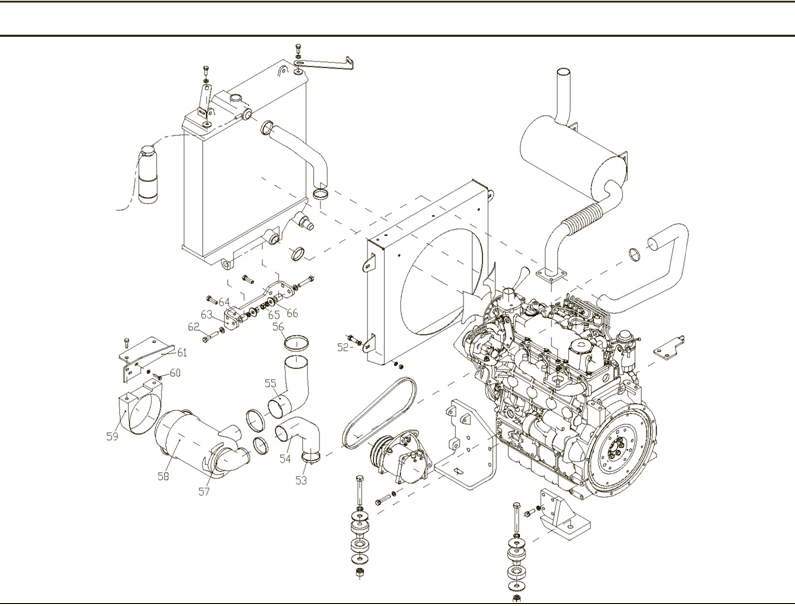

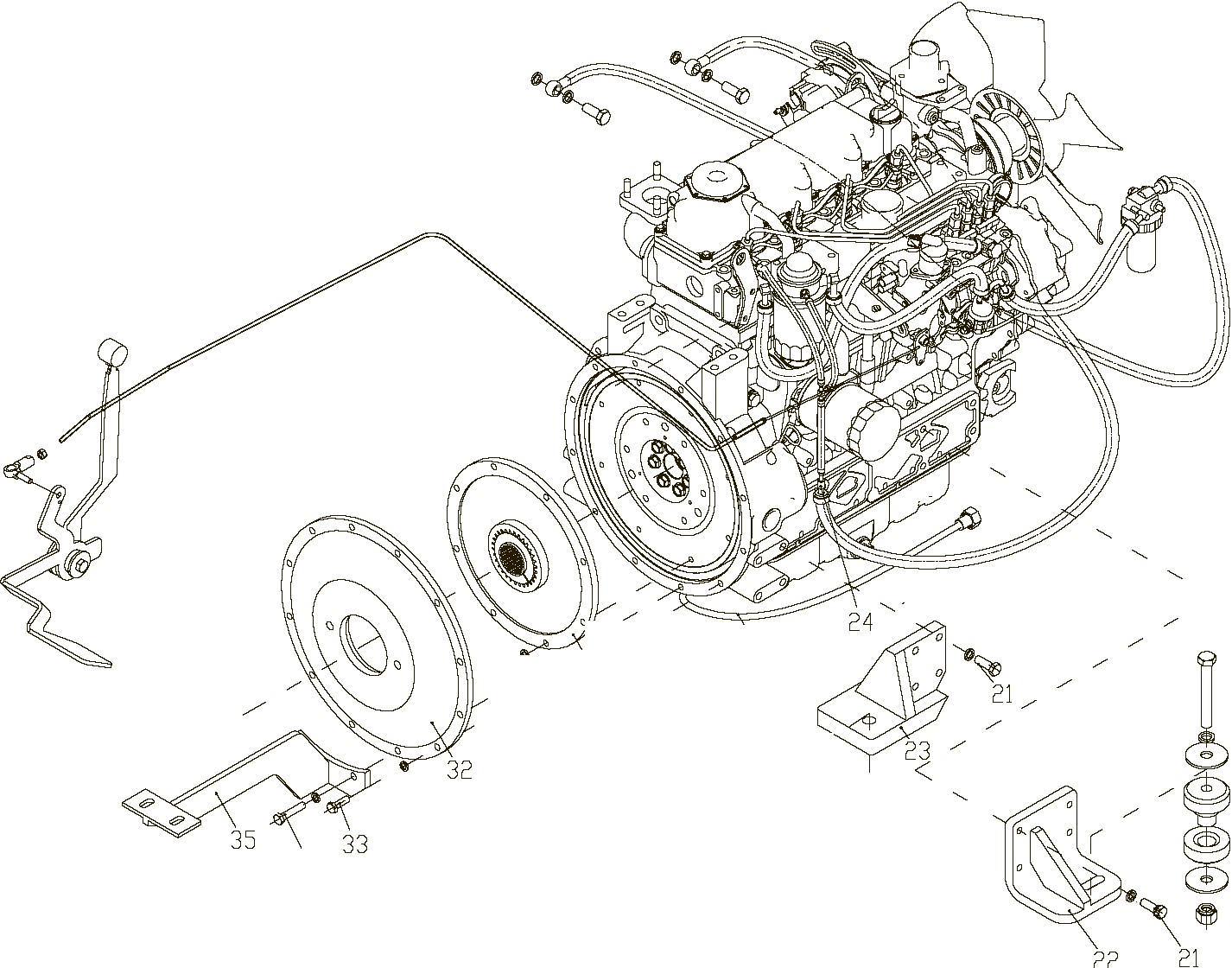

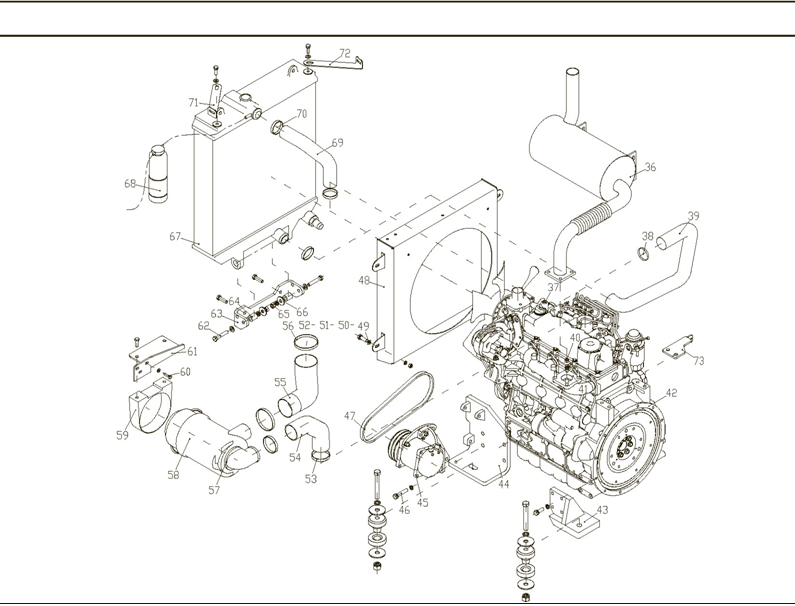

Diesel Engine System
|
Diesel Engine System |
|||||||
|
Parts number |
Part Description |
Specification |
Qty |
Remarks |
|||
|
i |
tem |
||||||
|
1 |
LG308.05.06 |
End joint bearing |
2 |
||||
|
2 |
GB/T6170-2000 |
M8 |
Nut |
M8 |
5 |
||
|
3 |
LG308.01.01 |
Hand and foot throttle assembly |
1 |
||||
|
4 |
LG308.01.21 |
Throttle flexible shaft assembly |
1 |
||||
|
5 |
ZHD-14 |
Combined pad |
4 |
||||
|
6 |
700M-14 |
Metric articulated bolt |
2 |
||||
|
7 |
70011-14-05A30*Φ8*2000 |
Hose |
2 |
||||
|
8 |
GB/T5781-2000 |
M8X65 |
Bolt |
M8X65 |
1 |
||
|
9 |
GB/T97.1-2002 |
8 |
Washer |
8 |
10 |
||
|
10 |
GB/T93 |
8 |
Washer |
8 |
10 |
||
|
11 |
1G311-4335 |
|
Oil-water separater |
1 |
|||
|
12 |
JB/T8870 |
Hoop |
13-19 |
3 |
|||
|
13 |
LG307.01.03 |
Φ8X1200 |
Hose |
8X1200 |
1 |
||
|
14 |
Φ4-L100 |
Fuel hose |
1 |
||||
|
15 |
MA04 |
Hoop |
7 |
||||
|
16 |
GB/T5782-2000 |
M16X120 |
Bolt |
M16X120 |
2 |
||
|
17 |
GB/T93-1987 |
16 |
Washer |
16 |
4 |
||
|
18 |
LG308.01-007 |
Washer |
8 |
||||
|
19 |
LG308.01.20 |
Rear shock absorber |
M16 |
2 |
|||
|
20 |
GB/T6170-2000 |
Nut |
M12X1.25X35 |
4 |
|||
|
21 |
GB/T5786-1986 |
Bolt |
15 |
||||
|
22 |
LG308.01.15 |
|
Diesel engine rear bracket |
1 |
|||
|
23 |
LG308.01.12 |
Diesel engine leftfront support |
1 |
||||
|
24 |
LG308.01-018 |
Oil pipe transition connector |
1 |
||||
|
25 |
L1CH-22 |
Metric straight transition connector |
1 |
||||
|
26 |
L9C-22T |
Metric straight transition connector |
1 |
||||
|
27 |
10411-22/20491-22T*1T10*1000 |
Oil outlet hose |
1 |
||||
|
28 |
LG308.01.17 |
|
Shock absorber |
M16X140 |
2 |
||
|
29 |
GB/T5782-2000 |
Bolt |
2 |
||||
|
30 |
LG308.01.18 |
|
Coupling shaft coupling assembly |
M10X35 |
1 |
||
|
31 |
GB/T5786-2000 |
Bolt |
2 |
||||
|
32 |
LG308.01-012 |
Engine connecting disc |
M10X1.25X30 |
1 |
|||
|
33 |
GB/T5786 |
Bolt |
M10X1.25X50 |
10 |
|||
|
34 |
GB/T5786 |
Bolt |
2 |
||||
|
35 |
LG308.01.31 |
Series pump bracket |
1 |
||||
|
36 |
LG308.01.30 |
|
Muffle assembly |
1 |
LG308 |
||
|
LG312.01.30 |
LG312 |
||||||
|
37 |
LG853.01.01 |
Heater pipe connector |
1 |
||||
|
38 |
JB/T8870 |
Hoop |
Ø70~85 |
3 |
|||
|
39 |
LG308.01-013 |
Water tank water inlet hose |
1 |
||||
|
40 |
GB/T6171-1986 |
Nut |
M10X1.25 |
4 |
|||
|
41 |
LG308.01-004 |
|
Muffle seal gasket |
1 |
|||
|
42 |
LG308.01.02 |
Diesel engine assembly |
1 |
LG308 |
|||
|
LG312.01.01 |
LG312 |
||||||
|
43 |
LG308.01.08 |
Diesel engine right front bracket |
1 |
||||
|
44 |
LG308.01.19 |
|
Diesel engine rear bracket |
1 |
|||
|
45 |
LG308.01.10 |
Compressor assembly |
1 |
||||
|
46 |
GB/T5786-1986 |
Bolt |
M12X1.25X50 |
2 |
|||
|
47 |
GB11544-89 |
|
Belt |
A-914 |
1 |
||
|
48 |
LG308.01.05 |
|
Wind cover weldment |
1 |
|||
|
49 |
GB/T5781-2000 |
Bolt |
M10X30 |
8 |
|||
|
50 |
GB/T93-1987 |
Washer |
10 |
22 |
|||
|
51 |
GB/T97.1-2002 |
washer |
10 |
14 |
|||
|
52 |
GB/T6170-2000 |
Nut |
M10 |
10 |
|||
|
53 |
JB/T8870 |
Hoop |
Ø70~85 |
3 |
|||
|
54 |
LG308.01-021 |
|
Air filter air outlet hose |
1 |
LG308 |
||
|
LG312.01-001 |
LG312 |
||||||
|
55 |
LG308.01-020 |
|
Air filter air inlet hose |
1 |
LG308 |
||
|
LG312.01-003 |
LG312 |
||||||
|
56 |
JB/T8870 |
Hoop |
Ø90~110 |
1 |
|||
|
57 |
X770062 |
|
Alarm |
1 |
|||
|
58 |
G068661 |
|
Air filter assembly |
1 |
|||
|
59 |
P778810 |
Clamp |
1 |
||||
|
60 |
GB/T5781-2000 |
Bolt |
M8X30 |
9 |
|||
|
61 |
LG308.01.03 |
|
Air filter bracket |
1 |
LG308 |
||
|
LG312.01.06 |
LG312 |
||||||
|
62 |
GB/T5782-2000 |
Bolt |
M12X65 |
2 |
|||
|
63 |
LG308.01.13 |
Water tank lower bracket |
1 |
||||
|
64 |
LG308.01-010 |
Bush |
2 |
||||
|
65 |
GB/T41-2000 |
Bolt |
M12 |
2 |
|||
|
66 |
GB/T96.1-2002 |
Washer |
12 |
2 |
|||
|
67 |
LG308.01.06Ⅰ |
|
Radiator assembly |
1 |
|||
|
68 |
CDM606.01.01.01 |
|
Vice water tank |
1 |
|||
|
69 |
LG308.01-002 |
Water tank outlet hose |
1 |
||||
|
70 |
JB/T8870 |
Hoop |
Ø45~55 |
2 |
|||
|
71 |
LG308.01-006 |
|
Water tank left upper bracket |
1 |
|||
|
72 |
LG308.01-003 |
|
Water tank right upper bracket |
1 |
|||
|
73 |
LG308.01.32 |
Throttle flexible shaft bracket |
1 |
||||
