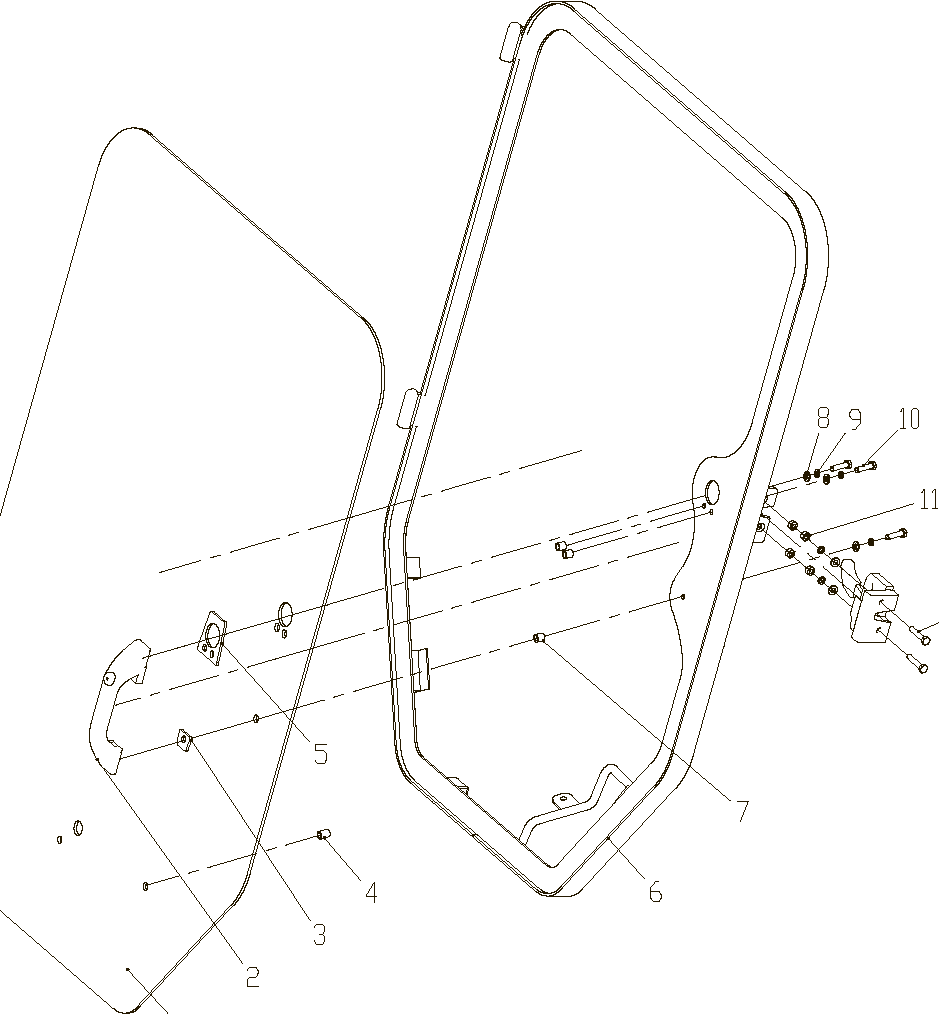

Door Assembly



Parts number

Part Description

Specification

Qty

Remarks

I

tem

1

LG308.12.04-007



Front door glass



1



2

NBS5031:-



Door lock



1



3

LG308.12.04-005



Door handle down board



1



4

LG308.12.04-006



Wiper washing connecting bush



1



5

LG308.12.04-004



Door handle top board



1



6

LG308.12.04.01



Front door weldment



1



7

LG308.12.04-003



Bush



3



8

GB/T97.1



Washer

6

5



9

GB/T93



Washer

6

5



10

GB/T5783



Bolt

M625

3



11

GB/T6170



Nut

M6

4



12

GB/T5783



Bolt

M630

2
