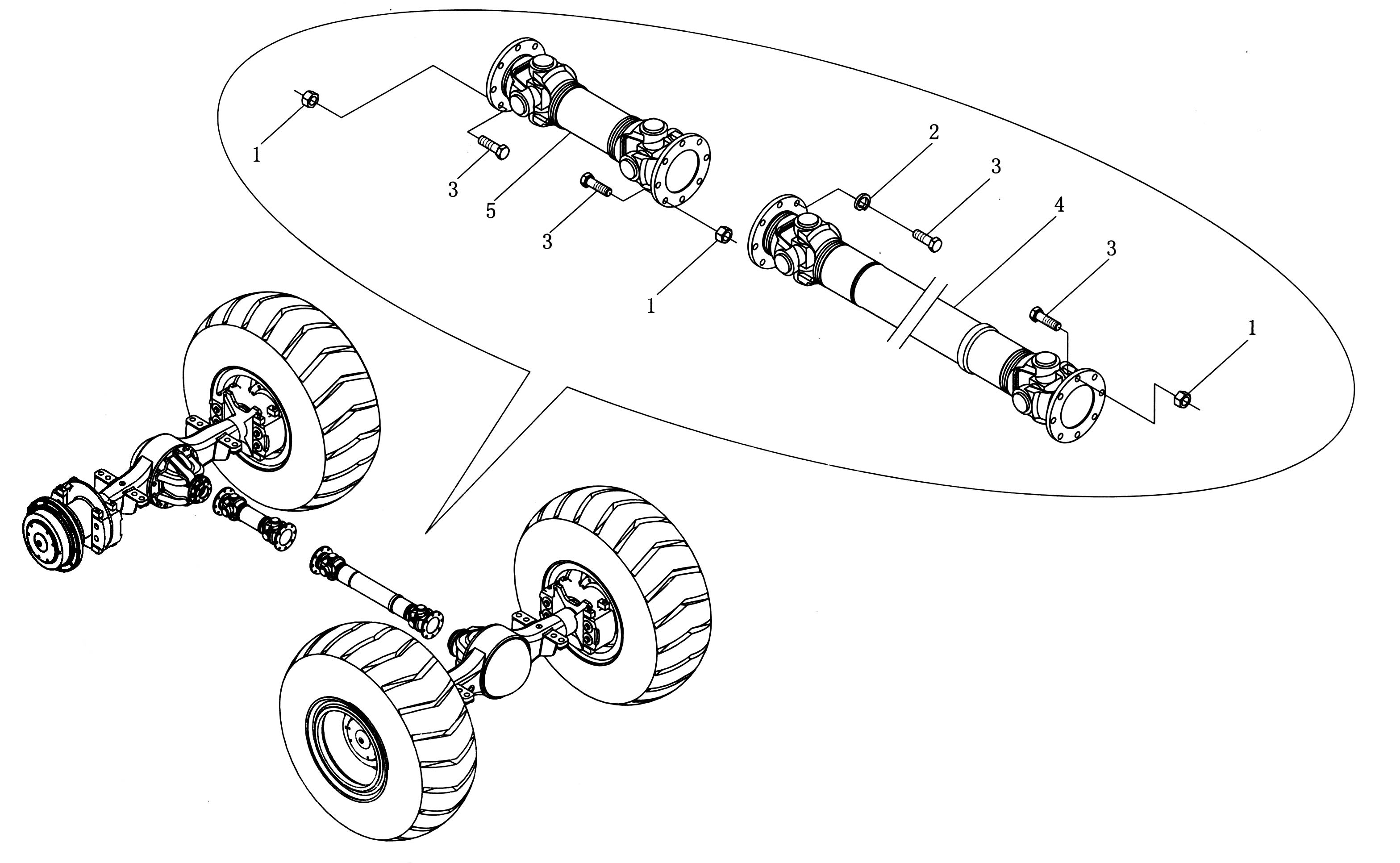

Drive Shaft Installation YTO–ZL50D-II

gNo.

Parts Name

Drawing No.

Qty.

Assembly No.

1

Nut M12×1.5-10

Washer 12-Zn.D

Bolt MM12×1.25×40-10.9

Front drive shaft

Rear drive shaft

GB 889-1986

24

ZL50TY·10·00

2

GB 93-1987

8

ZL50TY·10·00

3

GB 5786-1986

32

ZL50TY·10·00

4

ZL50C.10.1

1

ZL50TY·10·00

5

ZL50C.11.1

1

ZL50TY·10·00
