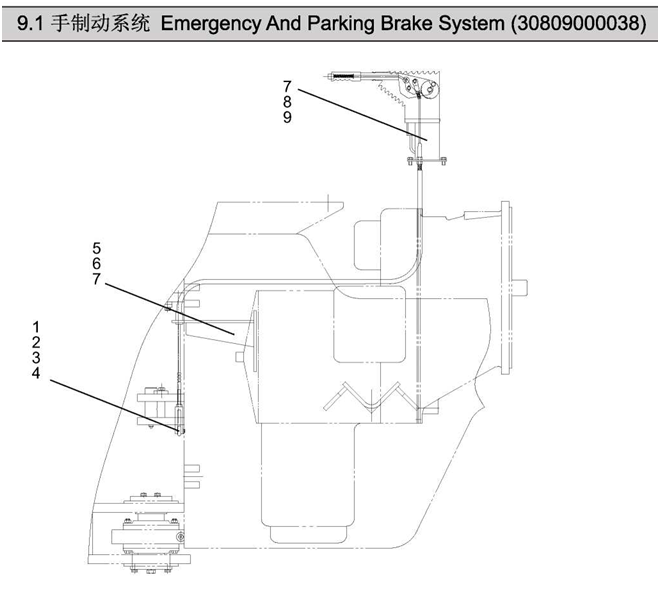

EmergencyAndParkingBrakeSystem

EmergencyAndParkingBrakeSystem



Item



Coding



Part Description



Specification



Qty



Original NO./Remarks

1

30809100017

软轴连接叉

Soft shaft connection fork



1

LG853.09-001

2

51512170101

开口销

Cotter

3x30

1

GB/T91

3

51421100115

垫圈

Washer

10

1

GB/T97.1

4

51511061504

销轴

Pin

10 x 35

1

GB/T882B 型

5

30809000012

软轴固定架焊合

Soft shaft mount weldment



1

LG853.09.01

6

51204101414

螺栓

Bolt

M1〇x 40-8.8

2

GB/T5783

7

51401100107

垫圈

Washer

10

6

GB/T93

8

51204101114

螺栓

Bolt

M1〇x 25-8.8

4

GB/T5783

9

60206800004

手刹总成

Hand brake assembly



1

CDM853.09II.01
