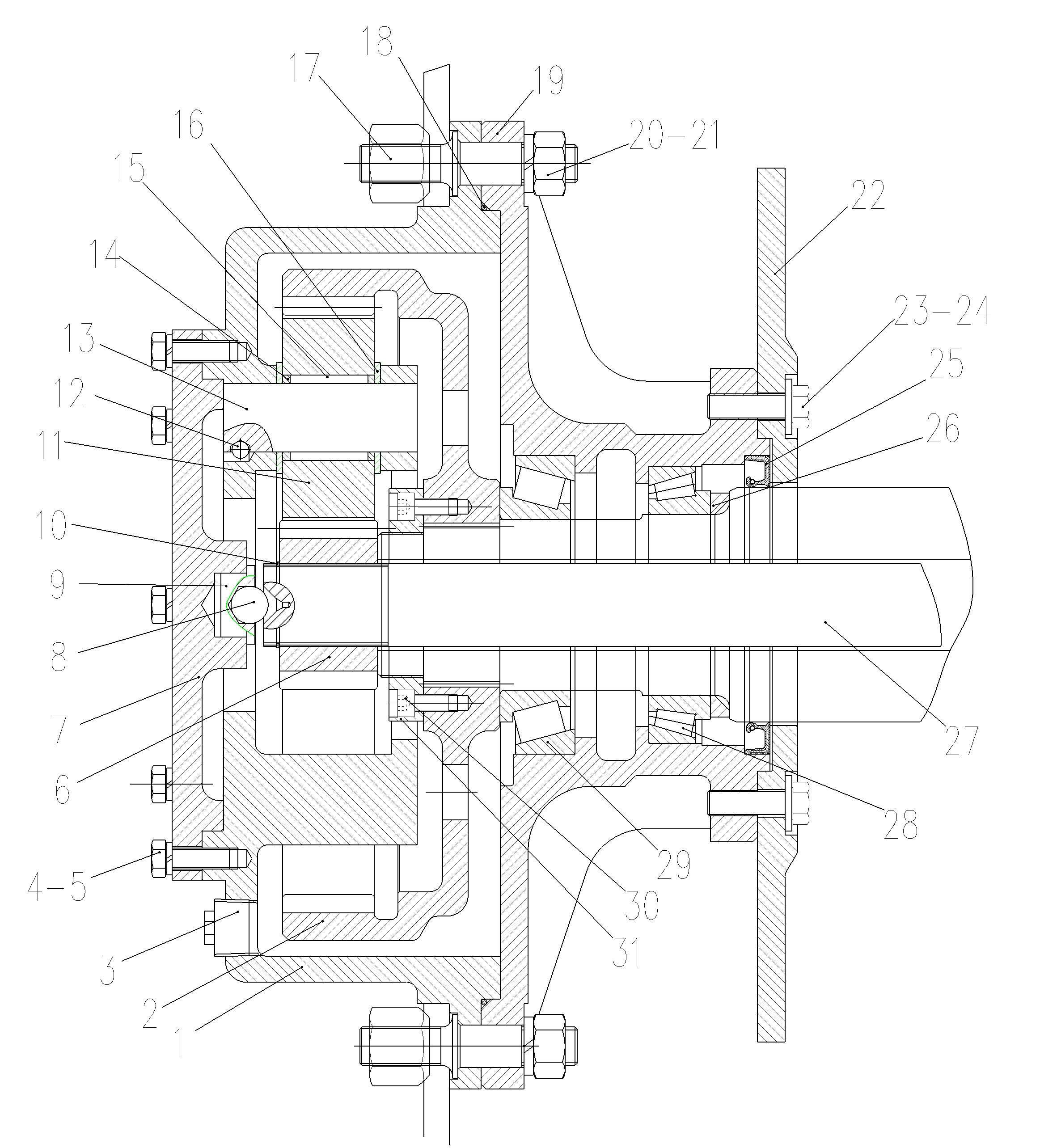

FINAL DRIVE ASSEMBLY LG918

Key Part No.   Description Spare parts Y/N Oty
1 29070010371   PLANET PINION CAIIIER Y 1

2

29070010381

内齿圈

INTERNAL GEAR RING

Y

1

3

4120000080

螺塞Q/ZB286-ZG3/4"-Q235A

PLUG Q/ZB286-ZG3/4"-Q235A

Y

1

4

4011000084

螺栓GB5783-M10*30EpZn-8.8

BOLT GB5783-M10*30EpZn-8.8

N

8

5

4015000025

垫圈GB93-10-65Mn

WASHER GB93-10-65Mn

N

8

6

29070010391

太阳轮

GEAR-SUN

Y

1

7

29070010401

轮边端盖

RIM COVER GB308-17.462-GCr15

Y

1

8

4090000006

钢球GB308-17.462-GCr15

STEEL BALL GB308-17.462-GCr15

Y

1

9

29070009161

定位块

LOCK BLOCK

Y

1

10

4015000257

挡圈GB894.1-38-65Mn

CHECK RING GB894.1-38-65Mn

N

1

11

29070010411

行星齿轮

PLANET GEAR

Y

3

12

4090000007

钢球GB308-8-GCr15

STEEL BALL GB308-8-GCr15

N

3

13

29070010421

行星齿轮轴

PLANET PINION SHAFT

Y

3

14

3050900042

挡环

RING SNAP

Y

6

15

4090000001

滚针GB309-4*35-GCr15

ROLLER GB309-4*35-GCr15

Y

84

16

29070010881

垫片

SPECER

Y

6

17

29070010441

轮辋螺栓

RIM BOLT

Y

8

18

3050900045

O形圈

O-RING

Y

1

19 29070010461   HUB WHEEL Y 1

20

4013000136

螺母GB6171-M18*1.5EpZn-8

NUT GB6171-M18*1.5EpZn-8

N

8

21

4015000029

垫圈GB93-18-65Mn

WASHER GB93-18-65Mn

N

8

22

29070010481

制动盘

BRAKE DISC

Y

1

23

4011000568

螺栓GB5786-M12*1.25*40EpZn-10.9

BOLT GB5786-M12*1.25*40EpZn-10.9

N

16

24

29070010131

垫圈

WASHER

N

16

25

4030000559

密封圈GB9877.1-FB110*140*12D

SEAL RING GB9877.1-FB110*140*12D

Y

1

26

29070010491

轴承隔套

BEARING SLEEVE

Y

1

27

29070010501

半轴

DIFFERENTIAL AXLE

Y

1

28

4021000135

滚动轴承GB297-32017

BEARING GB297-32017

Y

1

29

4021000036

滚动轴承GB297-32216

BEARING GB297-32216

Y

1

30

4014000118

螺钉GB70-M8*1*20-8.8

SCREW GB70-M8*1*20-8.8

N

2

31

29070010511

圆螺母

ROUND NUT

Y

1
