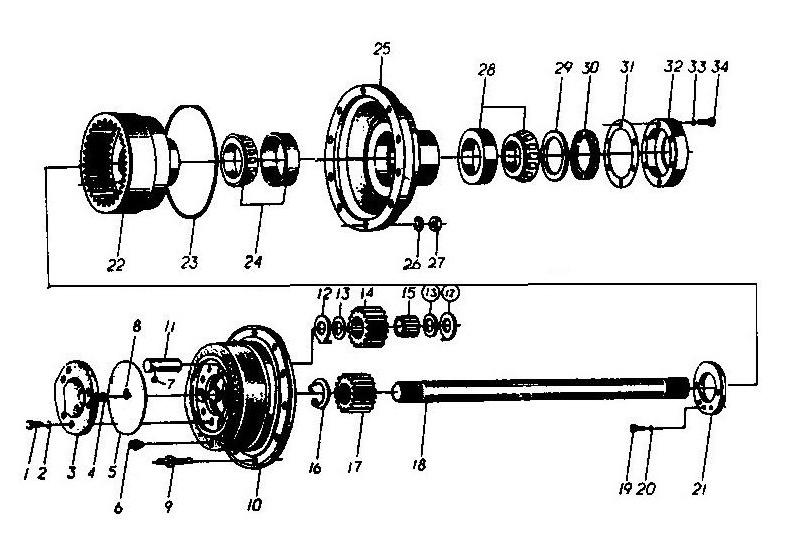

FINAL DRIVE ASSEMBLY LG936

KEY

PART NO.

DESCRIPTION

QTY

REMARKS

1

4011000084

螺栓 GB5783-M10*30EpZn-8.8

BOLT

10

2

4015000025

垫圈 GB93-10-65Mn

WASHER

10

3

2907000767

盖

COVER

1

4

2907000916

定位块

LOCK BLOCK

1

5

2907000768

O 型密封圈

O－RING

1

6

4120000080

螺塞 Q/ZB286-ZG3/4"-Q235A

PLUG

1

7

4090000007

钢球 GB308-8-GCr15

STEEL BALL

3

8

4090000006

钢球 GB308-17.462-GCr15

STEEL BALL

1

9

3050900044

轮辋螺栓

RIM BOLT

10

10

2907000766

行星轮架

CARRIER OF PLANT GEAR

1

11

3050900043

行星齿轮轴

PLANT GEAR SPINDLE

3

12

3050900052

垫片

SPACER

6

13

3050900042

挡环

RING SNAP

6

14

3050900041

行星齿轮

PLANET GEAR

3

15

4090000003

滚针 GB309-4*38-GCr15

ROLLER

84

16

4015000046

挡圈 GB894.1-50-65Mn

RING SNAP GB894.1-50-65Mn

1

17

3050900040

太阳轮

GEAR－SUN

1

18

3050900050

半轴

DIFFERENTIAL AXLE

1

19

4014000118

螺钉 GB70-M8*1*20-8.8

SCREW GB70-M8*1*20-8.8

1

20

4015000036

垫圈 GB93-8-65Mn

WASHER

1

21

3050900047

圆螺母

ROUND NUT

1

22

3050900037

内齿轮

AXLE RING GEAR

1

23

3050900045

O 形圈

O－RING

1

24

4021000044

滚动轴承 GB297- 32220

ROLLING BEARING GB297- 32220

1

25

3050900046

轮毂

HUB WHEEL

1

26

4015000029

垫圈 GB93-18-65Mn

WASHER GB93-18-65Mn

10

27

4013000136

螺母 GB6171-M18*1.5EpZn-8

NUT GB6171-M18*1.5EpZn-8

10

28

4021000045

滚动轴承 GB297-32021

ROLLING BEARING GB297-32021

1

29

3050900051

轴承隔套

BEARING COWL

1

30

4030000046

骨架油封 HG4-692-PD130*160*12

FRAME OIL SEAL

1

31

3050900048

垫片

BACKUP PLATE

1

32

3050900049

油封端盖

OIL SEAL COVER

1

33

4015000036

垫圈 GB93-8-65Mn

WASHER GB93-8-65Mn

6

34

4011000195

螺栓 GB5783-M8*35EpZn-8.8

BOLT GB5783-M8*35EpZn-8.8

6
