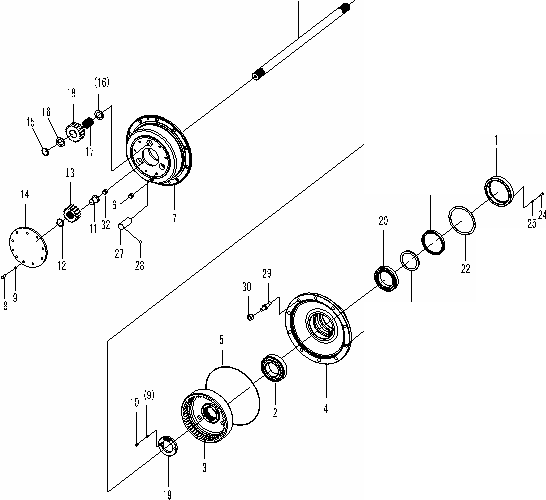

FINAL DRIVE ASSEMBLY LG952

KEY

PART NO.

DESCRIPTION

QTY

REMARKS

1

2907000047

油封端盖

COVER OF OIL SAL

1

HT150

2

4021000037

滚动轴承 GB297-32221

BEARING GB297-32221

1

3

2907000048

驱动桥内齿轮

AXLE RING GEAR

1

40Cr

4

2907000049

轮毂

HUB WHEAL

1

QT400-18

5

4041000020

O 形圈 LGB308-440*3.5

O-RING LGB308-440*3.5

1

6

4120000080

螺塞 Q/ZB286-ZG3/4"-Q235A

PLUG Q/ZB286-ZG3/4"-Q235A

1

7

2907000765

行星轮架

PLANET PINION CARRIER

1

QT400-18

8

4011000084

螺栓 GB5783-M10*30EpZn-8.8

BOLT GB5783-M10*30EpZn-8.8

10

9

4015000025

垫圈 GB93-10-65Mn

WASHER GB93-10-65Mn

11

10

4014000016

螺钉 GB70-M10*1*20EpZn-8.8

SCREW GB70-M10*1*20EpZn-8.8

1

11

2907000916

定位块

LOCK BLOCK

1

45

12

4015000022

挡圈 GB894.1-52-65Mn

RING SNAP GB894.1-52-65Mn

1

13

2907000051

太阳齿轮

GEAR-SUN

1

30CrMnTi

14

2907000762

盖

COVER

1

HT200

15

2907000054

垫片

SPACER

6

40Cr

16

2907000055

挡环

RING SNAP

6

GCr15

17

4090000004

滚针 GB309-5*45-GCr15

ROLLER GB309-5*45-GCr15

93

18

2907000056

行星齿轮

PLANET GEAR

3

30CrMnTi

19

2907000057

圆螺母

ROUND NUT

1

35

20

4021000034

滚动轴承 GB297-32028

BEARING GB297-32028

1

21

2907000058

隔套

ISOLATED BUSHING

1

45

22

2907000059

密封垫

SPACER

1

耐油橡胶

23

4030000146

油封 HG4-692-SG170*200*15

OIL SEAL HG4-692-SG170*200*15

1

24

4011000298

螺栓 GB5782-M8*45EpZn-8.8

BOLT GB5782-M8*45EpZn-8.8

6

25

4015000036

垫圈 GB93-8-65Mn

WASHER GB93-8-65Mn

6

26

2907000060

半轴

DIFFERENTIAL AXLE

1

30CRMNTI

27

2907000061

行星齿轮轴

PLANET PINION SHAFT

3

20CRMNTI

28

4090000008

钢球 GB308-9.525-GCr15

STEEL BALL GB308-9.525-GCr15

3

29

2907000062

轮辋螺栓

RIM BOLT

10

40Cr

30

4013000039

螺母 GB6171-M20*1.5EpZn-8

NUT GB6171-M20*1.5EpZn-8

10

31

4015000030

垫圈 GB93-20-65Mn

WASHER GB93-20-65Mn

10

32

4090000006

钢球 GB308-17.462-GCr15

STEEL BALL GB308-17.462-GCr15

1
