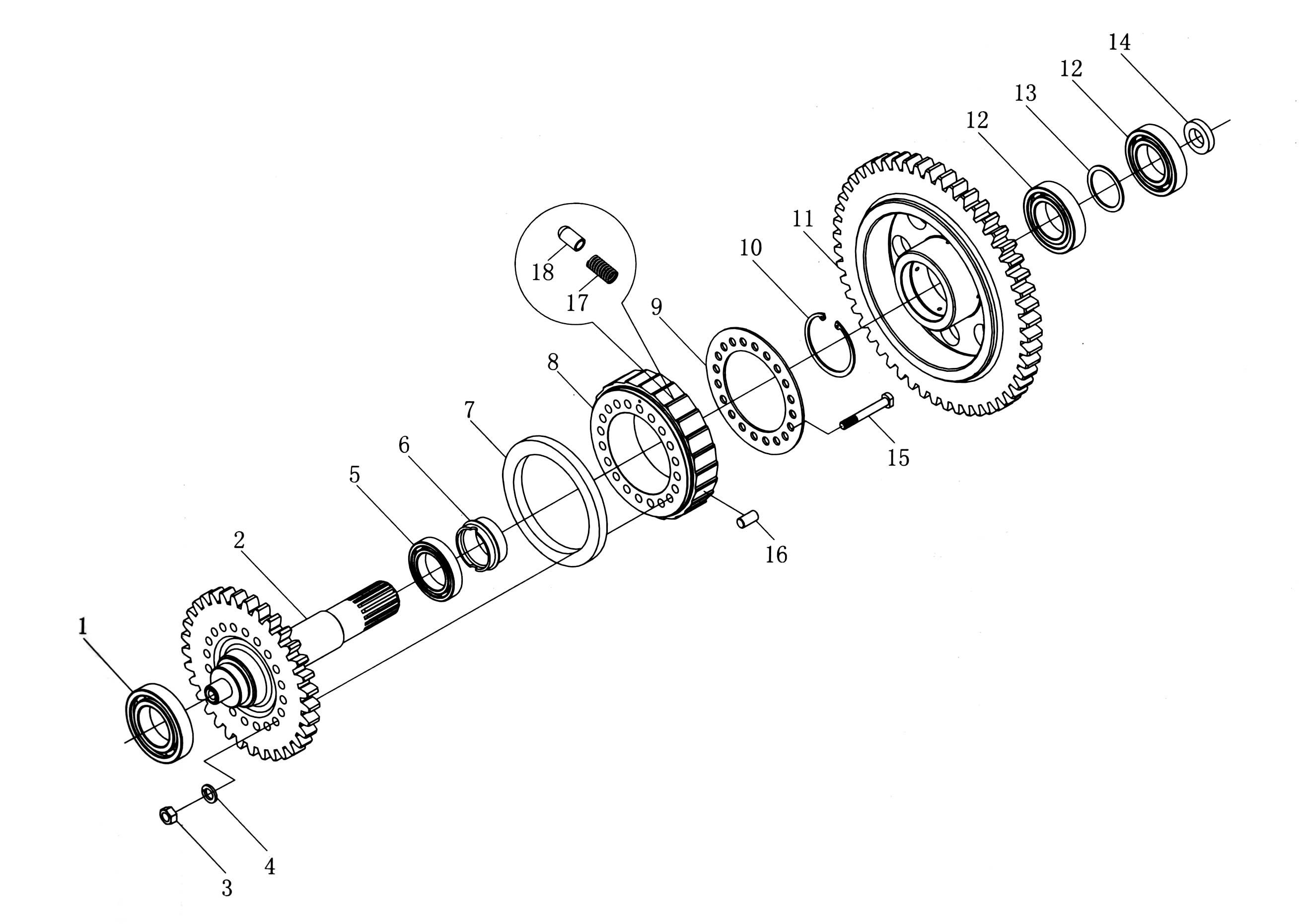

Gearbox (Ⅱ) 2nd Shaft Assy YTO–ZL50D-II

No.

Parts Name

Drawing No.

Qty.

Assembly No.

1

Ball bearing 211(55×100×21)

Central inlet shaft

Nut M10×1

Washer 10

Ball bearing110 (50×80×16)

Separation cover

Roller left retaining ring

Inner wheel

Roller right retaining ring

Retaining ring 80

Outer gear

Ball bearing210 (50×90×20)

Separation ring

Adjusting ring

Bolt

Roller φ15×32

Spring

Spring seat

GB 276-89

1

ZL50TY.04.02

2

403203

1

ZL50TY.04.02

3

GB 6171-86

20

ZL50TY.04.02

4

GB 859-87

20

ZL50TY.04.02

5

GB 276-89

1

ZL50TY.04.02

6

403210

1

ZL50TY.04.02

7

403205A

1

ZL50TY.04.02

8

403209

1

ZL50TY.04.02

9

403206

1

ZL50TY.04.02

10

GB 893.1-86

1

ZL50TY.04.02

11

403208A

1

ZL50TY.04.02

12

GB 276-89

2

ZL50TY.04.02

13

403211

1

ZL50TY.04.02

14

403212

1

ZL50TY.04.02

15

403201

20

ZL50TY.04.02

16

403207A

20

ZL50TY.04.02

17

403204A

40

ZL50TY.04.02

18

403202A

40

ZL50TY.04.02
