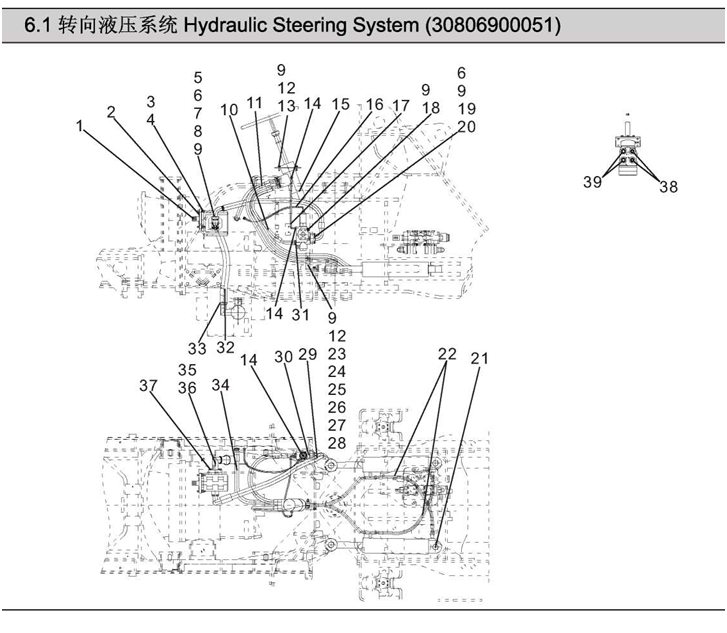

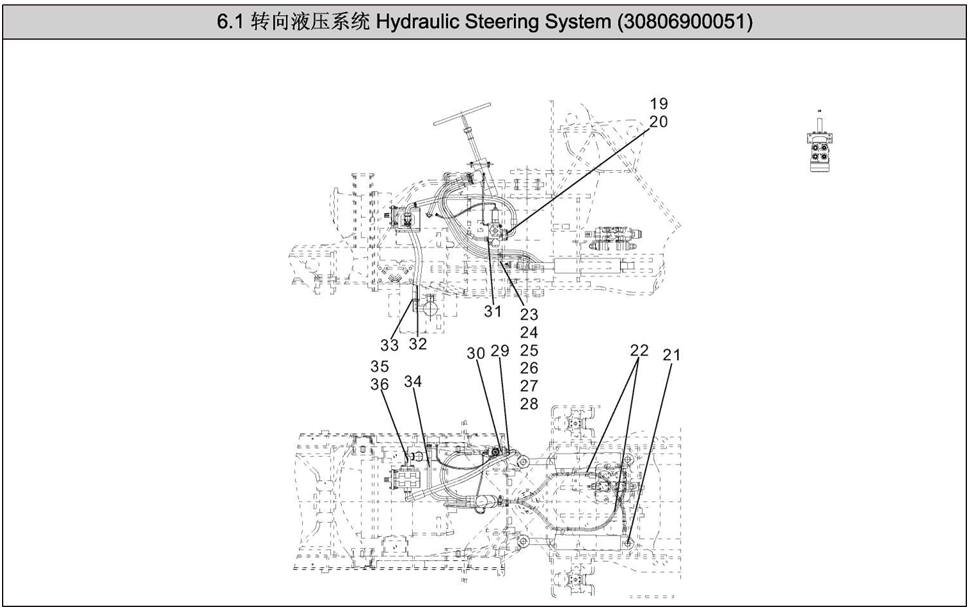

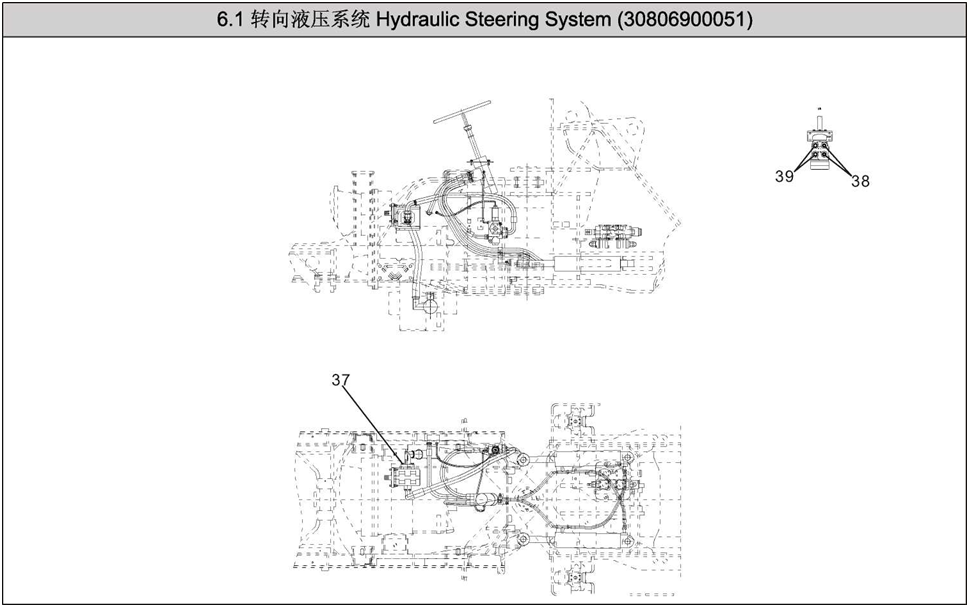

HydraulicSteeringSystem

HydraulicSteeringSystem

Item

Coding



Part Description

Specification

Qty

Original NO./Remarks

1

60301000041

齿轮泵总成

Gear pump assembly



1

LG853.06.08

2

60922010004

密封垫片

Seal gasket



1

LG853.06-001

3

51307001119

螺母

Nut

M12-8

4

GB/T6170

4

51401110107

垫圈

Washer

12

8

GB/T93

5

30893000011

钢管焊合

Pipe weldment



1

LG50EX.06.03

6

51204101314

螺栓

Bolt

M1〇x 35-8.8

8

GB/T5783

7

56900001001

0形圈

O-ring

37.69 x 3.53

1

AS568

8

30807100343

压板

Press plate



2

LG853.07-007

9

51401100107

垫圈

Washer

10

17

GB/T93

10

17272008039

胶管总成

Hose assembly



1

20411-27T/20431-27T*2S12*840+RC

11

17272008040

胶管总成

Hose assembly



2

20411-20GB/20441-20GB*2W08*1350+RC

12

51421100115

垫圈

Washer

10

6

GB/T97.1

13

51204101214

螺栓

Bolt

M10 X 30-8.8

4

GB/T5783

14

17601001619

过渡接头

Transition connector



3

L1CH-12-14

15

30806000044

全液压转向机总成

Hydraulic steering gear



1

LG853.06.02

16

17272008041

胶管总成

Hose assembly



1

20491-14*2W05*540/90o+RC

17

17272006404

胶管总成

Hose assembly



1

20491-14*2W05*880/270o+RC

18

51203102614

螺栓

Bolt

M10 x 100-8.8

2

GB/T5782

19

30806100090

压板

Press plate



2

LG853.06-004

20

56900000401

0形圈

О-ring

32.92 x 3.53

2

AS568

21

16608040050

油缸

Cylinder

Ф90/Ф45

2

ZL40-630000C~LG853.06.03

22

17272004209

胶管总成

Hose assembly



2

20441-20GB*2W08*590+RC

23

51204101014

螺栓

Bolt

M10 X 20-8.8

2

GB/T5783

24

51307001019

螺母

Nut

M10-8

1

GB/T6170

25

51204101714

螺栓

Bolt

M1〇x 55-8.8

1

GB/T5783

26

30806100082

压板

Press plate



1

LG853.06-009

27

30806100080

橡胶管夹

Rubber pipe clamp



1

LG853.06-007

28

30806100081

支撑架

Support bracket



1

LG853.06-008

29

17272008042

胶管总成

Hose assembly



1

20481-36T/87391-16*R1716*980+RC

30

60304000043

优先阀总成

Priority valve assembly



1

LG853.06.09 / VLE-150/882-5902-059

31

17601001234

过渡接头

Transition connector



1

L1CH-27-33

32

60911010190

胶管

Hose

38 x 600

1

Q/(HG4)JG21

33

56171002701

喉箍

Hoop

d60

2

JB/T8870

34

17272004067

胶管总成

Hose assembly



1

20411-27T/20491-27T*2S12*1100+RC

35

30893900004

钢管焊合

Pipe weldment



1

LG853.06.07

36

56900001101

0形圈

O-ring

47.22 x 3.53

1

AS568

37

51203111314

螺栓

Bolt

M12 x 35-8.8

4

GB/T5782

38

17601001620

过渡接头

Transition connector



2

L1CH-20GB

39

17601001233

过渡接头

Transition connector



2

L1CH-27-20
