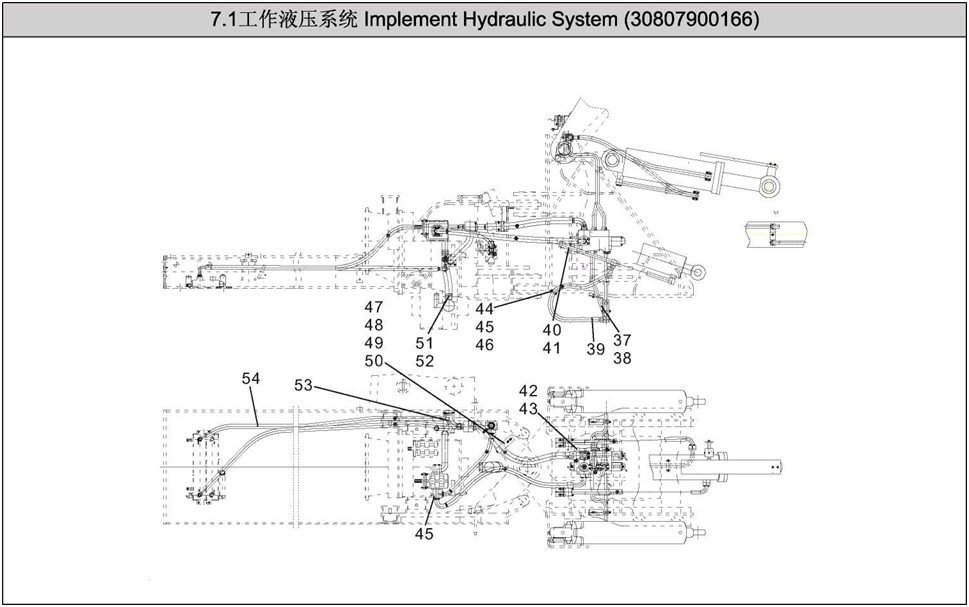

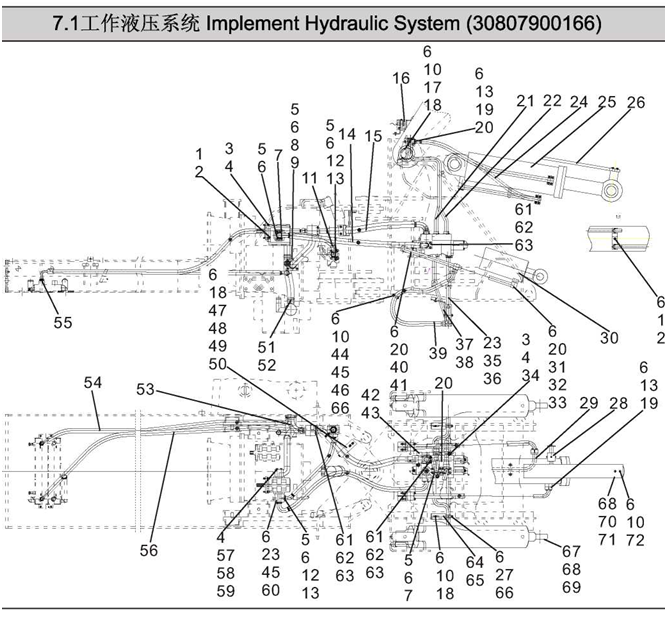

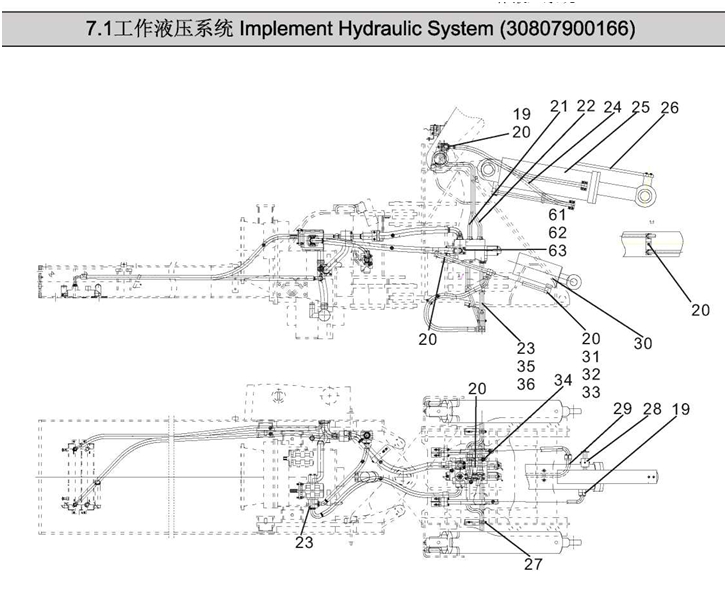

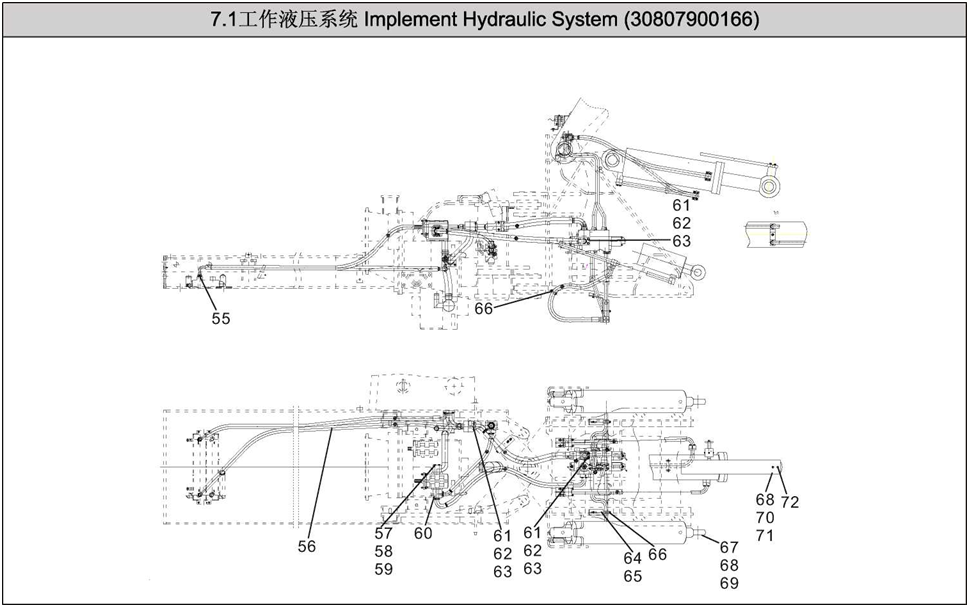

Implement Hydraiulic System
|
Item |
Coding |
|
Implement Hydraiulic System Part Description |
Specification |
Qty |
Original NO./Remarks |
|
1 |
60301000042 |
齿轮泵总成 |
Gear pump assembly |
1 |
LG853.07.22 |
|
|
2 |
60922010004 |
密封垫片 |
Seal shim |
1 |
LG853.06-001 |
|
|
3 |
51307001119 |
螺母 |
Nut |
M12-8 |
7 |
GB/T6170 |
|
4 |
51401110107 |
垫圈 |
Washer |
12 |
15 |
GB/T93 |
|
5 |
51204101314 |
螺栓 |
Bolt |
M1〇x 35-8.8 |
40 |
GB/T5783 |
|
6 |
51401100107 |
垫圈 |
Washer |
10 |
90 |
GB/T93 |
|
7 |
30807100343 |
压板 |
Press plate |
7 |
LG853.07-007 |
|
|
8 |
30807100830 |
压板 |
Press plate |
1 |
LG853.07-001 |
|
|
9 |
56145013601 |
0形圈 |
O-ring |
58x3.55 |
1 |
GB/T3452.1 |
|
10 |
51421100115 |
垫圈 |
Washer |
10 |
14 |
GB/T97.1 |
|
11 |
17272008021 |
胶管总成 |
Hose assembly |
1 |
87311-16/87341-16*R1716*750+RC |
|
|
12 |
30806100090 |
压板 |
Press plate |
2 |
LG853.06-004 |
|
|
13 |
56900000401 |
0形圈 |
O-ring |
32.92 x 3.53 |
8 |
AS568 |
|
14 |
17272008022 |
胶管总成 |
Hose assembly |
1 |
87301-20a115o/87391-24*4SH20*1450+RC |
|
|
15 |
17272008023 |
胶管总成 |
Hose assembly |
1 |
87341-24/87391-24*2W24*1050/270o+RC |
|
|
16 |
30807000203 |
动臂提升限位装置总成 |
Lifting limit device |
1 |
CDM853.07III.10 |
|
|
17 |
30807000076 |
固定架 |
Fixed bracket |
2 |
LG855T.07.25 |
|
|
18 |
51204101114 |
螺栓 |
Bolt |
M1〇x 25-8.8 |
12 |
GB/T5783 |
|
19 |
17601001217 |
法兰 |
Flange |
4 |
FL-16 |
|
|
20 |
51204101214 |
螺栓 |
Bolt |
M1〇x 30-8.8 |
33 |
GB/T5783 |
|
21 |
30893000399 |
钢管焊合 |
Pipe assembly |
1 |
CDM853.07III.02 |
|
|
22 |
30893000400 |
钢管焊合 |
Pipe assembly |
1 |
CDM853.07III.03 |
|
|
23 |
56900001001 |
0形圈 |
O-ring |
37.69 x 3.53 |
8 |
AS568 |
|
24 |
17272007569 |
胶管总成 |
Hose assembly |
2 |
87311-16/87391-16*R1716*1350+RC |
|
|
25 |
16608106140 |

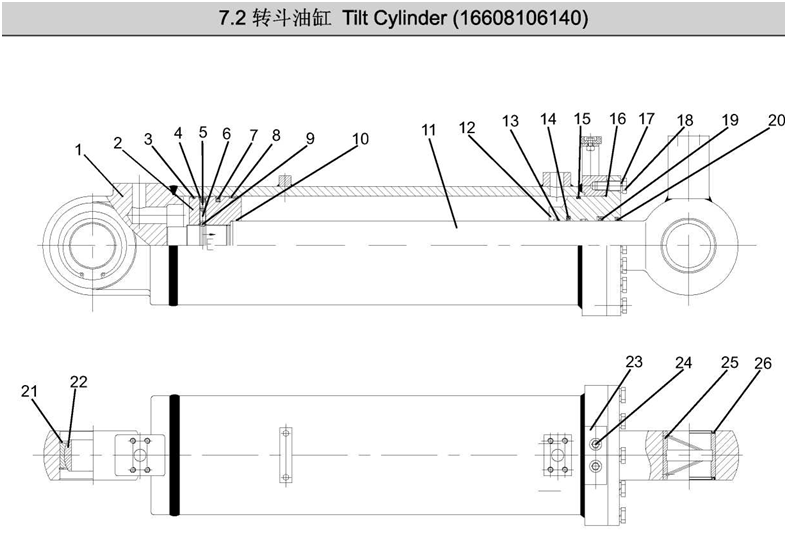

油缸 |
Cylinder |
Ф180/Ф90 |
1 |
CDM853.07m.20 |
|
26 |
30807000029 |
转斗油缸保护板组件总成 |
Guard shield oftilt cylinder |
1 |
CDM856E.07I.09 |
|
|
27 |
51203102014 |
螺栓 |
Bolt |
M10 X 70-8.8 |
6 |
GB/T5782 |
|
28 |
30807000030 |
转斗自动放平装置总成 |
Tilt automatic flat device |
1 |
CDM856E.07I.07 |
|
|
29 |
30893000208 |
钢管焊合 |
Pipe weldemnt |
1 |
LG855T.07.04 |
|
|
30 |
16608100040 |
油缸 |
Cylinder |
Ф160/Ф80 |
2 |
LG853.720000B〜LG853.07.02 |
|
31 |
30893900018 |
钢管焊合 |
Pipe weldemnt |
1 |
LG853.07.25 |
|
|
32 |
56900000201 |
0形圈 |
O-ring |
24.99 x 3.53 |
4 |
AS568 |
|
33 |
30893900009 |
钢管焊合 |
Pipe assembly |
1 |
LG853.07.10 |
|
|
34 |
51203113114 |
螺栓 |
Bolt |
M12 x 180-8.8 |
3 |
GB/T5782 |
|
35 |
30893000401 |
钢管焊合 |
Pipe assembly |
1 |
CDM853.07III.12 |
|
|
36 |
30893900011 |
钢管焊合 |
Pipe assembly |
1 |
LG853.07.13 |
|
|
37 |
30893000403 |
钢管焊合 |
Pipe assembly |
1 |
CDM853.07III.14 |
|
|
38 |
30893000404 |
钢管焊合 |
Pipe assembly |
1 |
CDM853.07III.15 |
|
|
39 |
17272004127 |
胶管总成 |
Hose assembly |
4 |
20411-36T/20441-36T*R1716*1520+RC |
|
|
40 |
30893900015 |
钢管焊合 |
Pipe assembly |
1 |
LG853.07.17 |
|
|
41 |
30893900014 |
钢管焊合 |
Pipe assembly |
1 |
LG853.07.16 |
|
|
42 |
60304000041 |
液控多路阀 |
Hydraulic distribution valve |
1 |
LG50EX.07.04 |
|
|
43 |
30807000202 |
先导操纵总成 |
Piolt control assembly |
1 |
CDM853.07III.11 |
|
|
44 |
30807102802 |
管夹 |
Pipe clamp |
2 |
LG855.07-001 |
|
|
45 |
51203102214 |
螺栓 |
Bolt |
M1〇x 80-8.8 |
4 |
GB/T5782 |
|
46 |
30808101988 |
管夹压板 |
Pipe clamp press plate |
4 |
LG855.07-006 |
|
|
47 |
30807100427 |
回油胶管固定板 |
Oil return hose fixed board |
1 |
LG853.07-019 |
|
|
48 |
51203101714 |
螺栓 |
Bolt |
M1〇x 55-8.8 |
2 |
GB/T5782 |
|
49 |
30807100428 |
橡胶管夹 |
Rubber pipe clip |
1 |
LG853.07-020 |
|
|
50 |
30807100429 |
压板 |
Press plate |
1 |
LG853.07-021 |
|
|
51 |
60911010191 |
胶管 |
Hose |
45 x 500 |
1 |
Q/(HG4)JG21 |
|
52 |
56930000101 |
管夹 |
Pipe clamp |
Ф44-64 |
2 |
JB/ZQ3777 |
|
53 |
30893000405 |
钢管焊合 |
Pipe weldment |
1 |
CDM853.07III.04 |
|
|
54 |
17272001754 |
胶管总成 |
Hose assembly |
1 |
20491-27T*2N12*2600/270° +RC |
|
|
55 |
17601001235 |
过渡接头 |
Transition connector |
2 |
L1CH-27D |
|
|
56 |
17272008035 |
胶管总成 |
Hose assembly |
1 |
20411-36T/20491-36T*1W16*3000+RC |
|
|
57 |
51203112314 |
螺栓 |
Bolt |
M12 x 85-8.8 |
4 |
GB/T5782 |
|
58 |
56145015401 |
0形圈 |
O-ring |
51.5 x 3.55 |
1 |
GB/T3452.1 |
|
59 |
30893900017 |
钢管焊合 |
Pipe weldment |
1 |
LG853.07.21 |
|
|
60 |
30807100430 |
合流法兰块 |
Interflow flange block |
1 |
LG853.07-017 |
|
|
61 |
17601001460 |
法兰 |
Flange |
3 |
FL-24 |
|
|
62 |
56145012501 |
0形圈 |
O-ring |
47.5 x 3.55 |
3 |
GB/T3452.1 |
|
63 |
51204111314 |
螺栓 |
Bolt |
M12 x 35-8.8 |
12 |
GB/T5783 |
|
64 |
30807100000 |
钢管固定板 |
Pipe fixed plate |
2 |
LG853.07-011 |
|
|
65 |
30807100366 |
压板 |
Press plate |
4 |
LG853.07-012 |
|
|
66 |
51307001019 |
螺母 |
Nut |
M10-8 |
4 |
GB/T6170 |
|
67 |
30807100341 |
动臂油缸连接密封座 |
Lift cylinder connecting seal seat |
4 |
LG853.07-006 |
|
|
68 |
56145013901 |
0形圈 |
O-ring |
95 x 5.3 |
6 |
GB/T3452.1 |
|
69 |
56145013701 |
0形圈 |
O-ring |
71 x 5.3 |
4 |
GB/T3452.1 |
|
70 |
56145013801 |
0形圈 |
O-ring |
80 x 5.3 |
2 |
GB/T3452.1 |
|
71 |
30807100361 |
转斗油缸连接密封座 |
Tilt cylinder connecting seal seat |
2 |
LG853.07-005 |
|
|
72 |
51204101014 |
螺栓 |
Bolt |
M10 X 20-8.8 |
2 |
GB/T5783 |
