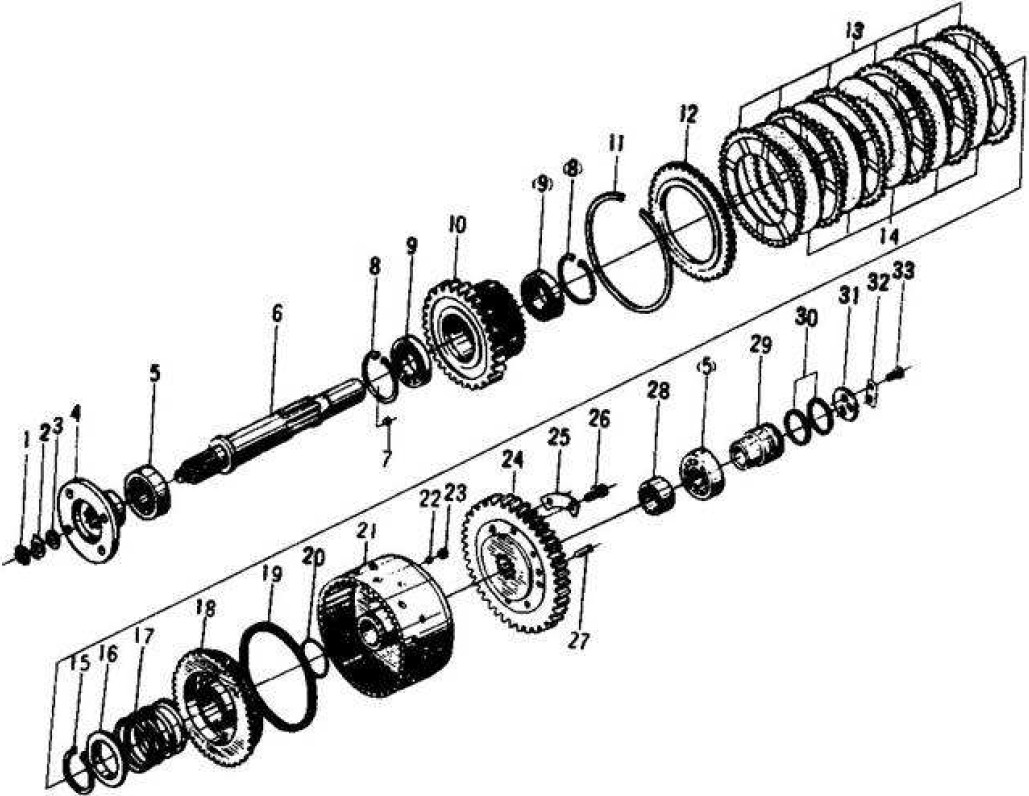

INPUT SHAFT Assembly (330101) LG933

2

4015000285

垫圈GB858－20

WASHER GB858－20

N

1

3

4110000038171

垫圈 ZL20-032011 20

WASHER 20

Y

1

4

4110000038172

凸缘总成 ZL20-030061X1

FLANGE ASSEMBLY

Y

1

5

4021000185

轴承GBT297－7507

BEARING GBT297－7507

Y

2

6

4110000038174

输入轴 ZL20-032008

INPUT SHAFT

Y

1

7

4110000038175

闷塞 ZL20-032009 9

PLUG 9

Y

1

8

4015000221

挡圈GB893.2-75*2.5-65Mn

RING SNAP GB893.2-75*2.5-65Mn

N

2

9

4021000183

轴承GB276-109

BEARING GB276-109

Y

2

10

4110000038178

齿轮 ZL20-032007X1 (Z = 33 )

GEAR

Y

1

11

4110000038179

挡圈 ZL20-032101

RING SNAP

Y

1

12

4110000038180

外端盖 ZL20-032102

EXTERNAL COVER

Y

1

13

4110000038181

外摩擦片 1201-0007A

EXTERNAL FRICTION BLOCK 1201-0007A

Y

6

14

4110000038182

内摩擦片 ZL20-032103

INTERNAL FRICTION BLOCK

Y

5

15

4015000284

挡圈GB894.2-60-65Mn

RING SNAP GB894.2-60-65Mn

N

1

16

4110000038184

弹簧座 ZL20-032110

SPRING SEAT

Y

1

17

4110000038185

弹簧 ZL20-032108

SPRING

Y

1

18

4110000038186

活塞 ZLZO-032106

PISTON

Y

1

19

4110000038187

封油圈 ZL20-032107

OIL SEAL RING

Y

1

20

4030000638

O形圈GB1235-6.0*3.1

O-RING GB1235-6.0*3.1

Y

1

21

4110000038189

离合器壳体总成 ZL20-032105

CLUTCH SUMP ASS’Y

Y

1

22

4090000126

钢球GB308-5-GCr15

STEEL BALL GB308-5-GCr15

N

1

23

4110000038191

阀座 ZL20-032109

VALVE SEAT

Y

1

24

4110000038192

齿轮 ZL20-032010X1 ( Z = 46 )

GEAR

Y

1

26

4011000082

螺栓GB5783-M10*25EpZn-8.8

BOLT GB5783-M10*25EpZn-8.8

N

8

27

4016000125

销GB119.2-12h8*22-B

PIN GB119.2-12h8*22-B

N

2

28

4110000038196

轴套 ZL20-032004

SHAFT BUSHING

Y

1

29

4110000038197

内封油套 ZL20-032003

INTERNAL OIL SEAL BUSHING

Y

1

30

4110000038198

活塞环(Φ52)CA10-350914-A

PISTON RING Ф52

Y

2

31

4110000038199

轴端档板 Zl20-032002A

SHAFT PAD SNAP

Y

1

32

4110000038200

止动阀 ZL20-032001

STOP SPACER

Y

1

33

4011000632

螺栓GB5783-M8*16-8.8

BOLT GB5783-M8*16-8.8

N

2
