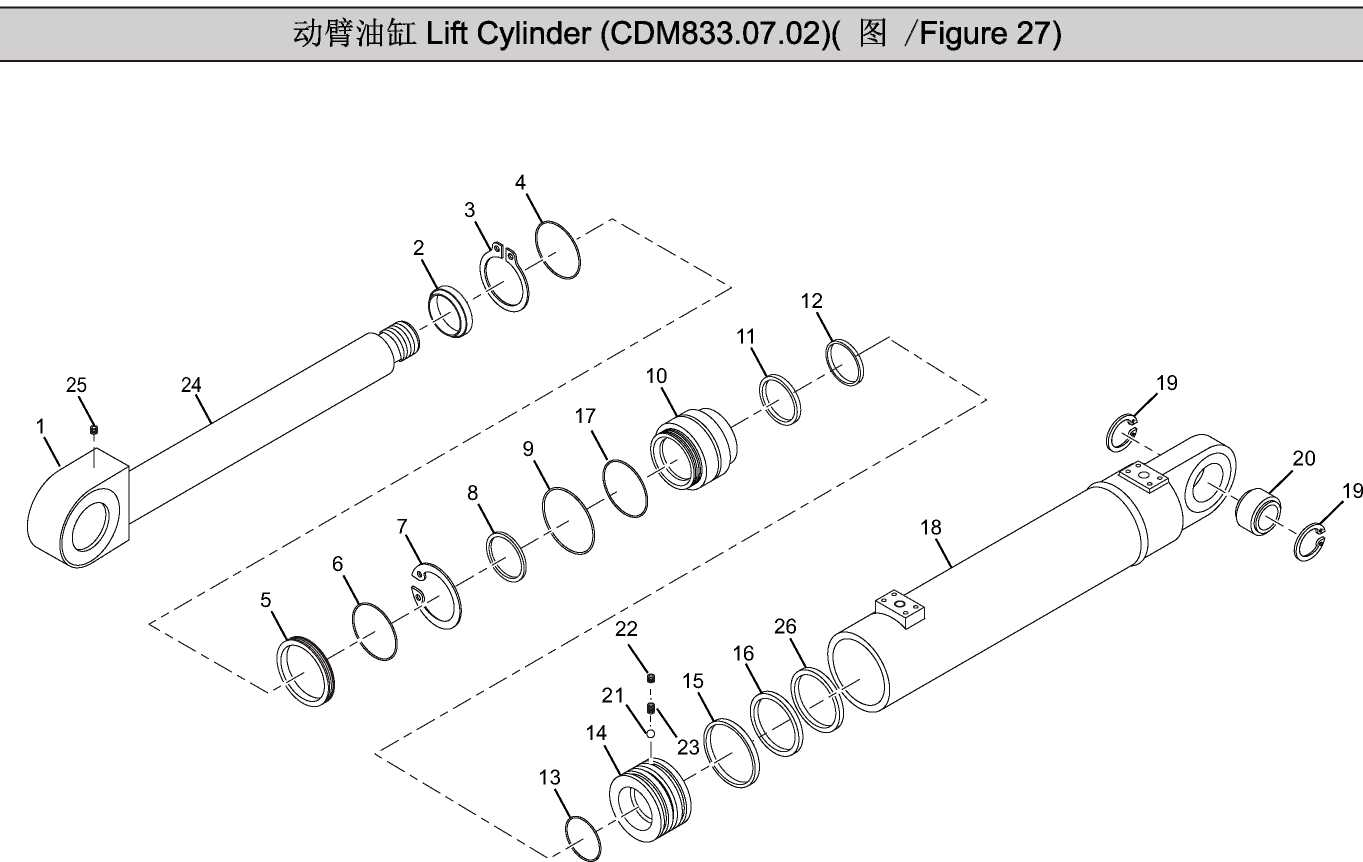

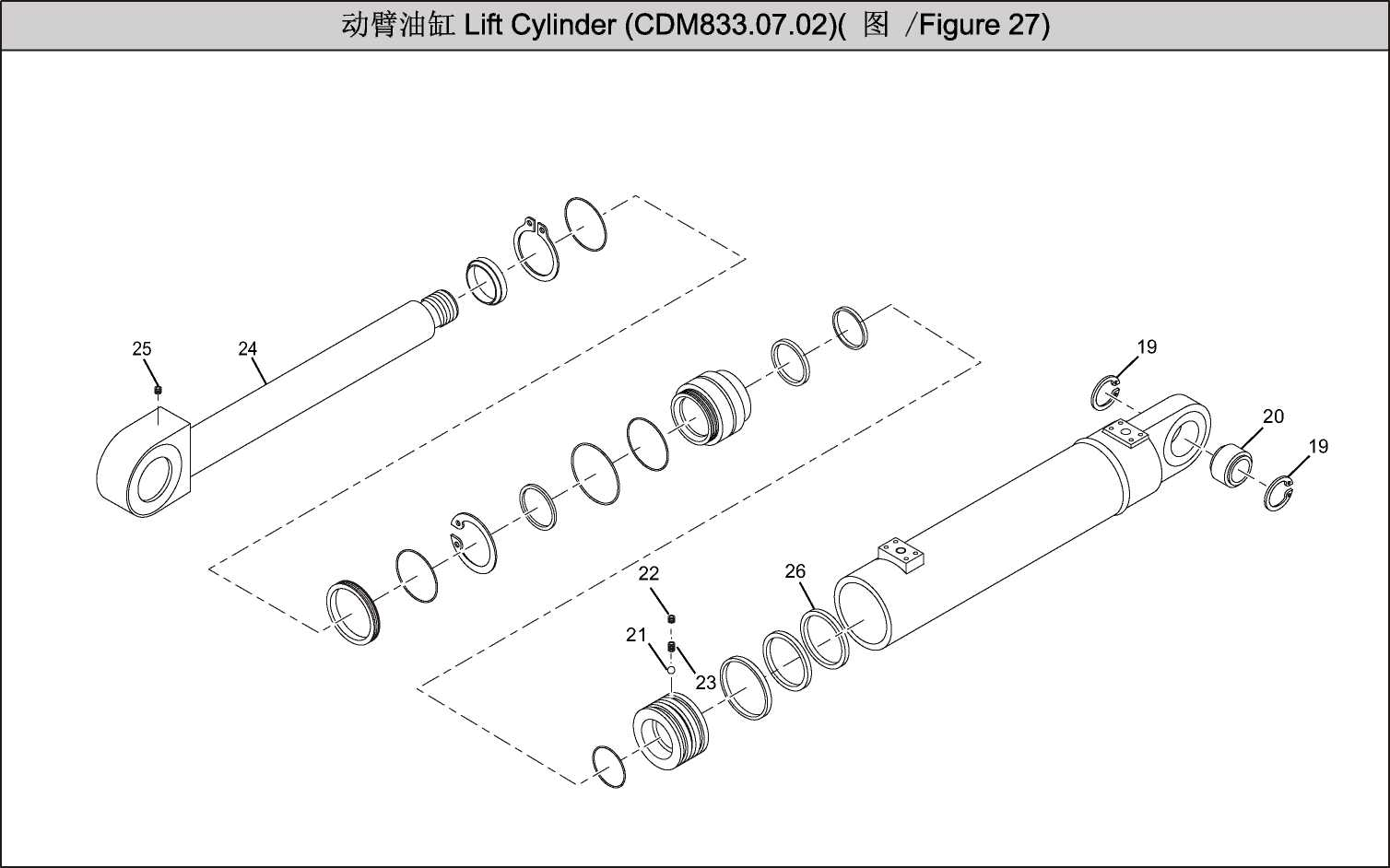

LiftCylinder



Item

Parts number

Part Description

Specification

Qty

Remarks

1

36008240170

拉杆头

Pull rod head



1

ZL30-720001B-Z

2

56193000901

防尘圈

Dustproofring

70 x 84 x8

1

AF7016Z5071

3

51453640107

轴用弹性挡圈

Spring sprag for shaft

105

1

Gb894

4

56900000906

0形圈

O-ring

98.02 x 3.53

1

AS568

5

36608080030

Ring



1

ZL30-720005B

6

56900005206

0形圈

O-ring

117.07 x 3.53

1

AS568

7

36608110050

弹簧挡圈

Spring sprag



1

ZL30-720006

8

56187001901

轴用密封圈

Seal ring for shaft

70 x 85 x 12.5

1

BS 7085 P5008

9

56900005706

0形圈

O-ring

113.67 x 5.33

1

AS568

10

36608030030

导向套

Guide sleeve



1

CDM30-720003

11

56188003702

轴用阶梯圈

Ladder ring for shaft

70 x 85.5 x 6.3

1

BR070A 00601

12

56199002601

支承环

Bearing ring

70 x 75 x 9.7

2

FR7005Q5029

13

56900004106

0形圈

O-ring

69.52 x 2.62

1

AS568

14

36608020090

活塞

Piston



1

ZL30-720004C

15

56199000801

支承环

Bearing ring

120 x 125 x 15

2

FRC052Q5029

16

56189000601

活塞密封圈

Seal ring for piston

125Ю8

1

0K0125 00701

17

56200000601

挡圈

Sprag

125 x 116 x 6.2

1



18

36608010120

缸体

Cylinder body



1

ZL30-721000C

19

51451520107

孔用弹性挡圈

Spring ring for hole

75

2

GB893

20

52823000101

关节轴承

Joint bearing

GE50ES-C3

1

JB/T8879

21

52900000402

钢球S

Steel ball S

Ф8

1

GB/T 308

22

51106231607

内六角平端紧定螺钉

Hollow-head setscrew

M12x1〇

1

GB/T 77

23

51106231907

内六角平端紧定螺钉

Hollow-head setscrew

M12x16

1

GB/T 77

24

36608040890

活塞杆

Piston shaft sleeve



1

ZL30-720002B

25

51108221907

内六角平端紧定螺钉

Hollow-head setscrew

M1〇x16

1

GB/T79

26

51200000601

纳污环

Ring

125x117x6.2

1




19

51451520107

孔用弹性挡圈

Spring ring for hole

75

2

GB893

20

52823000101

关节轴承

Joint bearing

GE50ES-C3

1

JB/T8879

21

52900000402

钢球S

Steel ball S

Ф8

1

GB/T 308

22

51106231607

内六角平端紧定螺钉

Hollow-head setscrew

M12x1〇

1

GB/T 77

23

51106231907

内六角平端紧定螺钉

Hollow-head setscrew

M12x16

1

GB/T 77

24

36608040890

活塞杆

Piston shaft sleeve



1

ZL30-720002B

25

51108221907

内六角平端紧定螺钉

Hollow-head setscrew

M1〇x16

1

GB/T79

26

51200000601

纳污环

Ring

125x117x6.2

1
