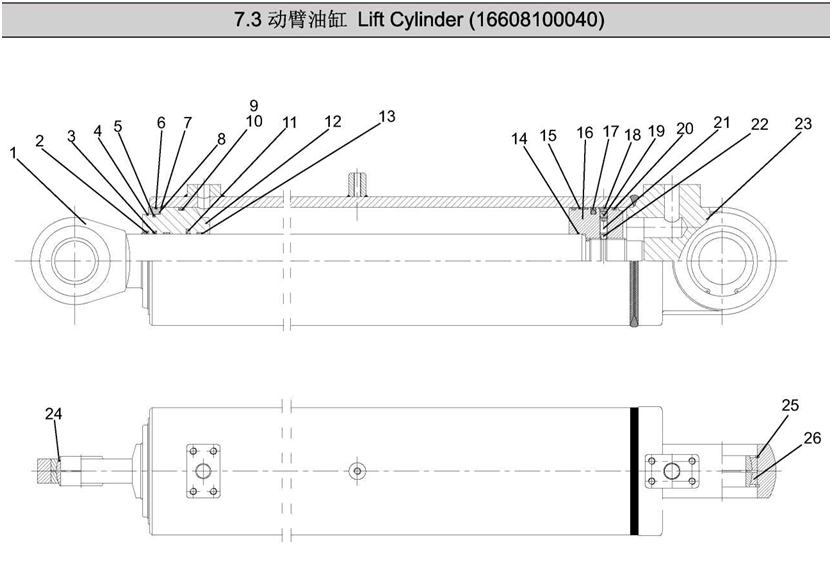

LiftCylinder

LiftCylinder

Item

Coding

Part Description

Specification

Qty

Original NO./Remarks

1

36608040640

活塞杆

Piston rod

45

1

LG853.720001A

2

56185000801

防尘圈

Dust ring

80 x 90 x7

1

AY080AP5008

3

56187002101

轴用密封圈

Shaft seal ring

80 x 95 x 12.5

1

4

51453730107

挡圈

Circlip

140

1

GB/T894.1

5

56900004203

0形圈

O-ring

133.02 x2.62

1

AS568

6

56900005303

0形圈

O-ring

151.99 x 3.53

1

AS568

7

36608110030

弹簧挡圈

Spring circlip

1

ZL50D-720005A

8

36608080050

环

Ring

45

1

ZL50D-720004B

9

56900005903

0形圈

O-ring

148.59 x 5.33

1

AS568

10

56192001501

挡圈

O-ring circlip

151.3x160x1.5

1

11

56188001002

缓冲圈

Bumper ring

80 x 95.5 x 6.3

1

12

36608030370

导向套

Guide sleeve

1

ZL50D-720003D

13

56199003001

支承环

Support ring

80 x 85 x 9.7

2

14

56900004803

0形圈

O-ring

78.97 x 3.53

1

AS568

15

56199001203

支承环

Support ring

155 x 160 x 15

1

16

36608020520

活塞

Piston

45

1

LG853.720002

17

56189001101

活塞密封圈

Piston seal ring

160 x 139 x8

1

18

56199001201

支承环

Support ring

155 x 160 x 15

1

19

51106231607

螺钉

Screw

M12x1〇

1

GB/T77

20

56200001001

纳污环

Dirt accumulating ring

160 x 152 x 6.2

2

21

51106233007

螺钉

Screw

M12 x 28

1

GB/T77

22

52900000402

钢球

Steel ball

8

1

GB/T308

23

36608010340

缸体

Cylinder body

1

LG853.721000B-Z

24

52555000501

关节轴承

Joint bearing

GE60ES-C3

1

JB/T8879

25

51451640107

挡圈

Circlip

105

1

GB/T893.1

26

52555000301

关节轴承

Joint bearing

GE70ES-C3

1

JB/T8879
