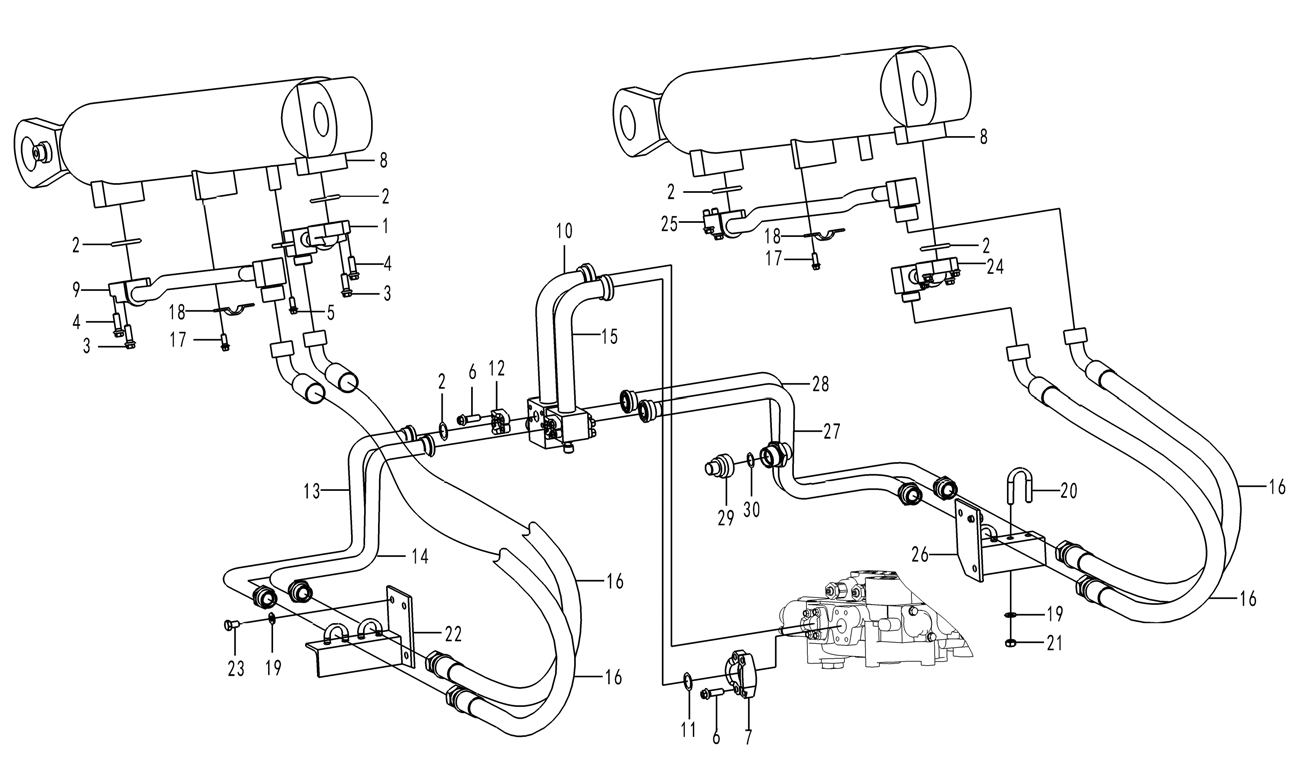

Lifting cylinder assembly LG936L

Key Part No.   Descrption Spare parts Y/N QTY

2

4030000279

O形圈GB3452.1-25.0*3.55G

O-ring

Y

8

3

4011000309

螺栓GB16674-M10*50EpZn-8.8

Bolt

Y

8

4

4011000164

螺栓GB16674-M10*35EpZn-8.8

Bolt

Y

8

5

4011000447

螺栓GB16674-M10*20EpZn-8.8

Bolt

Y

2

6

4011000475

螺栓GB16674-M10*30EpZn-8.8

Bolt

Y

24

7

4041000027

分体法兰LGB117-312551

Flange half

Y

2

8

4120000867

动臂油缸HSGF-125*70*771-1240

Lifting cylinder

N

2

9

29130004131

右动臂小腔钢管

Pipe

Y

1

10

29130008301

动臂联小腔三通钢管

Pipe

Y

1

11

4030000029

O形圈GB3452.1-37.5*3.55G

O-ring

Y

2

12

4041000137

分体法兰LGB117-306400

Flange half

Y

4

13

29130008311

阀至左动臂缸小腔钢管

Pipe

Y

1

14

29130008321

阀至左动臂缸大腔钢管

Pipe

Y

1

15

29130008351

动臂联大腔三通钢管

Pipe

Y

1

16

29130013331

动臂缸胶管

Hose assembly

Y

4

17

4011000458

螺栓GB16674-M8*20EpZn-8.8

Bolt

Y

4

18

29130004081

管夹

Clamp

Y

2

19

4015000162

垫圈GB97.1-10EpZn-300HV

Washer

Y

14

20

4011000490

U形螺栓JB/ZQ4321-25Zn-Q235A.F

U-bolt

Y

4

21

4013000007

螺母GB6170-M10EpZn-8

Nut

Y

8

22

29130004091

固定支架A

Bracket

Y

1

24

29130004071

左动臂缸大腔钢管

Pipe

Y

1

25

29130004021

左动臂小腔钢管

Pipe

Y

1

26

29130004111

固定支架B

Bracket

Y

1

27

29130008331

阀至右动臂缸大腔钢管

Pipe

Y

1

28

29130008341

阀至右动臂缸小腔钢管

Pipe

Y

1

29

4041000774

螺塞LGB135-01422

Plug

Y

2

30

4041000767

O形圈LGB168-11124

O-ring

Y

2
