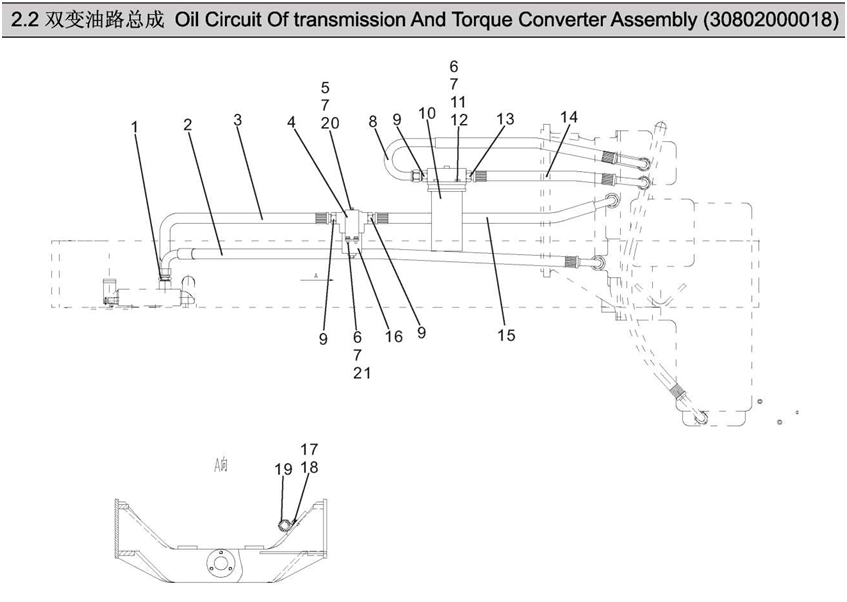

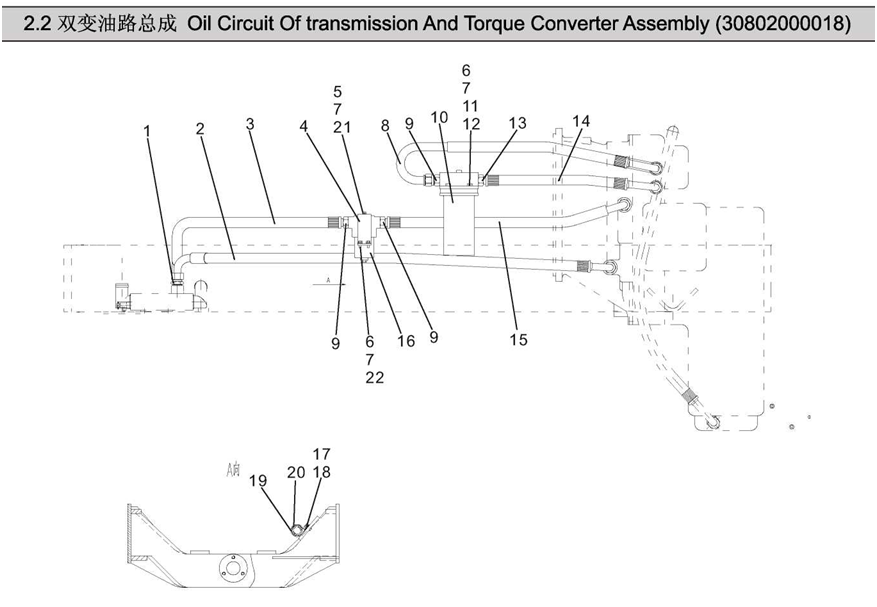

OilCircuitOftransmissionAndTorqueConverterAssembly

OilCircuitOftransmissionAndTorqueConverterAssembly

Item

Coding

Part Description

Specification

Qty

Original NO./Remarks

1

17601001240

过渡接头

Transition connector



2

L1CH-36-27D

2

17272000163

胶管总成

Hose assembly



1

20491-36T*1W16*1930/270。

3

17272000133

胶管总成

Hose assembly



1

20411-36T/20491-36T*1W16*1180+RC

4

30802100070

粗滤器支架

Filter bracket



1

LG853.02.02-006

5

51204091514

螺栓

Bolt

M8 x 45-8.8

2

GB/T5783

6

51421090115

垫圈

Washer

8

10

GB/T97.1

7

51401090107

垫圈

Washer

8

8

GB/T93

8

17272003956

胶管总成

Hose assembly



1

20401-36Ta180°/20491-36T*1W16*1080/270。

9

17601000018

过渡接头

Transition connector



3

L1CH-36-30D

10

60308000026

滤油器

Filter



1

LG853.02.02.01/YL-98-00

11

51204091214

螺栓

Bolt

M8 x 30-8.8

4

GB/T5783

12

51307000919

螺母

Nut

M8-8

4

GB/T6170

13

17601000256

过渡接头

Transition connector



1

L1CH-27-22

14

17272004028

胶管总成

Hose assembly



1

20411-27/20491-36T*1W16*750

15

17272004132

胶管总成

Hose assembly



1

20411-36T/20491-36T*1W16*1100

16

60308000072

粗滤器

Filter

YL-139-00

1

LG853.02.02.03/YL-139A-00

17

51401100107

垫圈

Washer

10

1

GB/T93

18

51204101014

螺栓

Bolt

M1〇x20-8.8

1

GB/T5783

19

60911011022

固定式卡箍

Lock hoop



1

PCD140/25

20

51420090119

垫圈

Washer

8

2

GB/T96.1

21

51204091114

螺栓

Bolt

M8 x 25-8.8

2

GB/T5783
