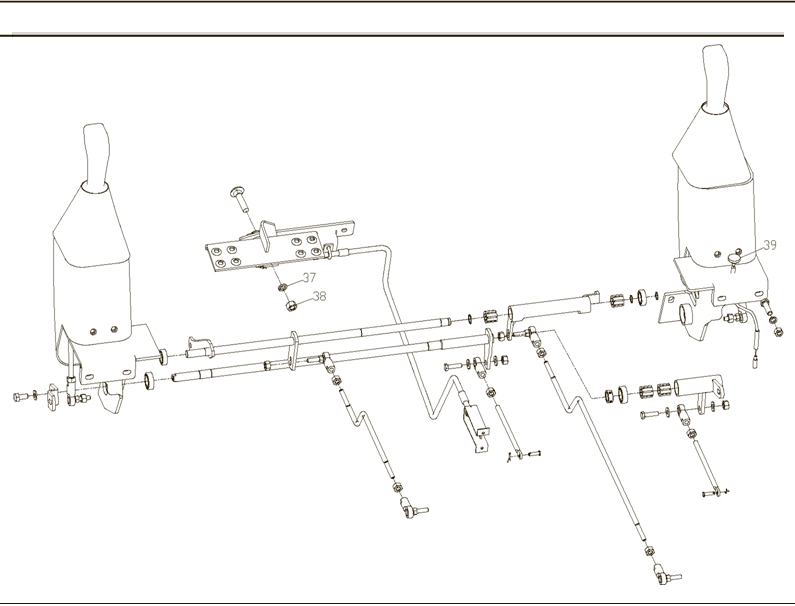

Operation System

Opeartion System

Parts number

Part Description

Specification

Qty

Remarks

I

tem

1

LG308.05.01

Left operation system

1

2

LG308.05.02

Series pump rotating rod weldment

1

3

LG308.05-001

Pull plate Ⅰ

1

4

GB/T5783-2000

Bolt

M10X25

3

5

GB/T97.1-2002

Washer

10

7

6

LG308.05.03

Multiple valve rotating rod weldment

1

7

LG308.05-002

series pump rotating sheath

1

8

GB/T5801-2000

Bearing

NK 16/20

2

9

GB/T276-94

Bearing

6002-2Z

2

10

GB/T894.1-86

Sprag

15

2

11

LG308.05-003

Sprag

1

12

GB/T80-2000

Screw

M5X16

2

13

GB/T276-94

Bearing

6003-2Z

2

14

LG308.05-004

Multiple valve rotating sheath

1

15

GB/T5801-2000

Bearing

NK 19/20

2

16

LG308.05.06

Joint Bearing

SQ8-RS

2

17

GB/T889.1-2000

Nut

M8

4

18

LG307.05-001

Left pull rod

1

LG307

LG308.05-005

LG308/LG312

19

LG308.05.07

Joint bearing levorotation

2

20

GB/T6170-2000

Nut

M8-LH

2

21

LG307.05-002

Right pull rod

1

LG307

LG308.05-006

LG308/LG312

22

LG308.05-009

Pin shaft

2×16

2

23

GB/T91-2000

Cotter pin

2

24

LG308.05-007

Conneting rod Ⅰ

1

25

LG308.05-008

Conneting rod Ⅱ

M10×35

1

26

GB/T5783-2000

Bolt

M10

4

27

GB/T6170-2000

Nut

10

6

28

GB/T93-1987

Washer

6

29

LG308.05.05

Foot operating assembly

16

1

30

GB/T894.1-86

Sprag

1

31

LG308.05.04

Rightoperations assembly

1

32

LG308.05.08

Inner thread rod joint bearing

M8×30

2

33

GB/T5783-2000

Bolt

8

2

34

GB/T93-1987

Washer

8

2

35

GB/T97.1-2002

Washer

8

2

36

GB/T794A

Bolt

M12×60

1

37

GB/T93-1987

Washer

12

1

38

GB/T6170-2000

Nut

M12

1

39

LG308.05.10

Little Flexible shaft assembly

1
