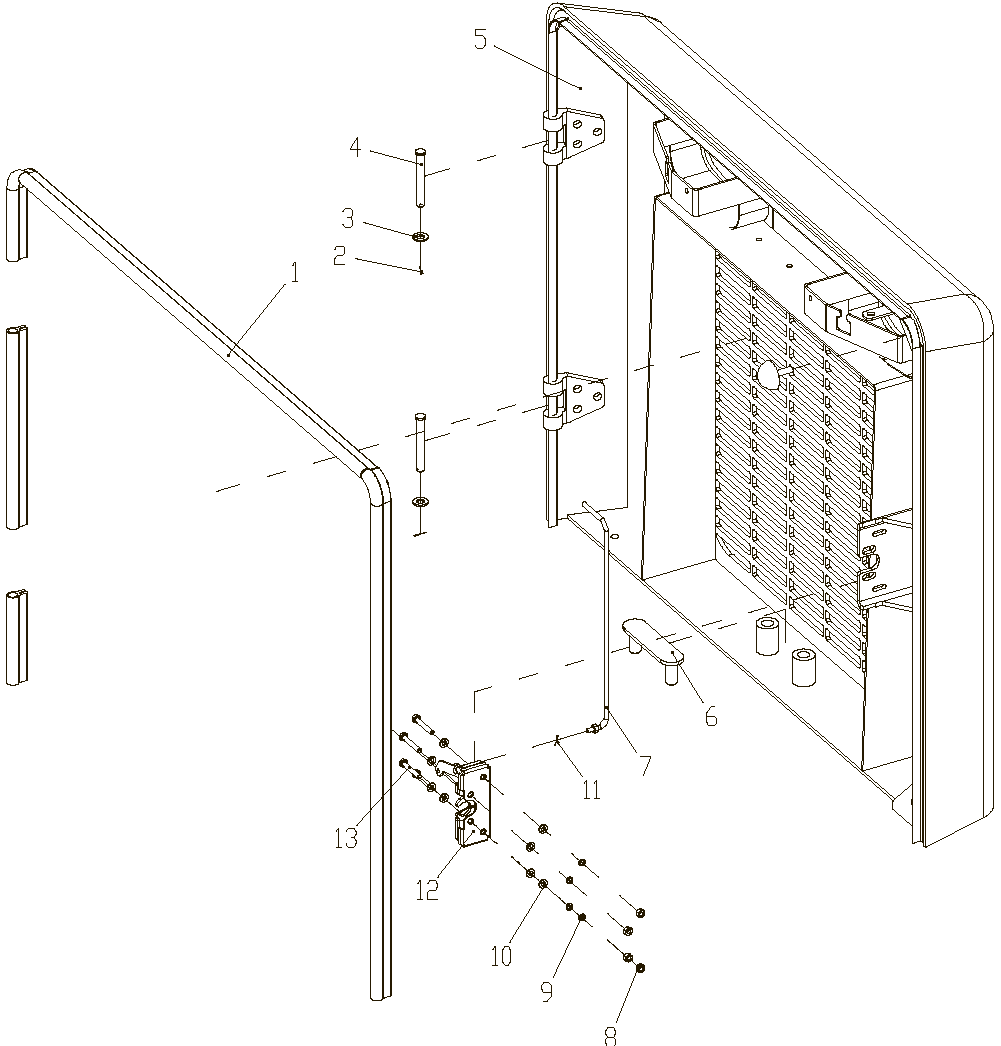

Rear Door Assembly



Parts number

Part Description

Specification

Qty

Remarks

I

tem

1

H009

1

Rear door tape

H009 [:t2500

1



2

GB/T91



Cotter

3.2×16

2



3

GB/T97.1

10

Washer

10

2



4

GB/T882 B



Pin shaft

10×80

2



5

LG308.13.02.04



Rear door weldment



1



6

LG308.13.02.09



Rear door limit weldment



1



7

LG308.13.02.08



Rear door lock rod weldment



1



8

GB/T6170

M6

Nut



4



9

GB/T97.1

6

Washer



8



10

GB/T93

6

Washer



4



11

GB/T91



Cotter

1.6×10

1



12

LG308.13.02.06



Rear door lock



1



13

GB/T5783



Bolt

M6×45

4
