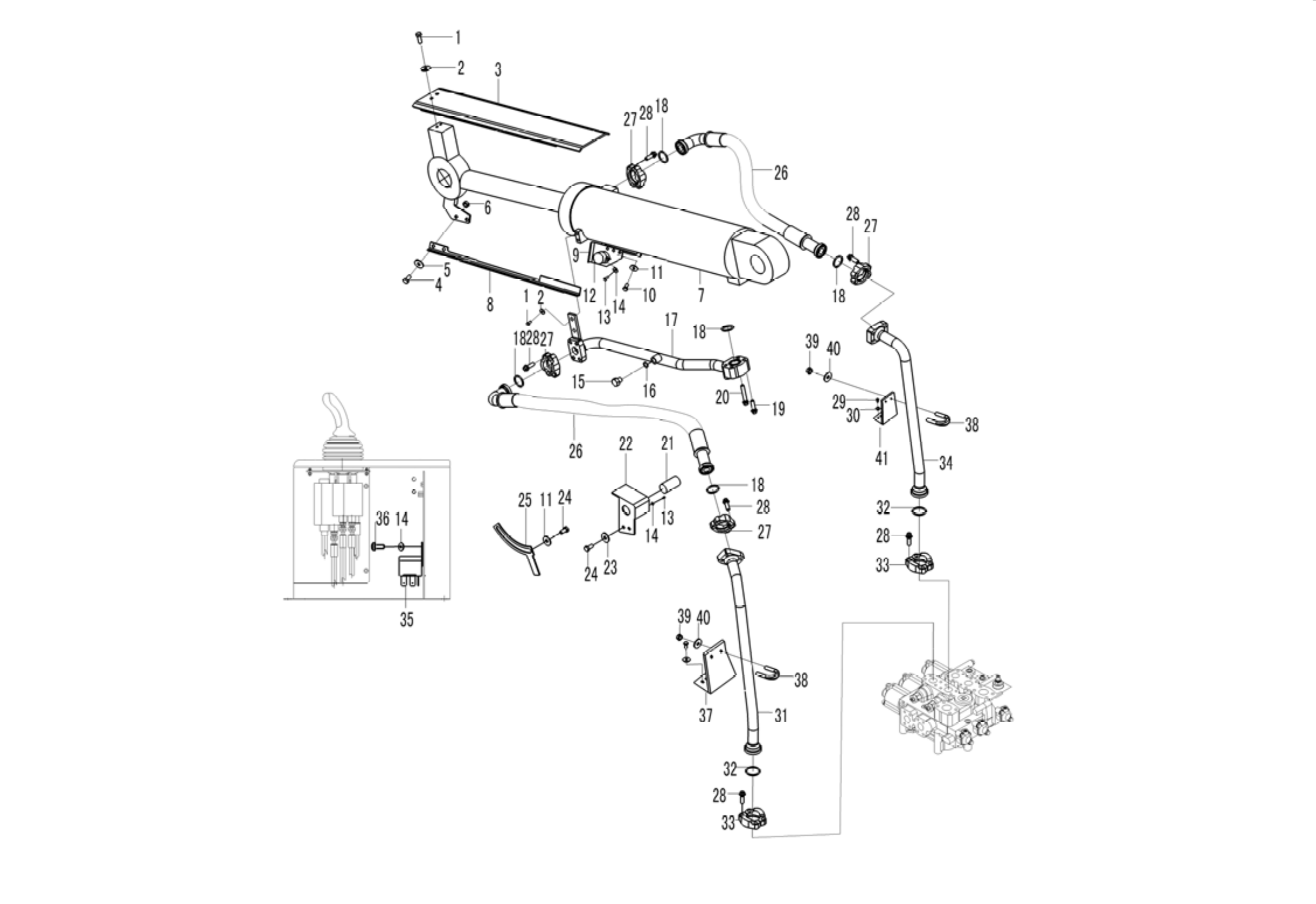

Tilt cylinder assembly LG936L

2

4015000197

垫圈GB96.1-10EpZn-300HV

Washer

Y

4

3

29140009881

放平护板

Indicator plate

Y

1

4

4011000191

螺栓GB5783-M14*35EpZn-8.8

Bolt

Y

2

5

4015000177

垫圈GB97.1-14EpZn-300HV

Washer

Y

2

6

4013000013

螺母GB6170-M14EpZn-8

Nut

Y

2

7

4120001083

转斗油缸HSGF-140*80*502-952P

Tilt cylinder

Y

1

8

29140011711

转斗指示板

Indicator plate

Y

1

9

29370015701

放平接近开关支架

Bracket

Y

1

10

4011000089

螺栓GB5783-M12*30EpZn-8.8

Bolt

Y

2

11

4015000186

垫圈GB96.1-12EpZn-300HV

Washer

Y

4

12

4130000882

接近开关E55-D15B1

Position switch

Y

1

13

4014000042

螺钉GB818-M5*20EpZn-4.8

Screw

Y

4

14

4015000110

垫圈GB97.1-5EpZn-300HV

Washer

Y

6

15

4041000774

螺塞LGB135-01422

Plug

Y

1

16

4041000767

O形圈LGB168-11124

O-ring

Y

1

17

29140008441

转斗缸大腔钢管

Pipe

Y

1

18

4030000026

O形圈GB3452.1-32.5*3.55G

O-ring

Y

5

19

4011000309

螺栓GB16674-M10*50EpZn-8.8

Bolt

Y

2

20

4011000473

螺栓GB16674-M10*55EpZn-8.8

Bolt

Y

2

21

4130000883

接近开关E55-D15B1/08

Position switch

Y

1

22

29370015681

限高接近开关支架

Bracket

Y

1

24

4011000087

螺栓GB5783-M12*20EpZn-8.8

Screw

Y

4

25

29140007551

动臂指示板

Indicator plate

Y

1

26

4041000703

软管LGB106-010120

Hose assembly

Y

2

27

4041000043

分体法兰LGB117-310490

Flange half

Y

4

28

4011000475

螺栓GB16674-M10*30EpZn-8.8

Bolt

Y

24

29

4011000105

螺栓GB5783-M8*20EpZn-8.8

Bolt

Y

4

30

4015000256

垫圈GB96.1-8EpZn-300HV

Washer

Y

4

31

29140008411

转斗联大腔钢管

Pipe

Y

1

32

4030000029

O形圈GB3452.1-37.5*3.55G

O-ring

Y

2

33

4041000027

分体法兰LGB117-312551

Flange half

Y

2

34

29140008401

转斗联小腔钢管

Pipe

Y

1

35

4130000869

中间继电器024-1Z6GD2

Relay

Y

2

36

4014000048

螺钉GB818-M5*12EpZn-4.8

Screw

Y

2

37

29140004061

固定支架A

Bracket

Y

1

38

4041000958

U形螺栓LGB159-03040

U-bolt

Y

2

39

4013000007

螺母GB6170-M10EpZn-8

Nut

Y

4

40

4015000162

垫圈GB97.1-10EpZn-300HV

Washer

Y

4

41

29140004071

固定支架B

Bracket

Y

1
