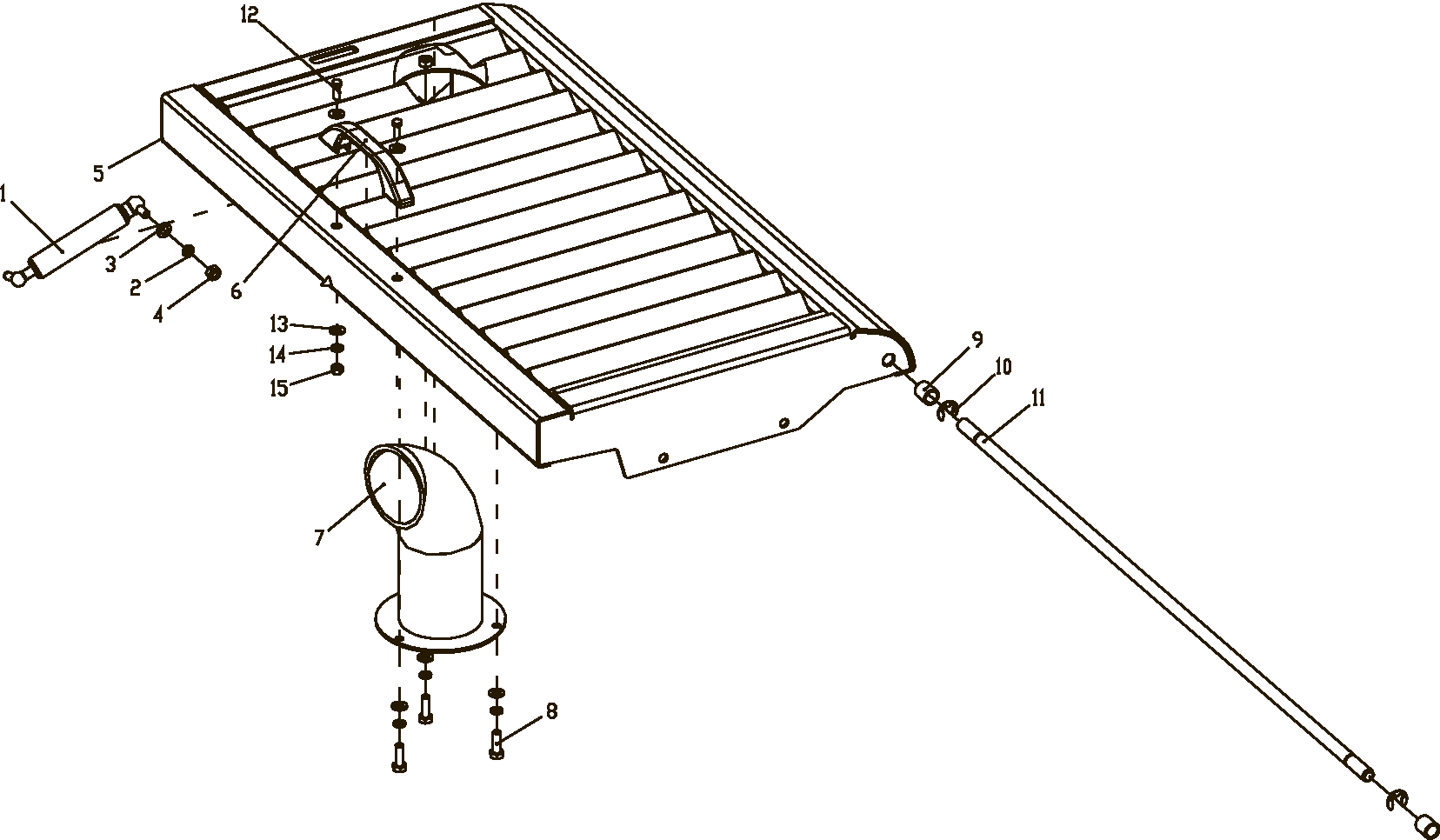

Upper Hood Assembly



Parts number

Part Description

Specification

Qty

Remarks

I

tem

1

LG308.13.01.01



Upper hood assembly



1



2

GB/T93

8

Washer



3



3

GB/T97.1

8

Washer



3



4

GB/T6170

M8

Nut



2



5

LG307.13.01.01



Upper hood weldment



1

LG307



LG308.13.01.03



LG308/LG312

6

LG520A3.60.03



Upper hood knob



1



7

LG308.13.01.02



Air outlet pipe weldment



1



8

GB/T5783

M8x16

Bolt



3



9

LG308.13.01-004



Limit position shaft bush



2



10

GB/T896

12

Washer



2



11

LG308.13.01-001



Rotating shaft



1



12

GB/T5783

M6x20

Bolt



2



13

GB/T96.1

6

Washer



4



14

GB/T93

6

Washer



2



15

GB/T6170

M6

Nut



2
